12.4 Digital inputs IN1 to 7
A maximum of seven digital inputs (IN 1 to 7) are available for connecting to potential-free con-
tacts with a common ground.

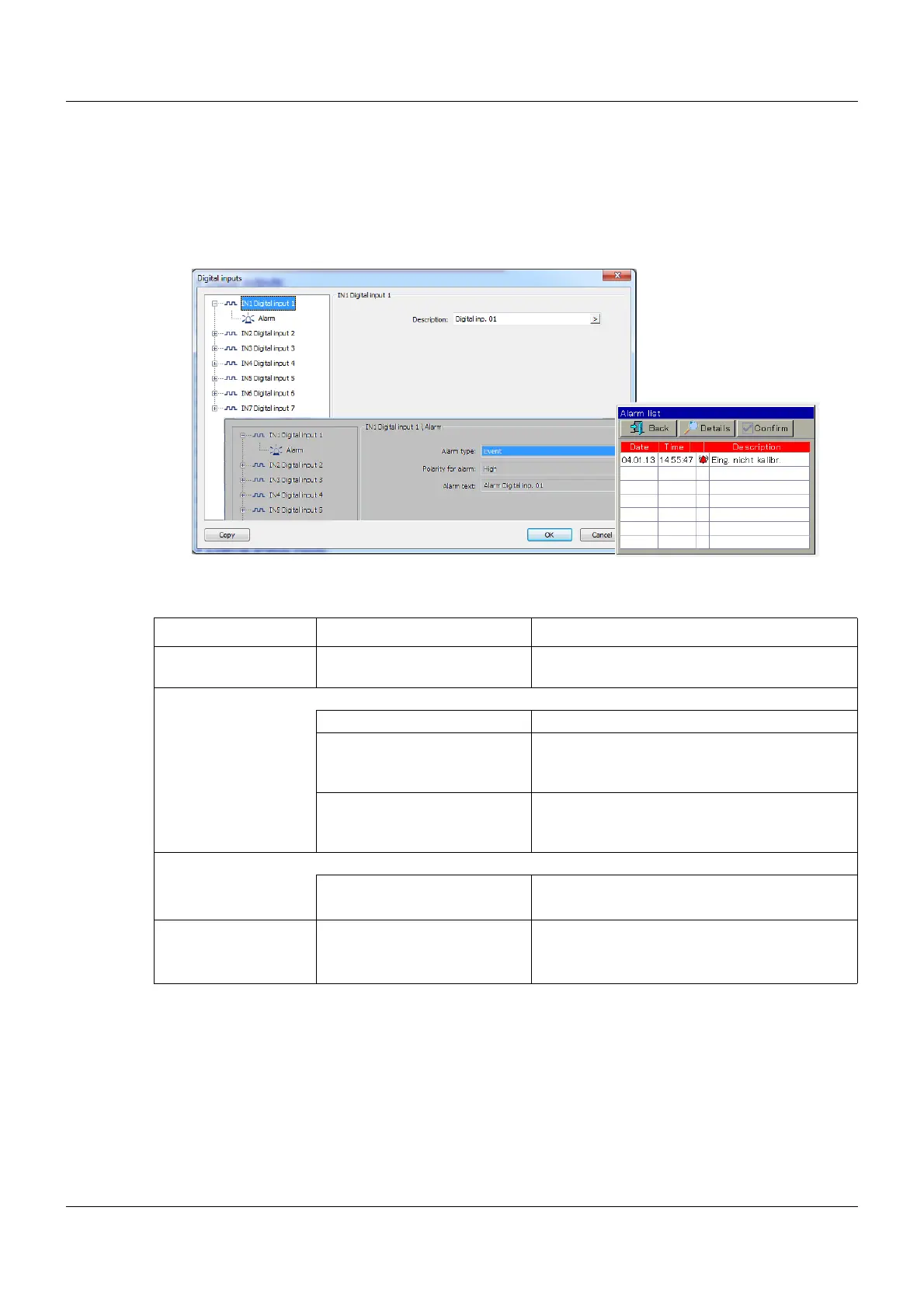

Setup dialog box
Parameters
Alarm active at
An alarm is only displayed for as long as the configured signal level (closed contact) is present.
If the contact is opened, the alarm entry disappears automatically.
Alarm text
The setup program is required to view and edit the texts.
Parameter Selection/settings Description
Channel description Digital input 01 (15 characters) of editable text that indicates,
for example, what the signal will be used for.
Alarm type
Off Alarm switched off.
Alarm A message will be entered in the alarm list
depending on the signal level that has been
set.
Event A message will be entered in the event list
depending on the signal level that has been
set.
Polarity for alarm Signal level that triggers an alarm or an event.
High Contact closed: high (logic "1")
(setup only) Low Contact open: low (logic "0")
Alarm text (only
setup)
Alarm Digital inp. 01 20 characters of editable text which is entered
into the alarm or event list.
