12 Configuration
116
12.10.6 Colors, designations in controller screen 1 to 4
The colors for controller screen 1 to 4 can be set using this function. The designations for the
setpoint value, actual value, output level, contact 1 and 2, and the associated signal sources
can also be set.

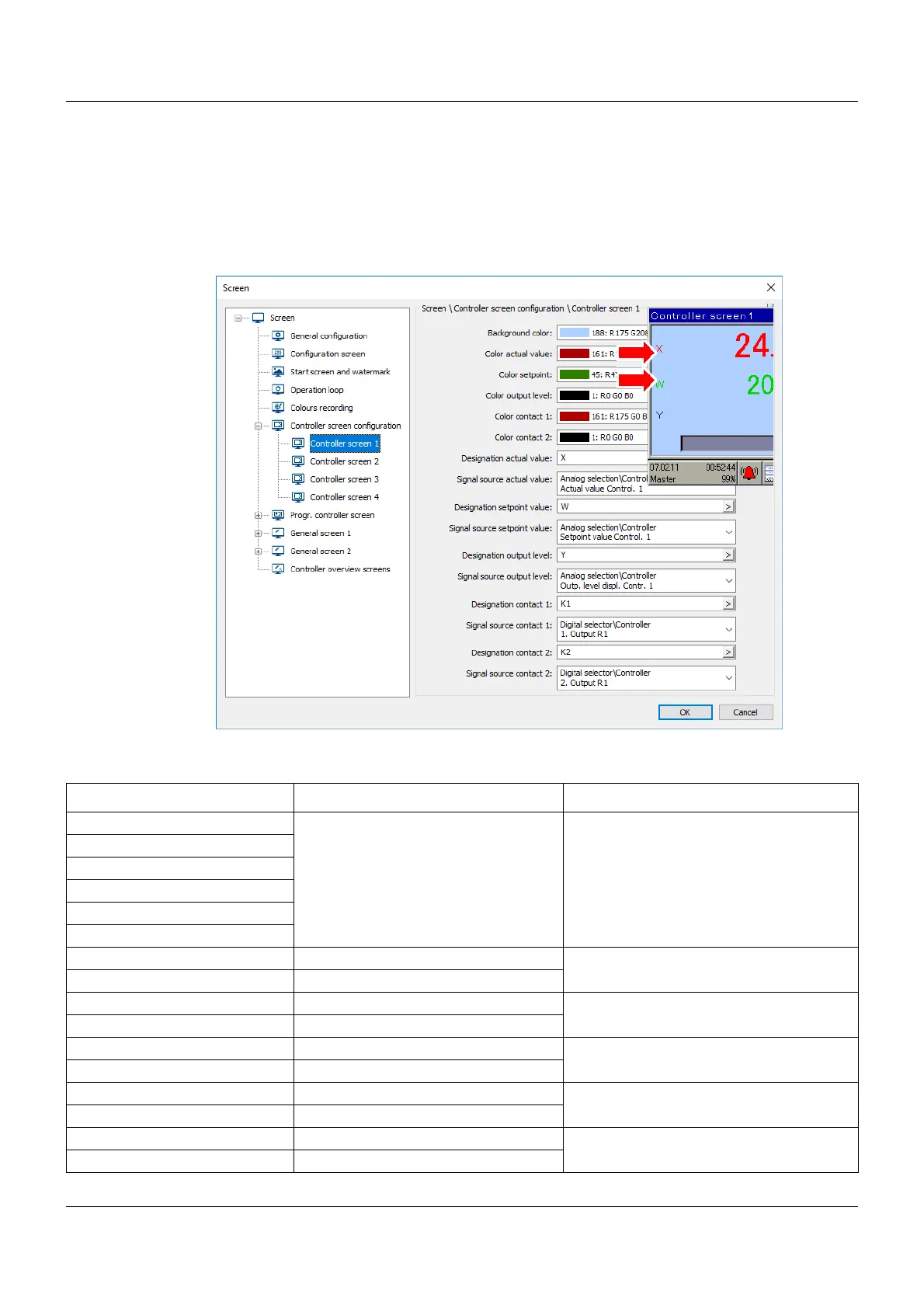

Setup dialog box
Parameters
Parameter Selection/settings Description
Background color RGB color selector
Color for actual value
Color for setpoint value
Color for output level
Color for heating contact
Color for cooling contact
Designation of actual value 15 characters Default setting: X, actual value of control-
ler 1
Signal source of actual value Signal from the analog selector
Designation of setpoint value 15 characters Default setting: W, setpoint value of con-
troller 1
Signal source of setpoint value Signal from the analog selector
Designation of output level 15 characters Default setting: Y, output level of control-
ler 1
Signal source of output level Signal from the analog selector
Designation of contact 1 15 characters Default setting: K1, 1st output R1
Signal source for contact 1 Signal from the digital selector
Designation of contact 2 15 characters Default setting: K2, 2nd output R1
Signal source for contact 2 Signal from the digital selector
