12 Configuration
12.5 Analog inputs IN8, IN9, IN10, IN11
The two analog inputs IN8 and IN9 are installed per default as universal measurement inputs
for RTD temperature probes, thermocouples, resistance transmitters/resistance potentiome-
ters, and standard signals. Two additional analog inputs, IN10 and IN11, can be retrofitted.

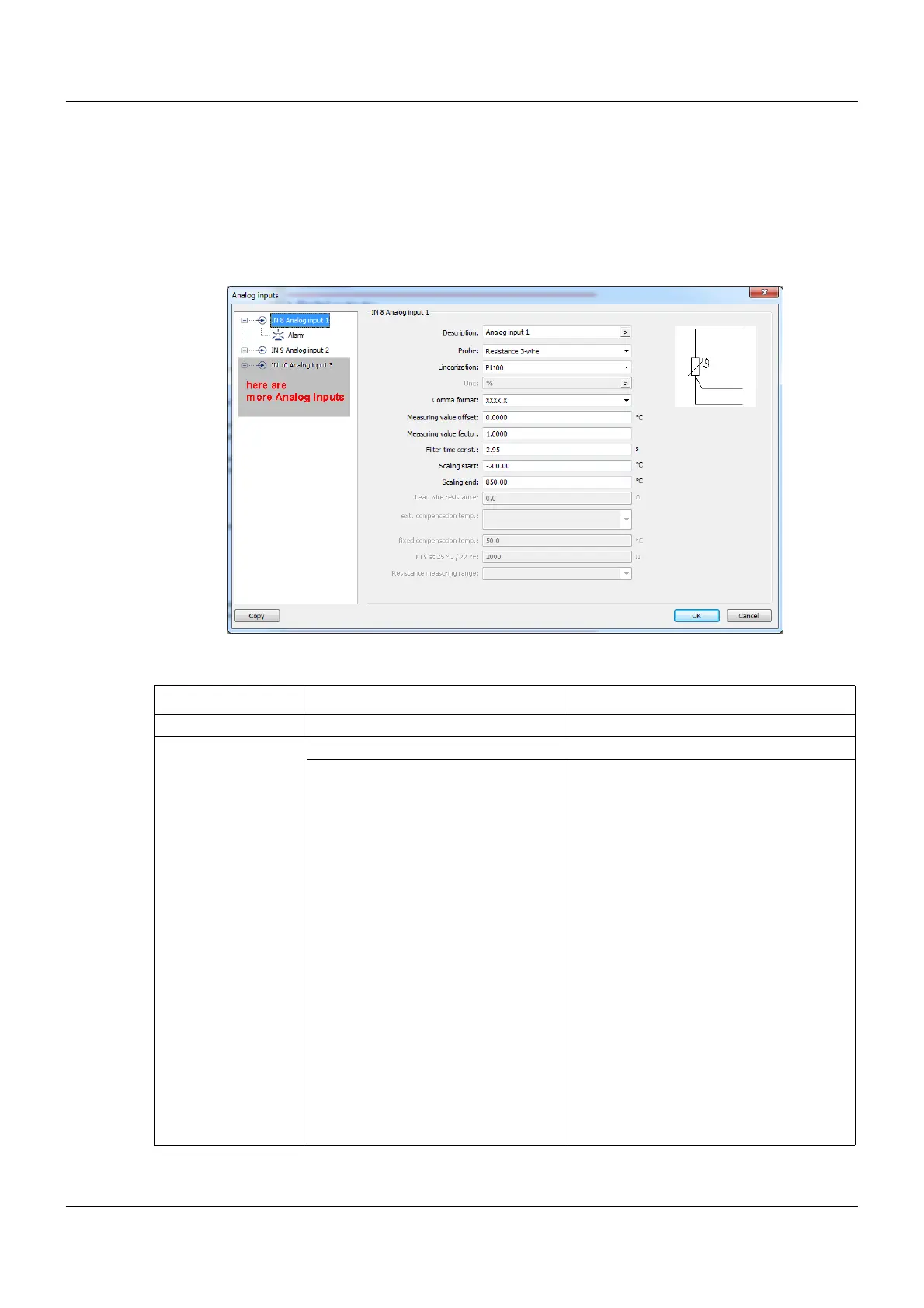

Setup dialog box
Parameters
Parameter Selection/settings Description
Channel description Analog input IN8, IN9, IN10, IN11 (15 characters) of editable text
Probe Selection of measuring probe for the relevant analog input
No function No sensor selected
Resistance 3-wire RTD temperature probe
in three-wire circuit
Resistance 2-wire RTD temperature probe
in two-wire circuit
Int. thermocouple Internal thermocouple
Cold junction temperature
Ext. thermocouple External thermocouple
Cold junction temperature
Thermocouple constant Thermocouple constant
Cold junction temperature
Resistance transmitter Resistance transmitter
0 to 20 mA Standard signal
0 to 10 V Standard signal
0 to 1 V Standard signal
0 to 100 mV Standard signal
4 to 20 mA Standard signal
2 to 10 V Standard signal
