133
12 Configuration

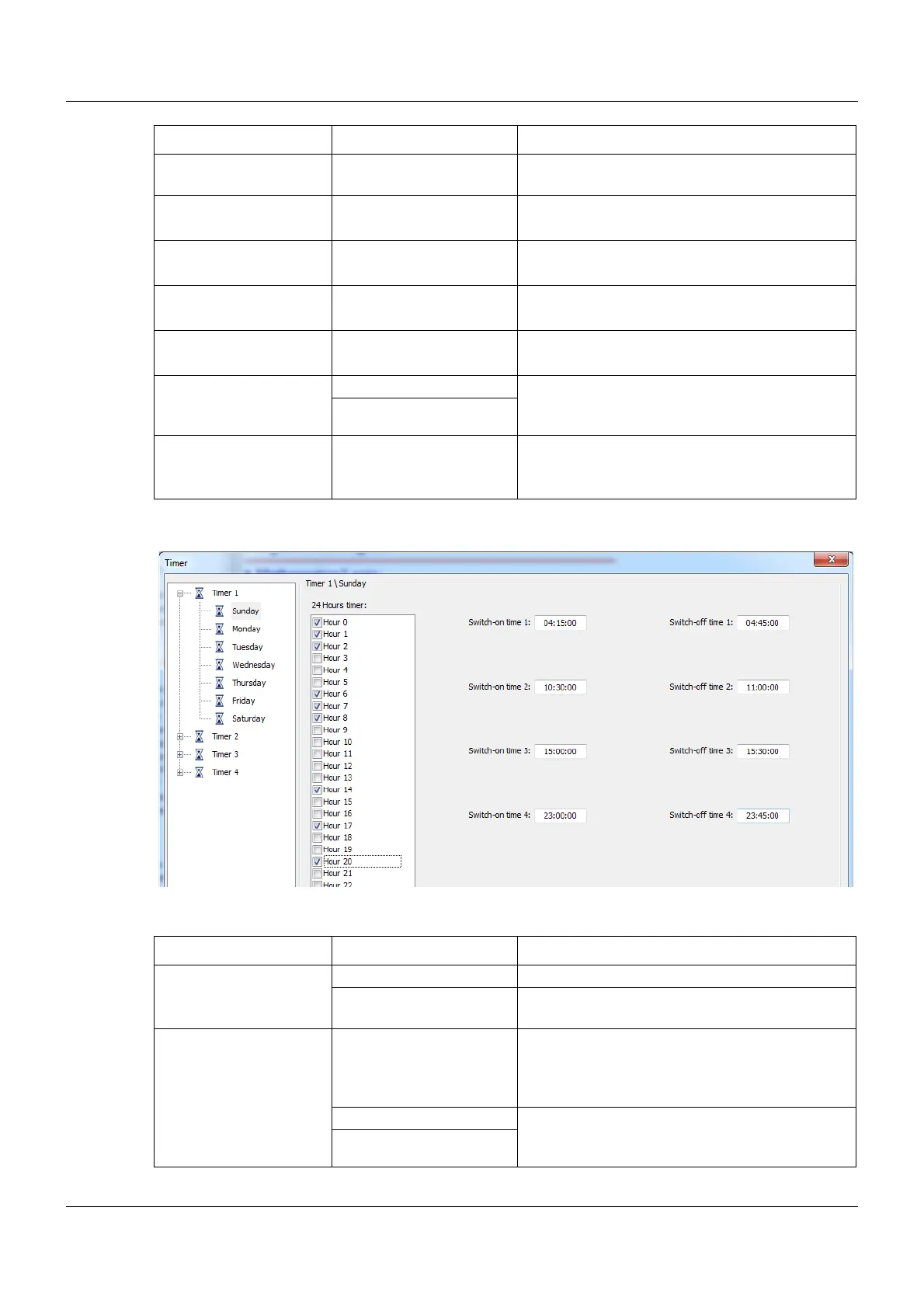

Setup dialog for week-time switch
Parameters
Acknowledgement sig-
nal
A timer alarm is acknowledged with this signal.
Start signal Digital selector The timer is started with this signal
No function
Cancel signal Digital selector The timer is canceled with this signal
No function
Halt signal Digital selector The timer is halted with this signal.
No function
Restart signal Digital selector
No function
Output signal High The signal level for the active timer is set here.
This signal is available in the digital selector for
further use.
Low
Additional timer func-
tions
Not selected (empty)
(⎫) Extension 1 Reserved functions for service
Parameter Selection/settings Description
Parameter Selection/settings Description
Function Inactive -
Control timer Week-time switch active, timer function grayed
out
Sunday Hours 0 to 24 (⎫) The period of time for which the week-time
switch should be active on this day can be
selected in hour units here by ticking the rele-
vant box ("High": logic level 1).
Switch-on time 1 to 4 4 additional switch times can be set here, for
example if the switch-on time period should be
less than a full hour.
Switch-off time 1 to 4
