Function

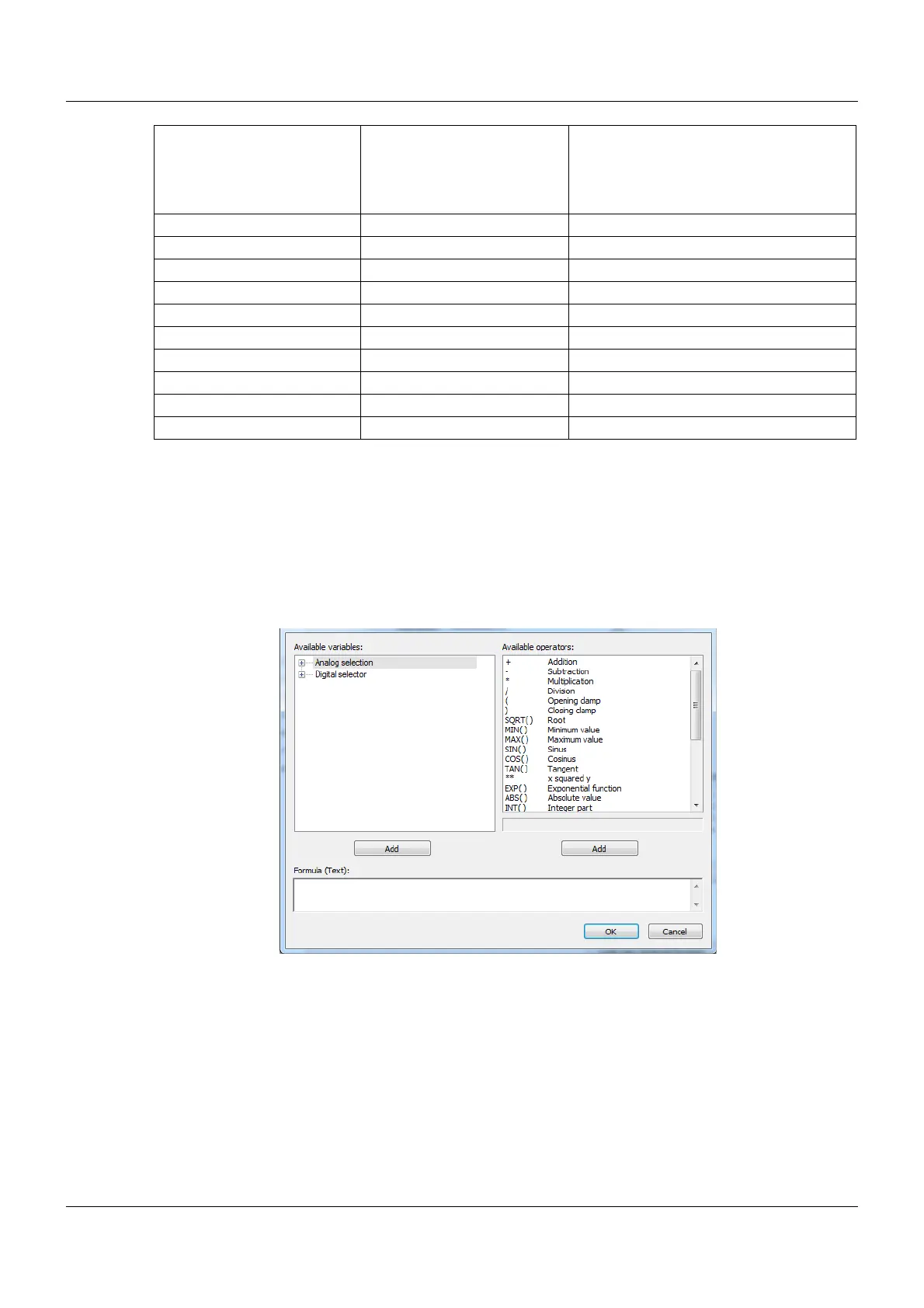

The math and logic functions are available if the "Math/logic" option in the setup program has
been activated.
Math formula, logic formula
Use the "Formula editor" button to open an editor that can be used to create formulae by se-
lecting variables and operators. Formulas can be entered freely in line with standard mathe-
matical rules. Any number of spaces may be used within the formula symbol string. Spaces are
not admissible in function designations, names of variables, or constants.
Linearization The mathematical calculation can be
linked with a (customer-specific) linear-
ization table.
Secure using power off
Measuring range start 0
Measuring range end 100.00
Variable a
Variable b
Unit %
Decimal place
Temperature
Additional math functions Reserved functions for service
Formula (text)
Parameter Selection/settings Description
