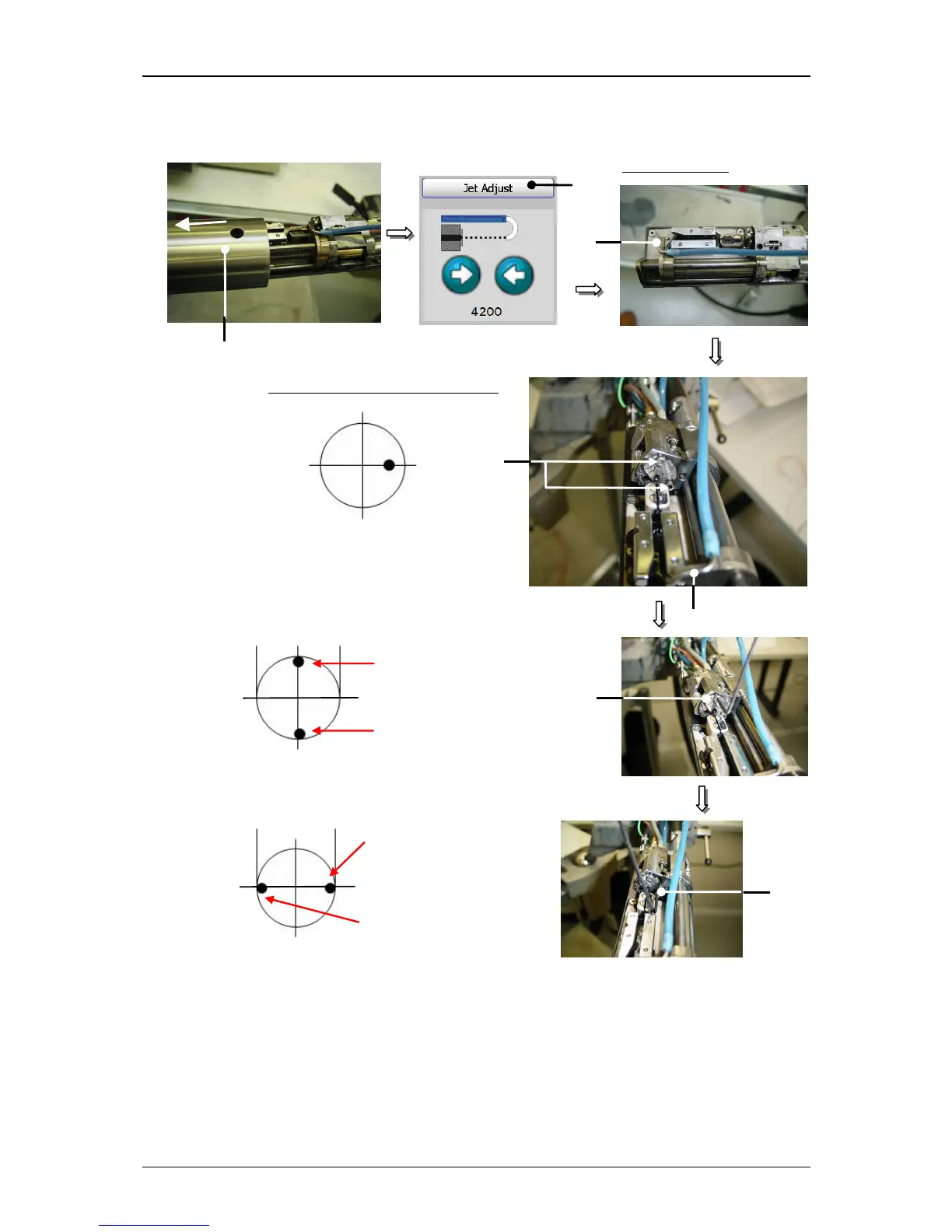

Figure 50
Jet adjustment (Step 2)
11 – Head cover 13.1 – Upper setting screw
12 – Button <Jet Adjust> 13.2 – Lateral setting screw
13 – Setting screw (2x) 14 – Gutter tube
Setting position
11
Gutter tube top edge
12
Setting position in the gutter tube
14
14
13.1
13
13.2
Gutter tube bottom edge
Right gutter tube angle
Left gutter tube angle
