Service work
5
Electrical enclosure
e3871184a
1

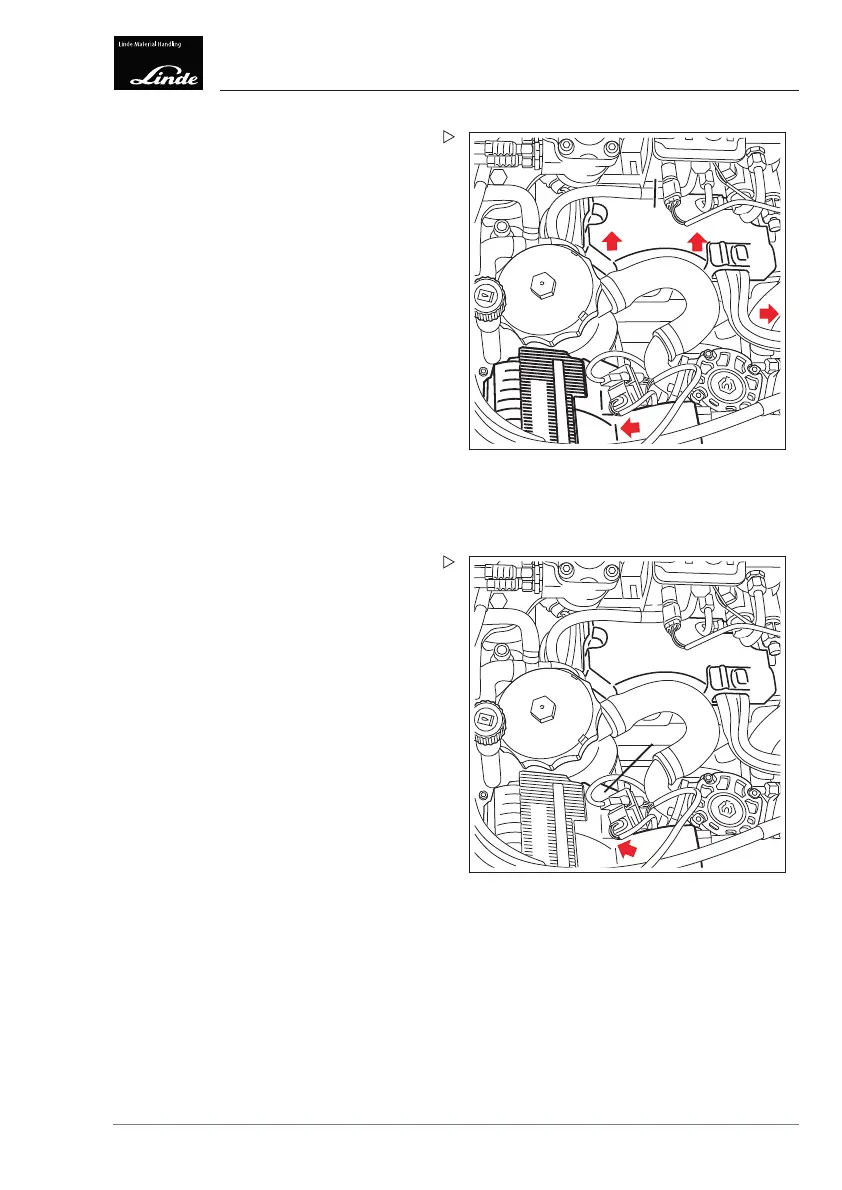

Cleaning the fans for the traction-motors
power module
The fans for cooling the power module for the
traction motors and the drive axle are located
under the cover (1) at the front of the control
compartment.
Switch off the truck.
Remove the rubber mat from the bottom
plate.
Unscrew the mounting screws from the
bottom plate.
Pull the plug out of the accelerator and put
the bottom plate to one side.
Remove cover (1).
Clean the fans (see arrows for positions)
with compressed air and/or cold cleaning
solvent.
2
e3871185
Cleaning the fan for the pump-motor
power module
The fan for cooling the power module for
the pump motor is located under the cover
(2) at the rear left-hand side of the control
compartment.
Remove cover (2).
Clean the fan (see arrow for position)
with compressed air and/or cold cleaning
solvent.
