5
Service work
Electrical enclosure
e3871135

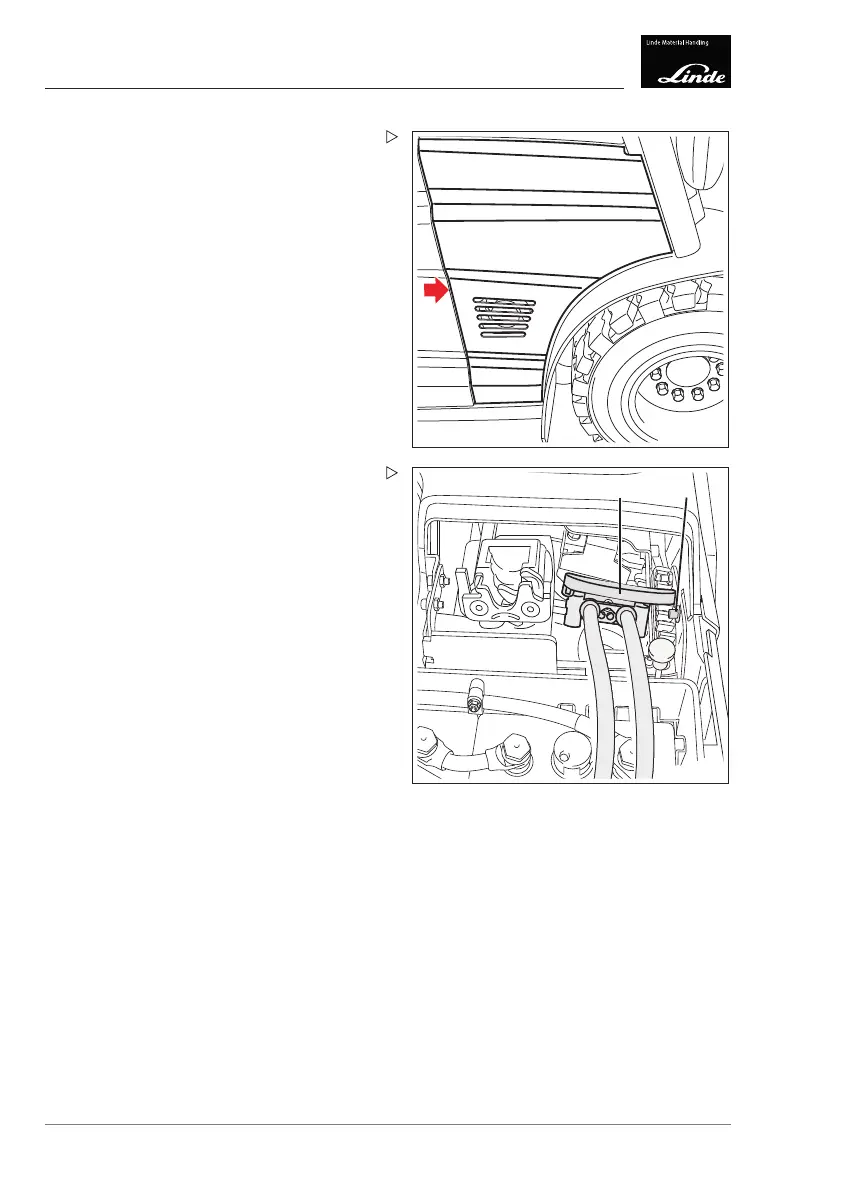

Cleaning the fan for the control compart-
ment
The fan for the control compartment is
mounted on the front right-hand side pan-
elling(seearrow).
1
e3871181
2
Unlock and fully op
en the battery hood.
Disconnect the battery female connector
(1) and the battery male connector.
Loosen and unscrew the mounting screw
(2) for the side panelling.
Lift and remove t
he side panelling including
the fan; when doi
ng so, pay attention to the
cable connectio
ntothefan.
242 Operating Instructions – 3888011701 EN – 12/2017
