Service work
5
Electrical enclosure
e3871138

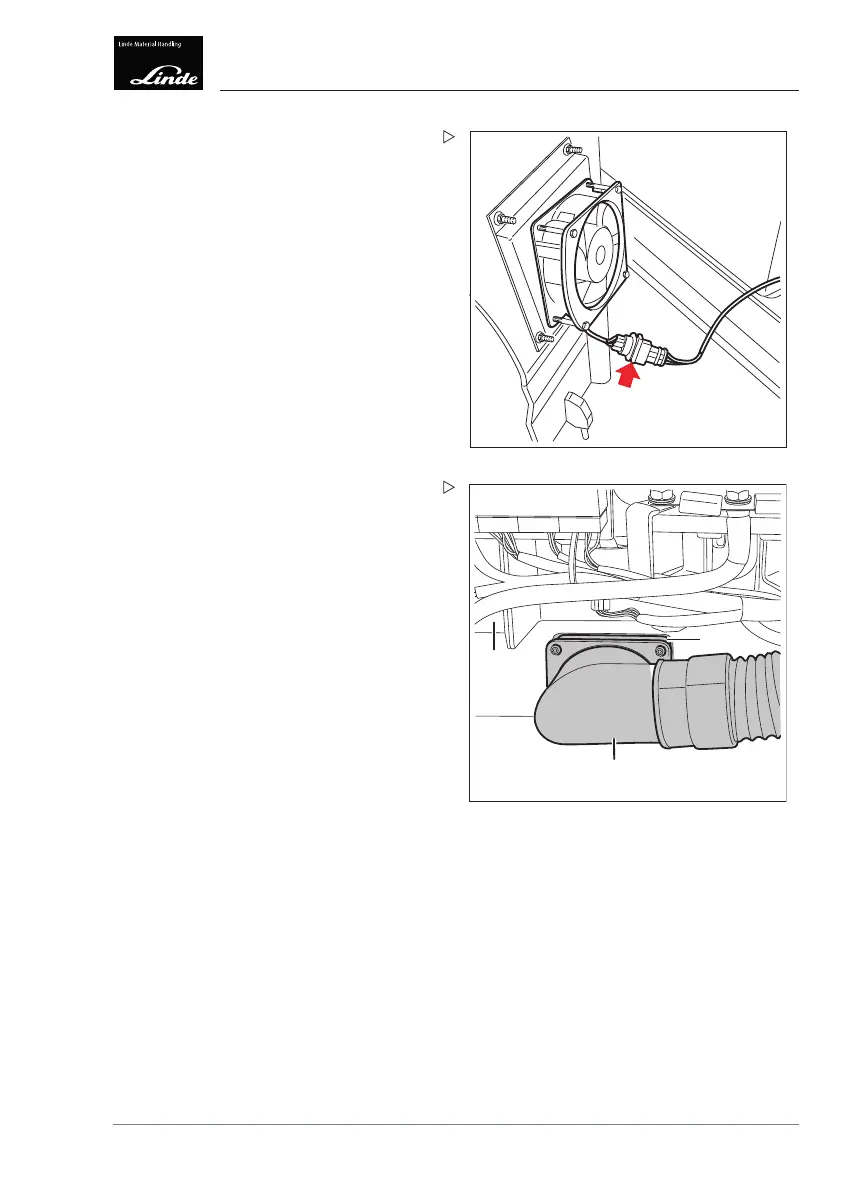

Place the side panelling to one side and
disconnect the plug connection (see arrow)
to the fan.
Clean the fan with compressed air and/or
cold cleaning solvent.
1
2
3
e3881111
Cleaning the fan on the oil cooler
The fan (1) on the oil cooler (and the associ-
ated air duct (2)) is located beneath the con-
tactor carrier (3) behind the front right-hand
side panelling.
Operating Instructions – 3888011701 EN – 12/2017 243
