5
Service work
Load lift system
Securing a raised standard lift mast
DANGER
Check the chain load!
Select a safety chain with sufficient load-bearing
capacity for the lift mast in question. Observe the
maximum lift height.
d3921482
1
2

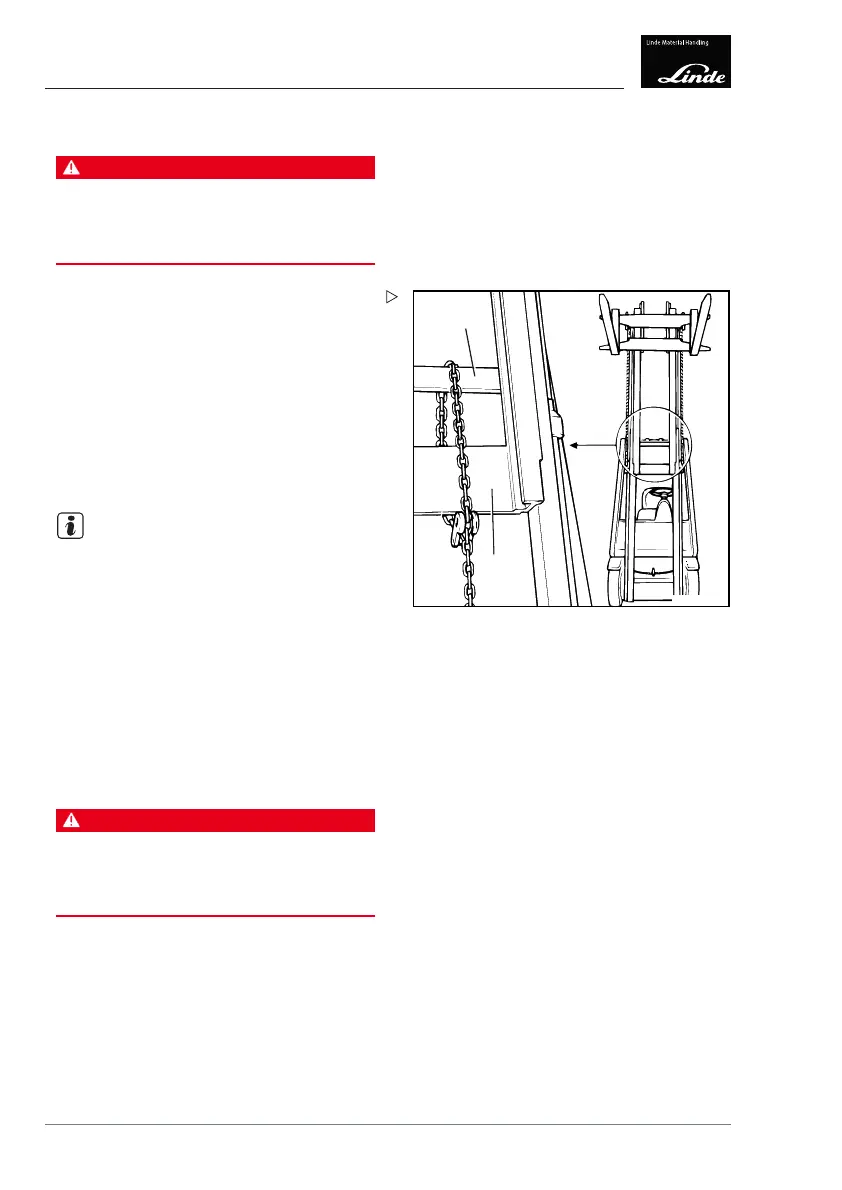

Extend the lift mast.
Connect the chain over the cross beam of
the outer mast (1) and under the cross beam
of the inner mast (2).
Watch out for the hose lines on the cross
beam of the outer mast.
Lower the inner mast to the chain stop.
Duplex lift mast
NOTE
The benefit of this design is that full advantage
is taken of the special free lift height even in
very low rooms (cellars, wagons, ships).
FUNCTION: The fork carriage is raised to the
special free lift height by the chain guide pulley
of the centre cylinder. Here, it moves twice as
fast as the centre cylinder. The inner mast is
then lifted by the two outer cylinders, taking
the fork carriage with it. The centre cylinder is
positioned on the extendable inner mast.
Securing the raised duplex lift mast
DANGER
Check the chai
n load!
Select a saf
ety chain with sufficient load-bearing
capacity
for the lift mast in question. Observe the
maximum
lift height.
252 Operating Instructions – 3888011701 EN – 12/2017
