Service work
5
Load lift system
d3921483
1
2

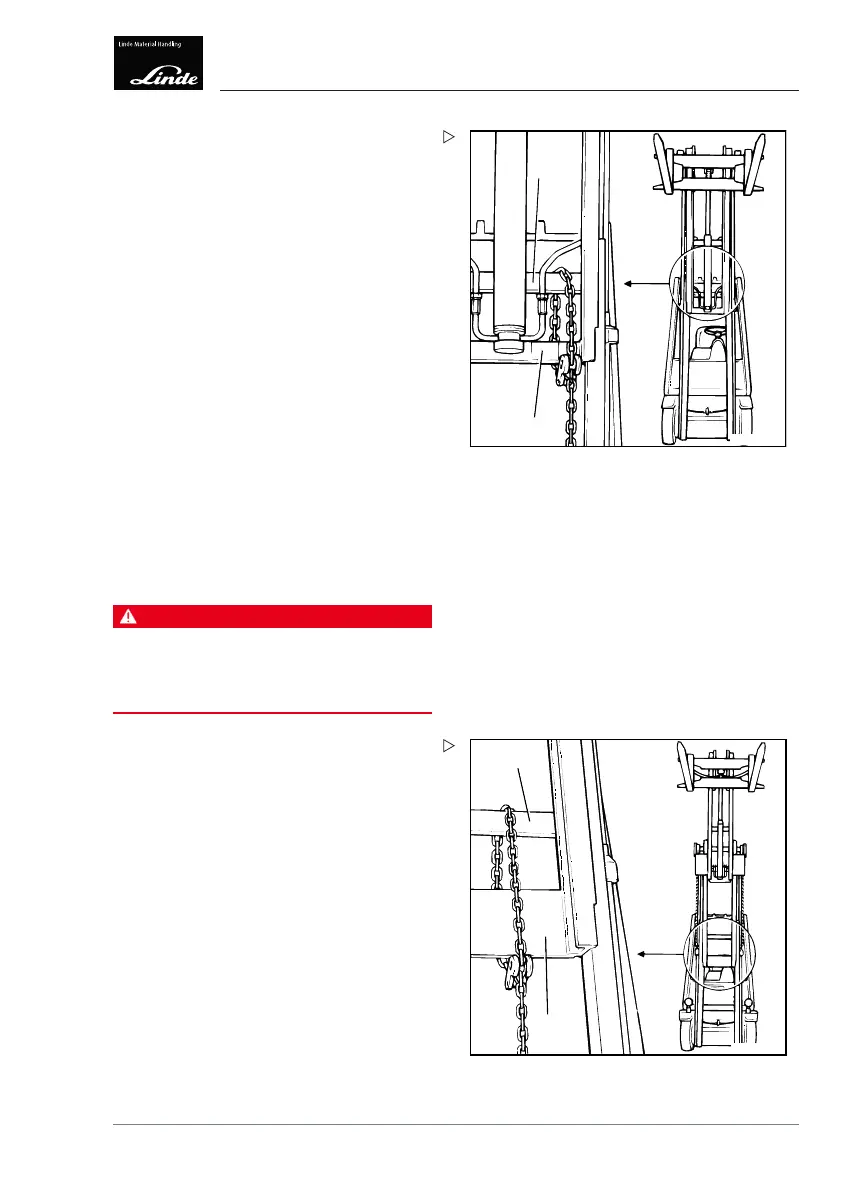

 Extend the lift mast.
 Connect the chain over the cro
ss beam of
the outer mast (1) and under th
e cross beam
of the inner mast (2).
 Watch out for the hose lines on the cross
beam of the outer mast.
 Lower the lift mast to the chain stop.
 Lower the fork carriage to t
he stop.
Triplex lift mast
FUNCTION:Theforkcarriageisraisedtothe
special free lift height by the chain guide pulley
of the centre cylinder. Two lift cylinders then
raise the inner mast. Once the inner mast
is fully extended, two additional lift cylinders
lift the middle mast, which is lifted together
with the inner mast and the fork carriage. The
centre cylinder is positioned on the extendable
inner mast.
Securing the raised triplex lift mast
DANGER
Check the chain load!
Select a safety chain with sufficient load-bearing
capacity for the lift mast in question. Observe the
maximum lift height.
d3921484
1
2
 Extend the lift mast.
 Connect the chain over the cross beam of
the outer mast (1) and under the cross beam
of the middle mast (2).
 Watch out for the hose lines on the cross
beam of the outer mast.
 Lower the lift mast to the chain stop.
 Lower the fork carriage to the stop.
