Service work
5
Self-help
1
e3871181
2

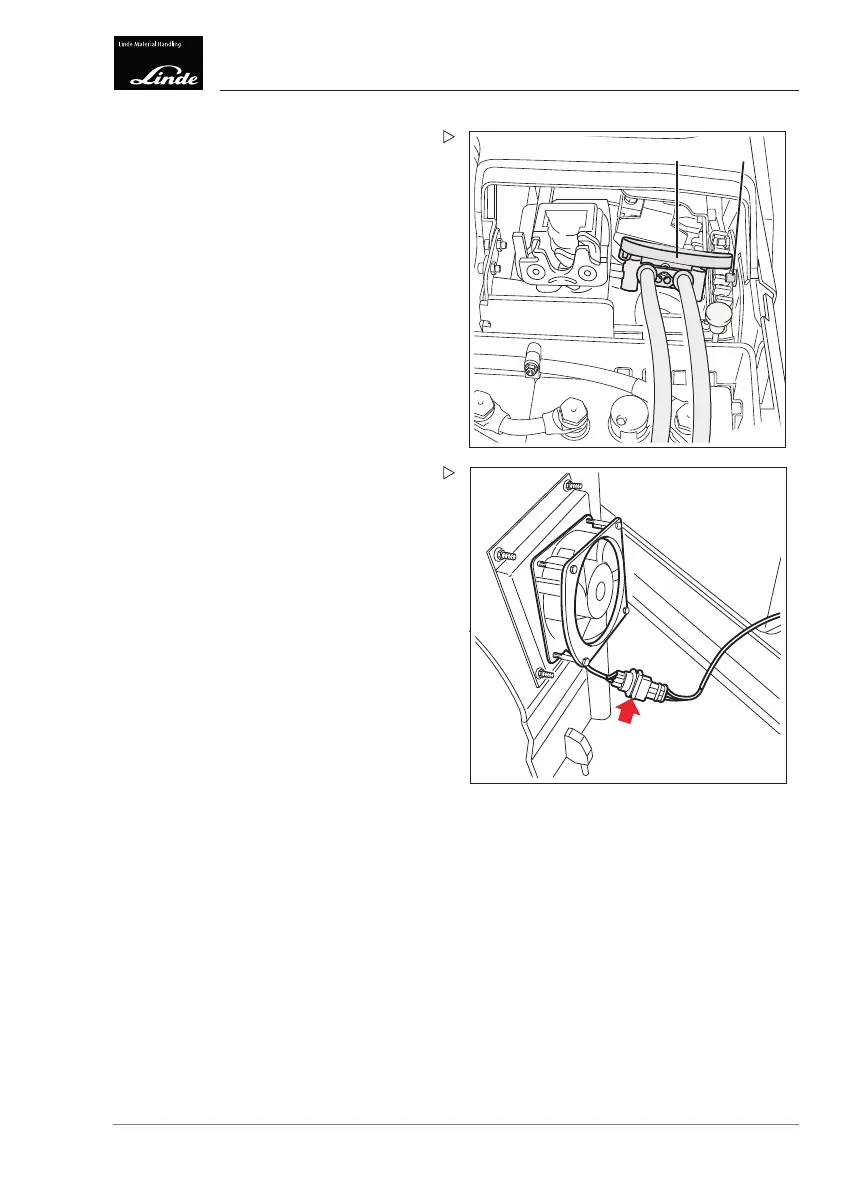

Unlock and fully open the battery hood.
Disconnect the battery femal
e connector
(1) and the battery male conne
ctor.
Loosen and unscrew the mounting screw
(2) for the side panelling.
e3871138
Lift and remove the
side panelling including
the fan; when doing
so, pay attention to the
cable connection (
see arrow) to the fan and
disconnect if nece
ssary.
Place the side panelling to one side.
Operating Instructions – 3888011701 EN – 12/2017 267
