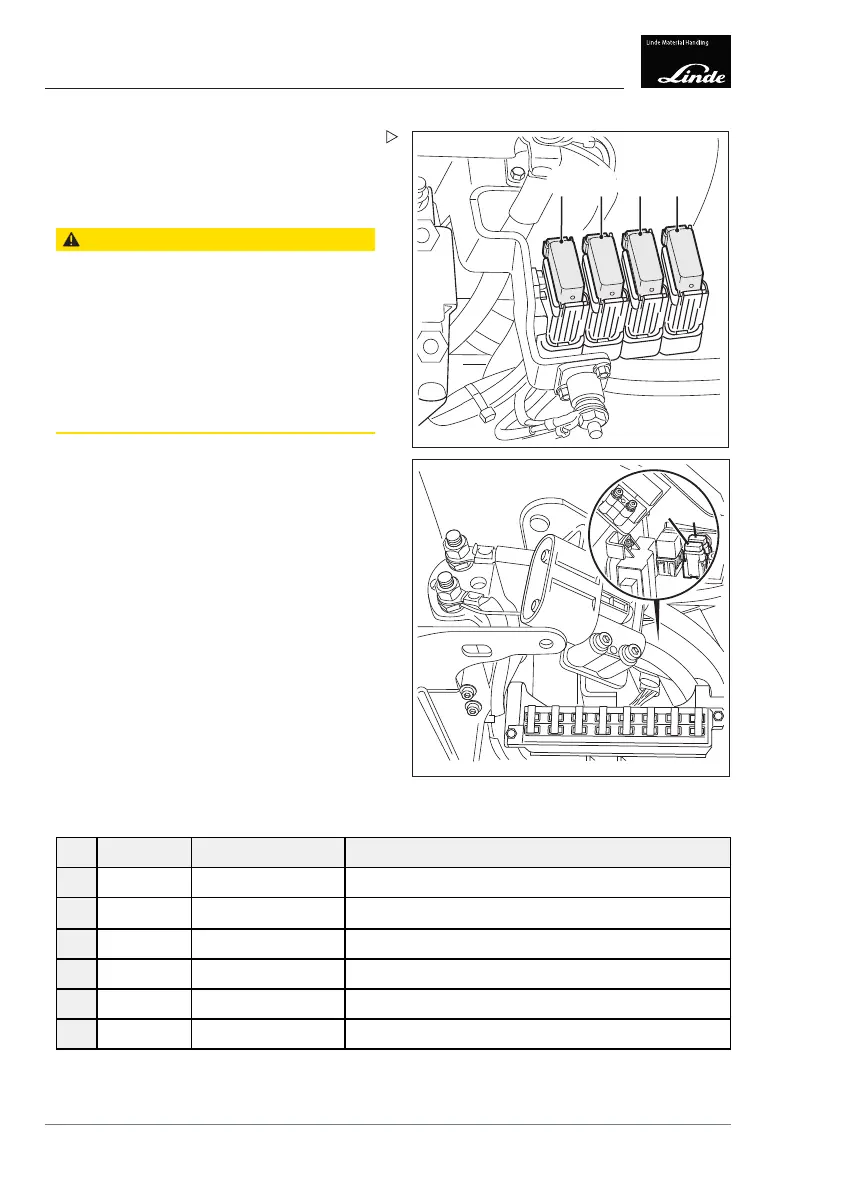

Additional fuses
for special equipment
Up to six fuses are located on the contactor
carrier to protect the special equipment:
CAUTION
Risk of fire if automotive fuses are used.
Only use genuine Linde spare fuses with a higher
voltage rating.
Do not use fuses designed for the automotive
industry.
The control current fuses are equipped with a
special quartz sand filling. They are designed for a
higher voltage range.
Contact your service partner.
Assignment for additional fuses
Fuse Value Function
19F92
30 A / 80 V
Voltage transformer, position 1/2
29F90
30 A / 80 V
Voltage transformer, position 3
3 9F70 40A/80V
Heating system
4 9F97 50A/80V
Battery carrier
5 9F100 5 A / 80 V Active ventilation
6 F90 5A/80V
Third auxiliary hydraulics / LSP display / input unit
.
274 Operating Instructions – 3888011701 EN – 12/2017
