MacDon A40D - Adjusting Reel Fore-Aft Position

262334 83 Revision A

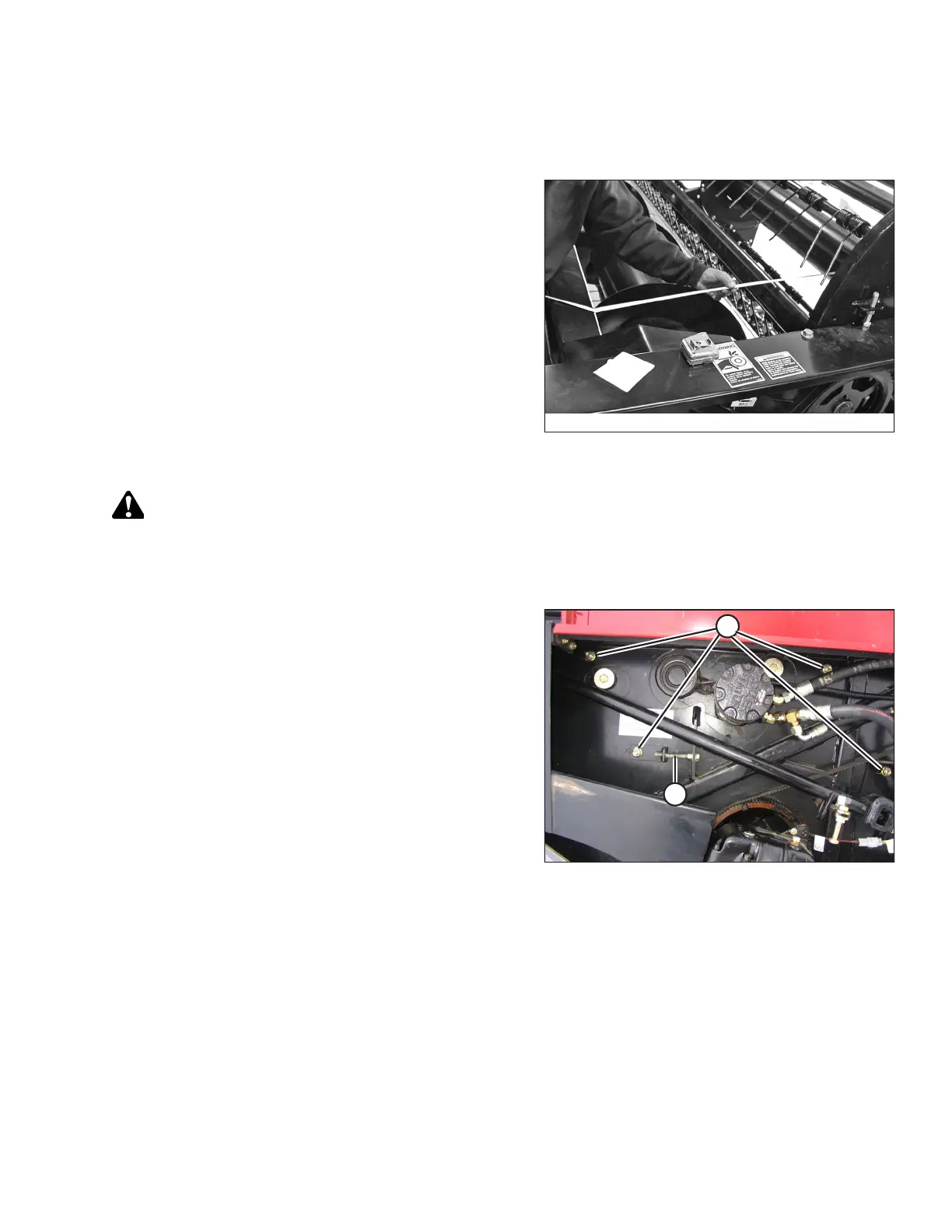

Adjusting Reel Fore-Aft Position
Follow this procedure to adjust the reel fore-aft position.
1002812
Figure 3.114: Measuring Reel Fore-Aft Offset
The reel fore-aft offset is factory-set to 816 mm (32 3/8 in.) as
measured from the inside edge of the reel tube to the back
frame member as shown in the illustration at right.
NOTE:
The reel must be adjusted equally on both sides.
WARNING
To prevent accidental movement of windrower, return ground speed lever (GSL) to Park, center steering wheel to lock,
shut off engine, and remove key.
1. Shut down the engine, and remove the key from the ignition.
1005625
A
B
Figure 3.115: Auger Header Left Side
2. Open the left endshield.
3. Loosen four nuts (A).
4. Loosen the jam nut on adjuster bolt (B), and turn bolt (B) to
adjust the reel fore-aft position.
5. Tighten the jam nut.
6. Tighten nuts (A).
OPERATION
