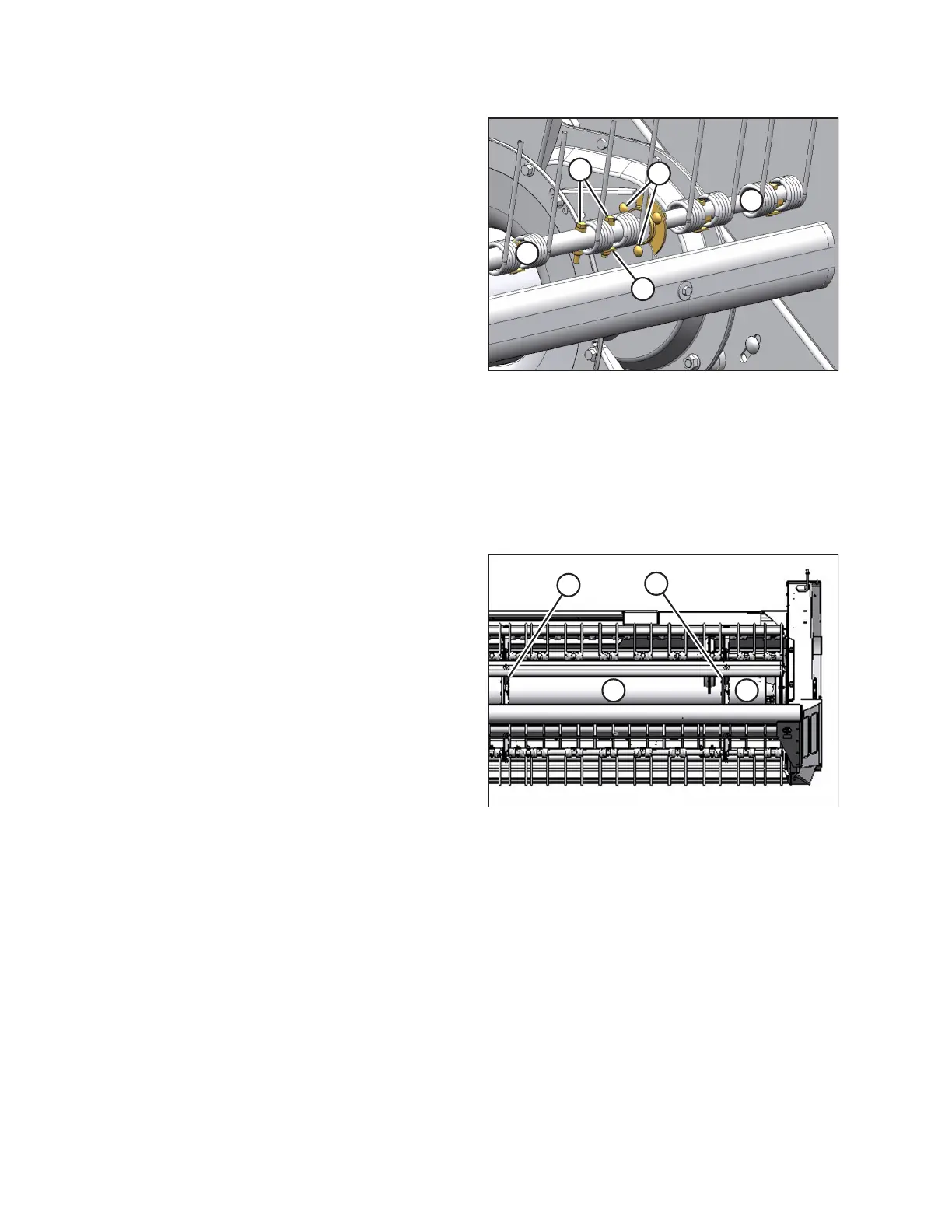

Figure 4.118: Disc #4
A - Shoulder Bolts B - Keeper
C - Flangette Mounting Bolts Y - Section Y
Z - Section Z
7. Install shoulder bolts (A) and keeper (B) with the tine to
connect the tine bar extension.
8. Install flangette mounting bolts (C) at reel disc #4. Tighten
the bolts to 21–27 Nm (16–20 lbf·ft).
4.10.5 Replacing Tine: Tine Bar Extension – Section Z
Follow the provided procedure to properly replace the tines and the bearings on the tine bar extension at section Z.
1005417
A
B
Y Z
Figure 4.119: Tine Bar Extension – Section Z
A - Disc #3 B - Disc #4
Y - Section Y Z - Section Z
The location of center section Z (Z) is shown on the illustration
at right.
