Replacing Pointed Guards and Hold-Downs
Check daily that guards are firmly bolted to the cutterbar, and not worn or broken. Replace broken guards as required. A
worn or broken guard can be replaced without removing knife from cutterbar. This procedure describes the replacement of
pointed guards and hold-downs on single- and double-knife headers.
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
Pointed standard guard and hold-down
Follow this procedure to replace standard pointed guards and hold-downs on single- and double-knife headers, except the
double knife center guard and hold-down. Refer to double knife pointed center guard and hold-down in this section.
1. Shut down the engine, and remove the key from the ignition.

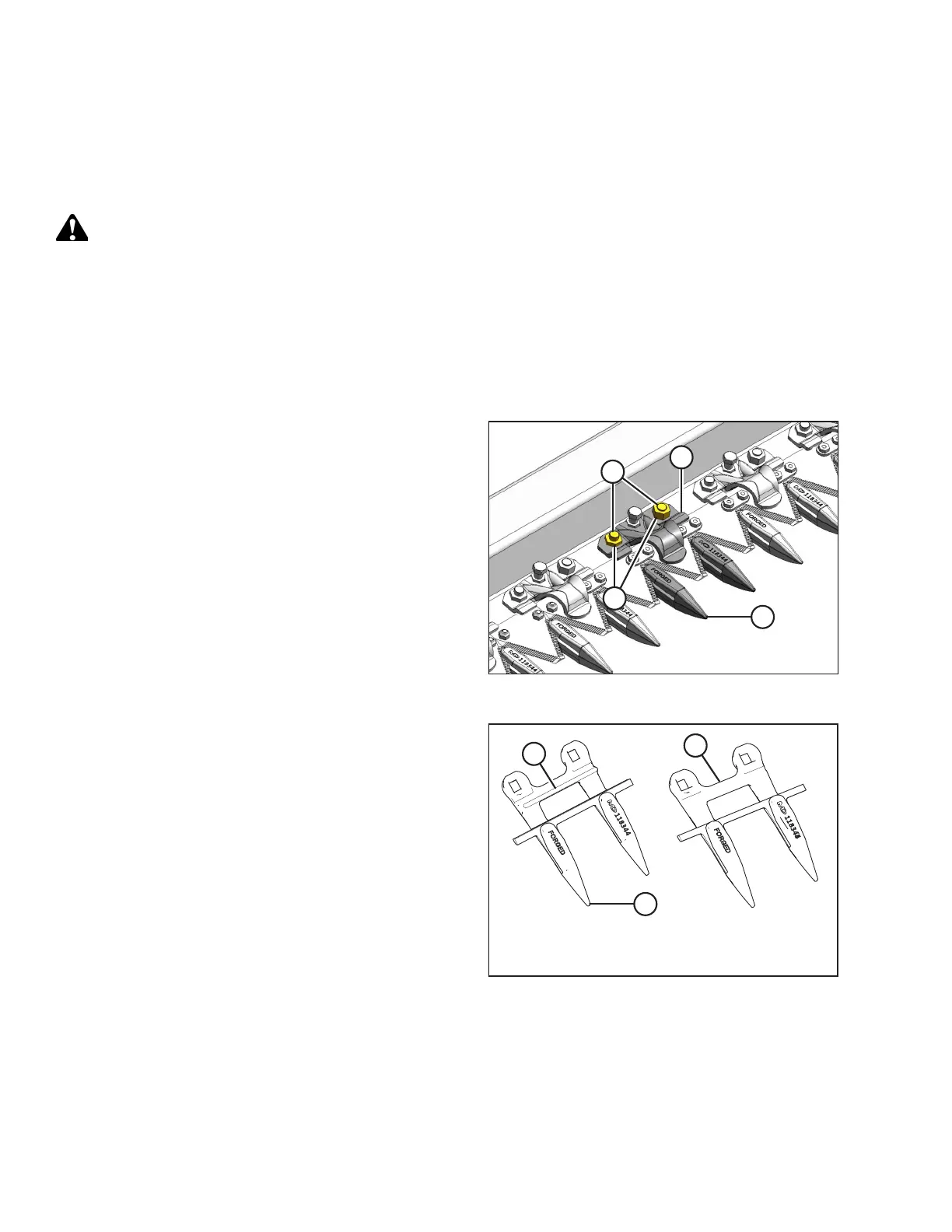

Figure 4.30: Pointed Guards
2. Stroke the knife so that knife sections are spaced midway
between the guards.
3. Remove two nuts (A) and carriage bolts (B) that attach
guard (C) and hold-down (D) to the cutterbar.
4. Remove guard (C) and hold-down (D).
5. Position new guard (C) on cutterbar, and install carriage
bolts (B).
6. Install hold-down (D), and secure with nuts (A). Tighten
nuts to 68 Nm (50 lbf·ft).
7. Check and adjust clearance between hold-down and knife.
Refer to 4.8.8 Hold-Downs, page 156.
Figure 4.31: Pointed Guards
IMPORTANT:
The second, third, and fourth outboard guards (A) on drive side
of the header do NOT have a ledger (B) as shown for normal
guard (C). Ensure that the proper replacement is installed.
