4.14.11 Checking and Adjusting Roll Timing
The rolls must be correctly timed with each steel bar on one roll centered between two bars of the other roll.
DANGER
To avoid bodily injury or death from fall of raised machine, always lock-out lift cylinders before going under header for
any reason.
1. Lower the header until it rests on the ground.
2. Shut down the engine, and remove the key from the ignition.

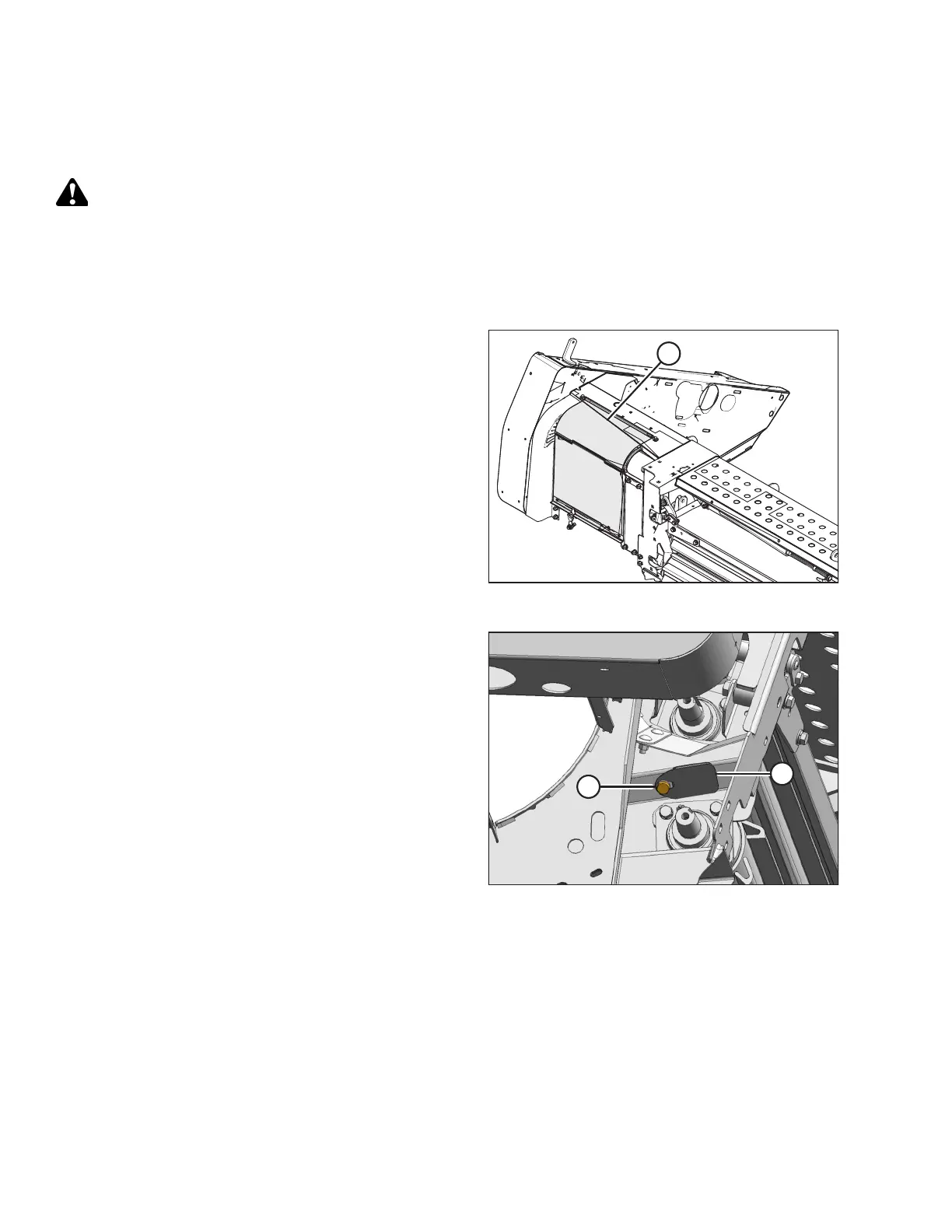

Figure 4.178: Driveshield
3. Open driveshield (A). For instructions, refer to 4.2 Opening/
Closing Driveshield, page 126.
Figure 4.179: Access Cover
4. Loosen bolt (A), and rotate cover (B) to expose the access
port at each end of the conditioner.
