262334 223 Revision A
Chapter 5: Optional Equipment
The following options and attachments are available for use with your header. See your MacDon Dealer for availability and
ordering information.
5.1 Options and Attachments
5.1.1 Additional Skid Shoes
In addition to the standard skid shoes, two additional skid shoes may be added for extra control of cutting height and
protection of cutting components.

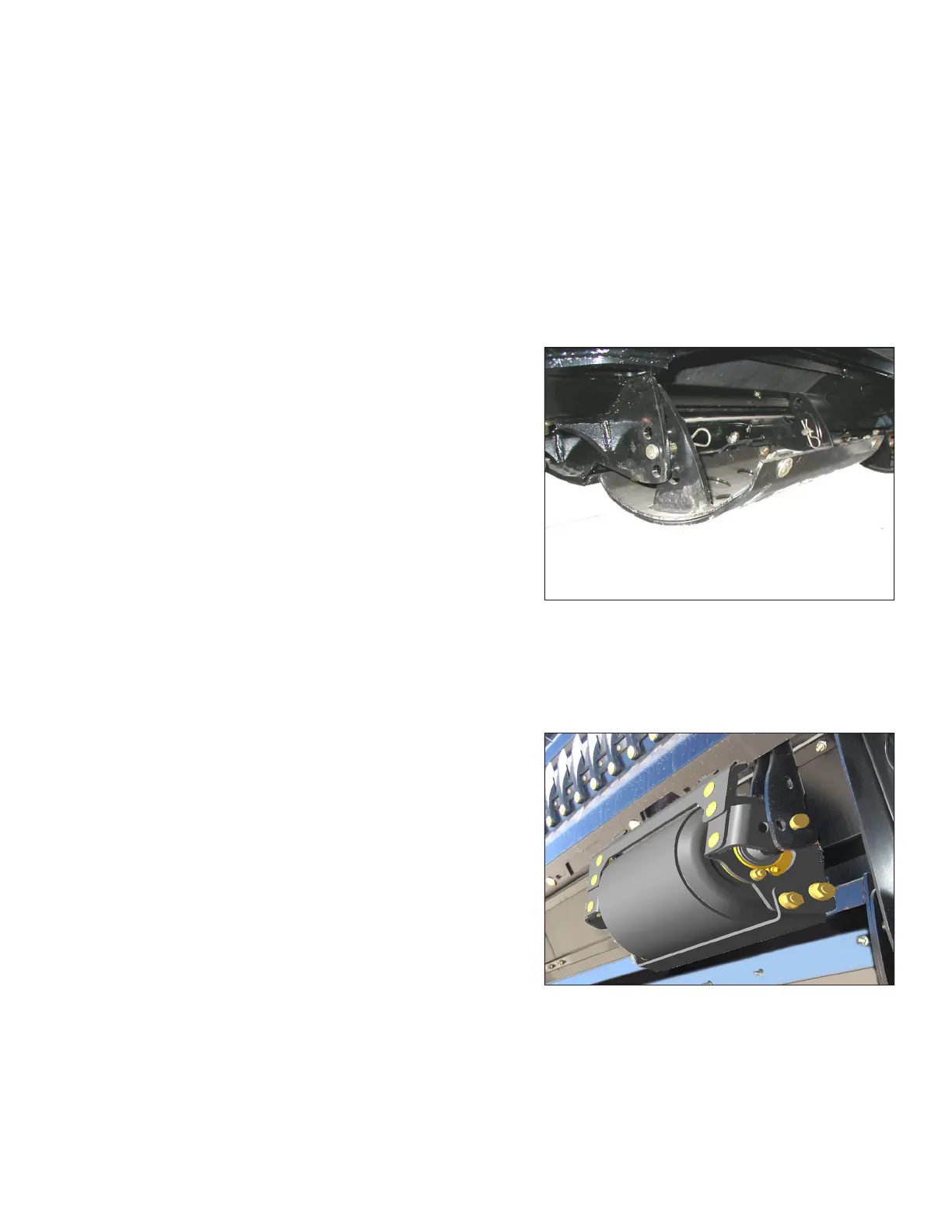

Figure 5.1: Skid Shoe
B4594
5.1.2 Gauge Roller Kit
The gauge roller kit replaces the outer skid shoes with rollers. They can be adjusted for varying cutting heights.
Figure 5.2: Gauge Roller
B4593
