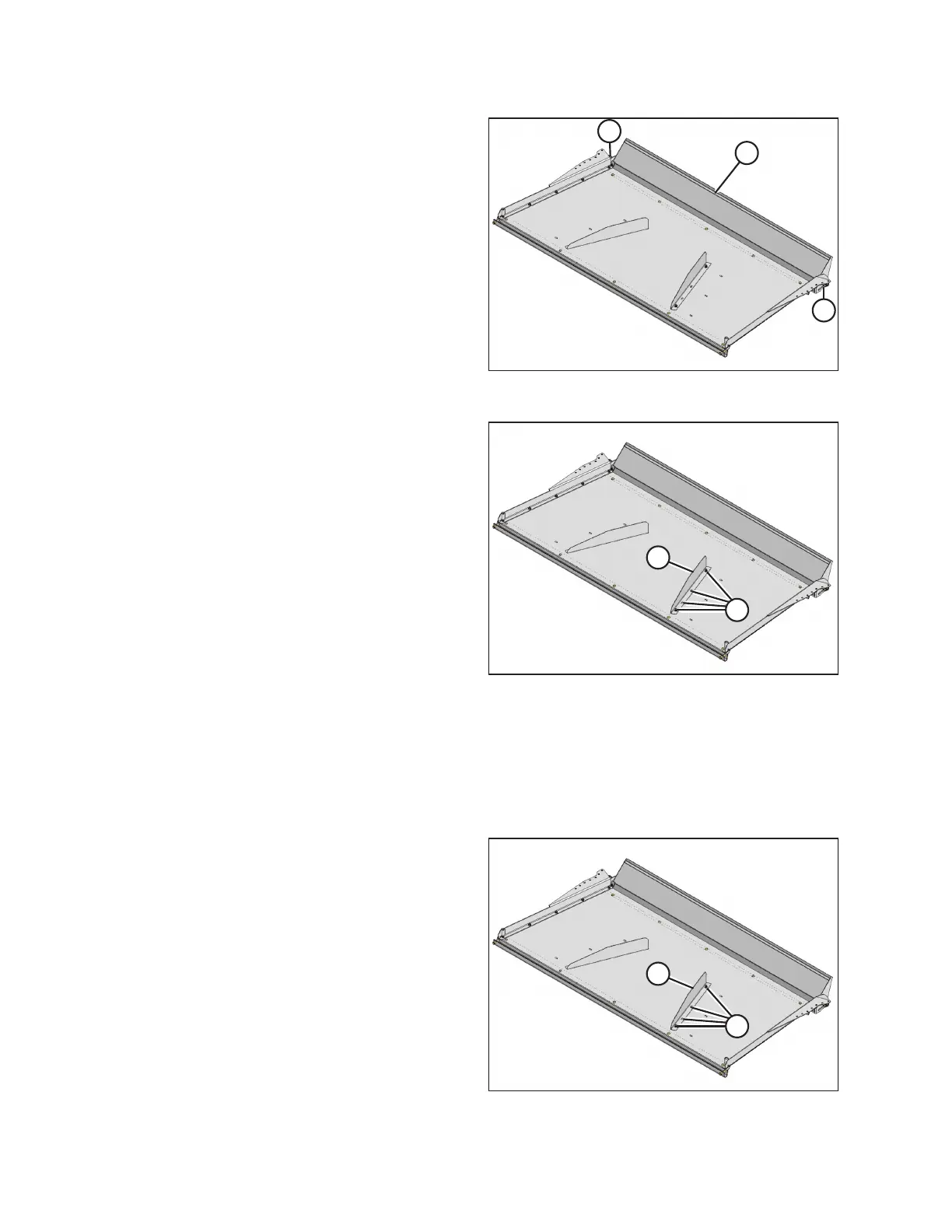

Figure 4.138: Cover
4. Remove locking handles (A), and remove the bolts.
5. Remove fluffer shield (B) from the forming shield cover.
1005405
A
B
Figure 4.139: Cover
6. Remove bolts (A) to remove deflector fins (B) from
the cover.
4.14.4 Assembling Forming Shield
The deflector fins, fluffer shield, locking handle,, and side deflectors will need to be secured to the forming shield cover.
To assemble the forming shield, follow these steps:
1005405
A
B
Figure 4.140: Cover
1. Attach deflector fins (B) to the forming shield cover with
bolts (A).
