MacDon A40D - Replacing Tine and Bearing: Disc #2

262334 180 Revision A
1005835
A

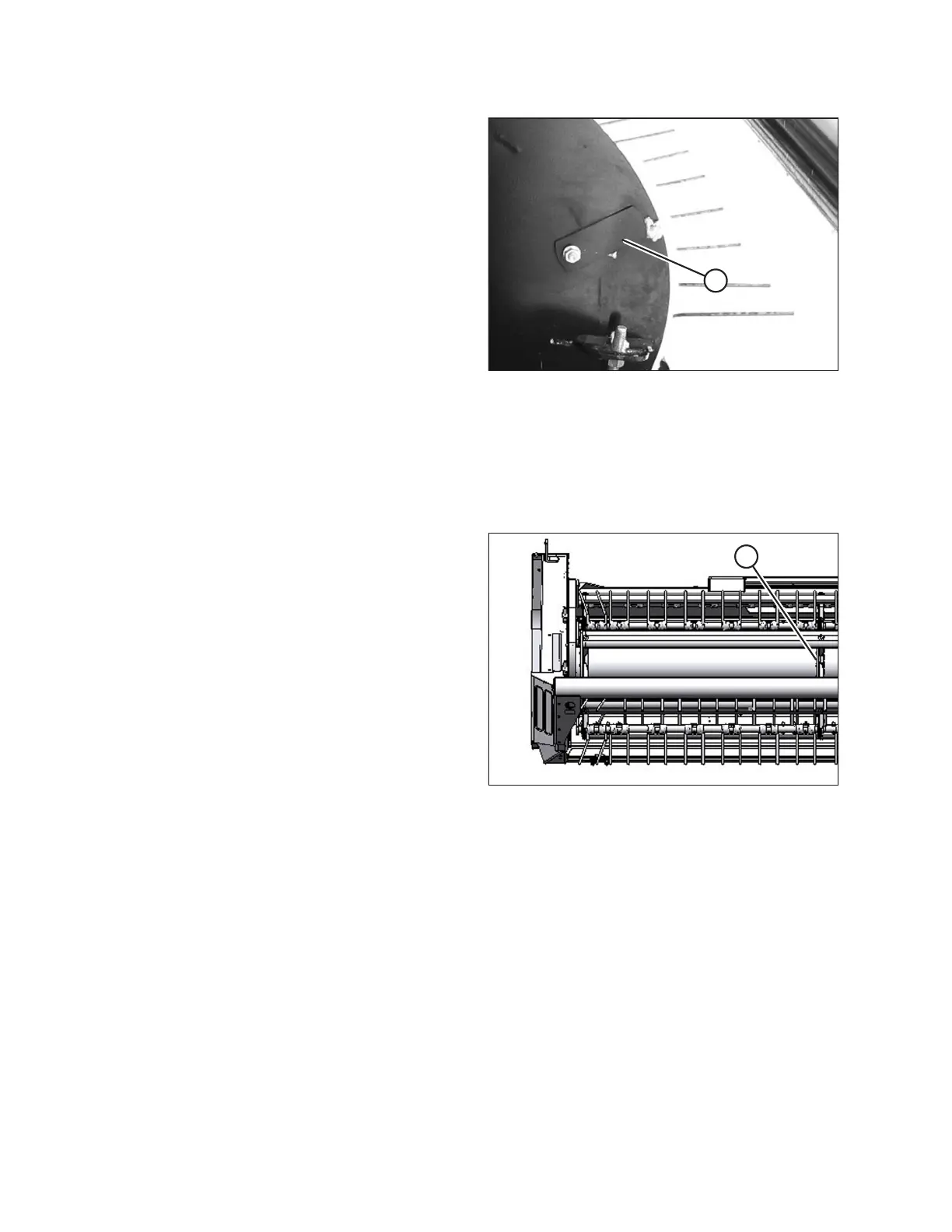

Figure 4.97: Cover
17. Reposition cover (A) on the cam, and tighten the bolt.
4.10.2 Replacing Tine and Bearing: Disc #2
Follow the provided procedure to properly replace the tines and the bearings at disc #2.
Replace tine and bearing at disc #2 (A) as follows:
1022468
A
Figure 4.98: Cam End Disc
The location of disc #2 (A) is shown on the illustration at right.
IMPORTANT:
The tine attachment hardware and configuration may vary
between Tine Bar Type A and Tine Bar Type B. Identify the
locations so that tine hardware will be reinstalled at the same
locations. Both Tine Bar Type A and Tine Bar Type B
configurations are required to stagger the tines on the reel bat
and ensure all of the crop is picked up.
MAINTENANCE AND SERVICING
