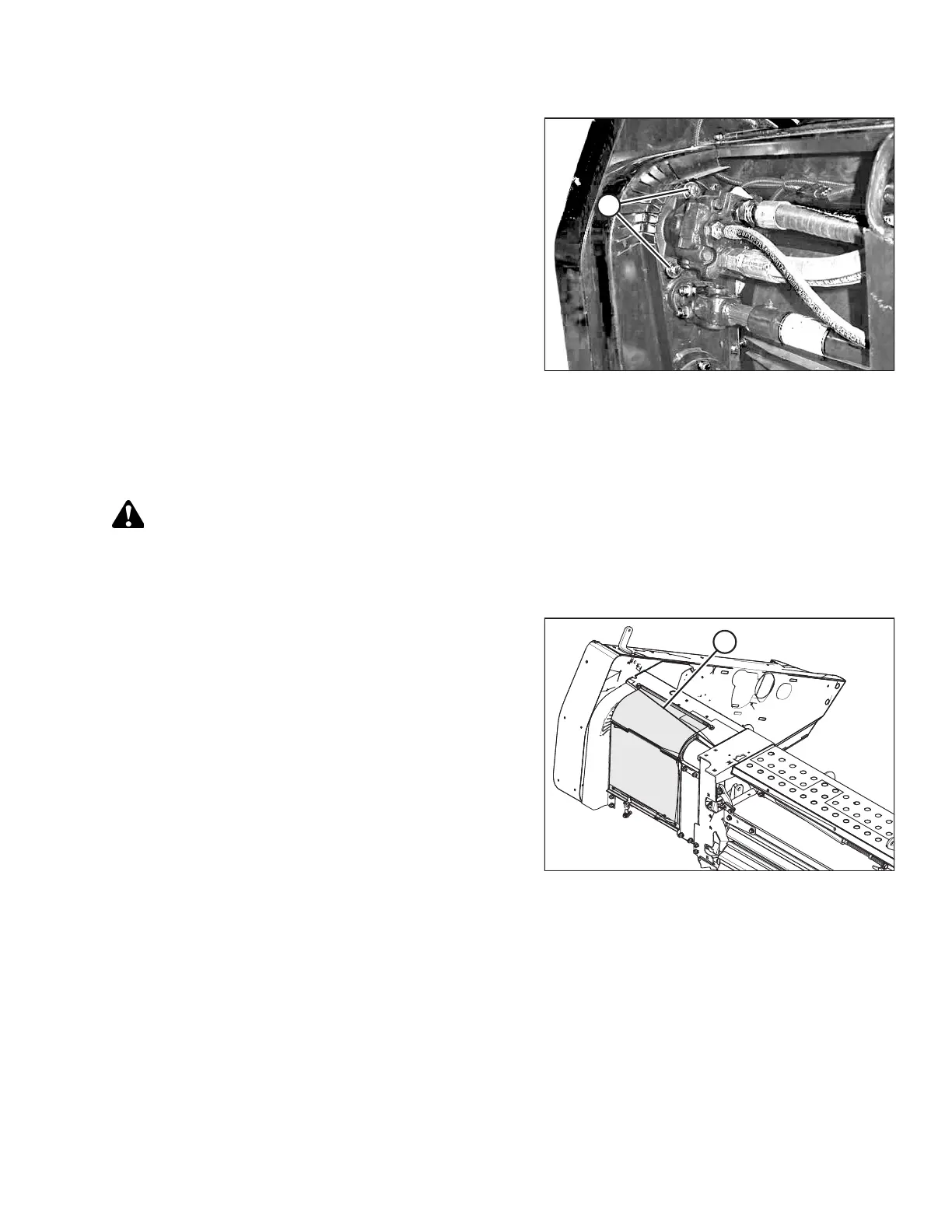

Figure 4.154: Motor – Single Knife
3. Apply a light coat of silicone to the motor flange.
4. Position the motor on the gearbox, as shown, until the
mounting holes are aligned, and the pinion engages the
gear in the gearbox.
5. Clean off the excess sealant from the motor flange and the
gearbox face.
6. Install bolts (A) and washers, and torque the hardware to
102 Nm (75 lbf·ft).
7. Reconnect the hoses to the motor.
4.14.8 Removing Conditioner Gearbox
Follow this procedure when removing the conditioner gearbox.
DANGER
To avoid bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
Figure 4.155: Driveshield
2. Open driveshield (A). For instructions, refer to 4.2 Opening/
Closing Driveshield, page 126.
