3.8.8 Setting Cutting Height
Follow this procedure to set the desired cutting height.
WARNING
To prevent accidental movement of windrower, return ground speed lever (GSL) to Park, center steering wheel to lock,
shut off engine, and remove key.

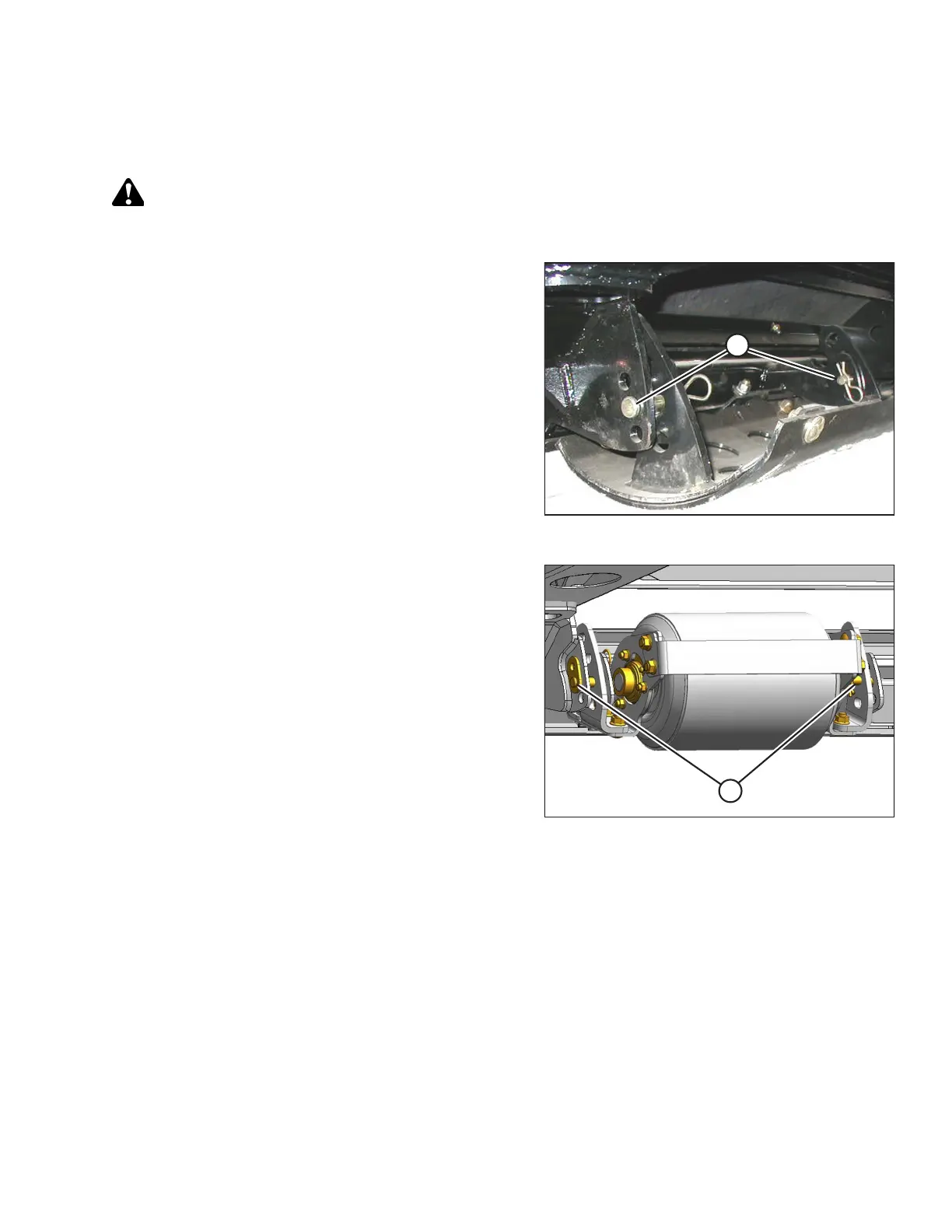

Figure 3.128: Skid Shoe
1. Raise the header, and engage the header lift cylinder lock-
out valves.
2. Remove pins (A) at each skid shoe or gauge roller.
3. Raise or lower the skid shoe or the gauge roller to the
desired position.
4. Replace pins (A).
Figure 3.129: Gauge Roller
5. Check that the skid shoes or the gauge rollers are adjusted to the same position.
6. Check the header float, and adjust it if required. For instructions, refer to 3.8.11 Checking and Adjusting Float – M
Series Self-Propelled Windrowers, page 99 for more information.
NOTE:
The two inboard skid shoes are standard equipment. The inboard shoes can be moved to the outboard position OR
outboard positions can be fitted with either the gauge rollers or the skid shoes.
