3.11 Grass Seed Special
The grass seed auger header has several features to adapt it to this special application.
Some of these features include:
• 3.11.1 Stub Guards and Hold-Downs, page 113
• 3.11.2 Special Auger Design for Grass Seed Special, page 114
• 3.11.3 Seven-Bat Reel, page 114
• 3.11.4 Auger Pan Extensions, page 115
• 3.11.5 Windrow Forming Rods, page 117
3.11.1 Stub Guards and Hold-Downs
The cutterbar is equipped with stub guards for effective cutting in tough grass crops.
1005289

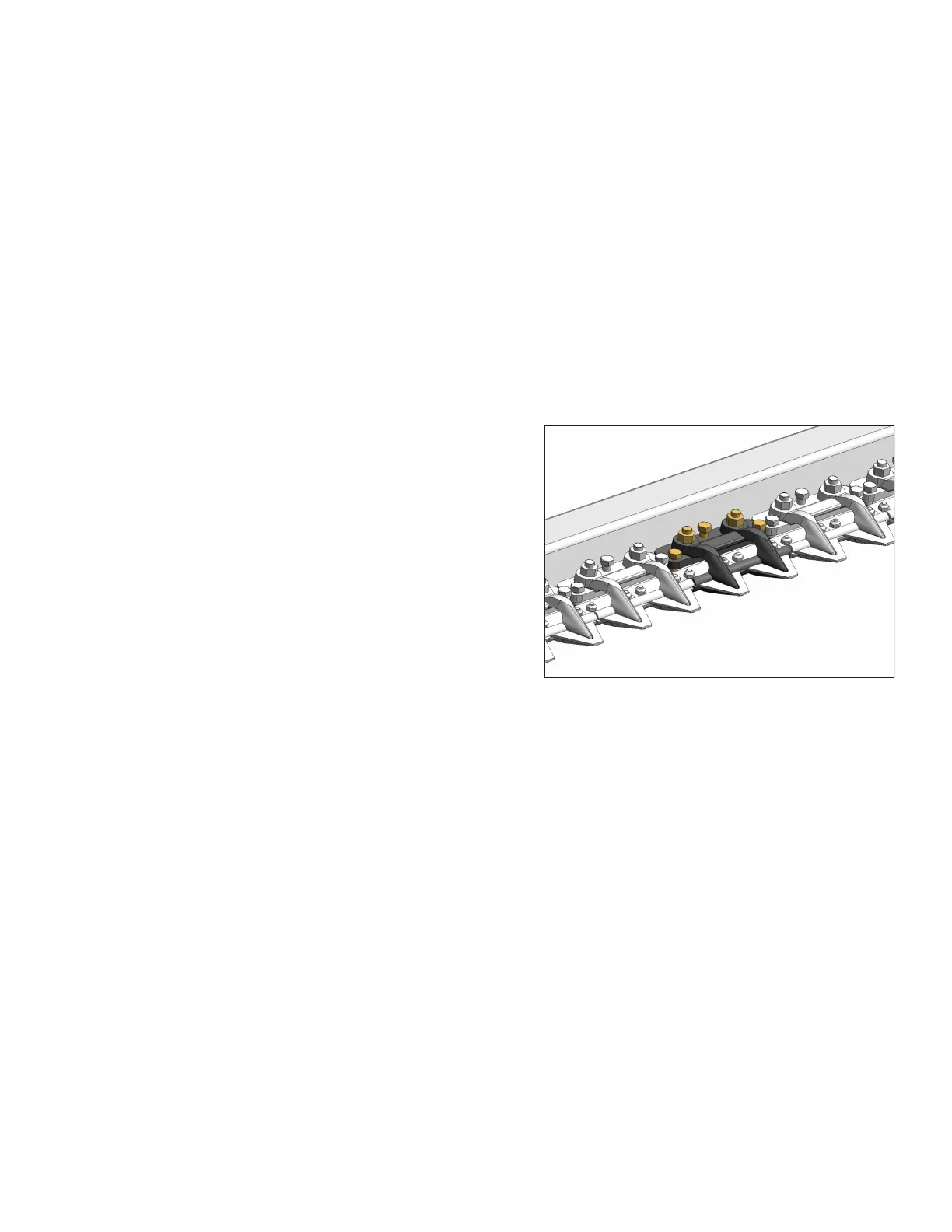

Figure 3.163: Cutterbar Stub Guards
Refer to 4.8.7 Guards, page 147 for maintenance of these
components.
