MacDon A40D - Positioning Side Deflectors; Positioning Rear Deflector (Fluffer Shield)

262334 104 Revision A
Positioning Side Deflectors
The position of the side forming shields controls the width and placement of the windrow.
WARNING
To prevent accidental movement of windrower, return ground speed lever (GSL) to Park, center steering wheel to lock,
shut off engine, and remove key.
To ensure windrow placement is centered with respect to carrier/drive wheels, adjust both side deflectors to the same
hole position on the adjuster bar.
1. Shut down the engine, and remove the key from
the ignition.
1005881
A
B

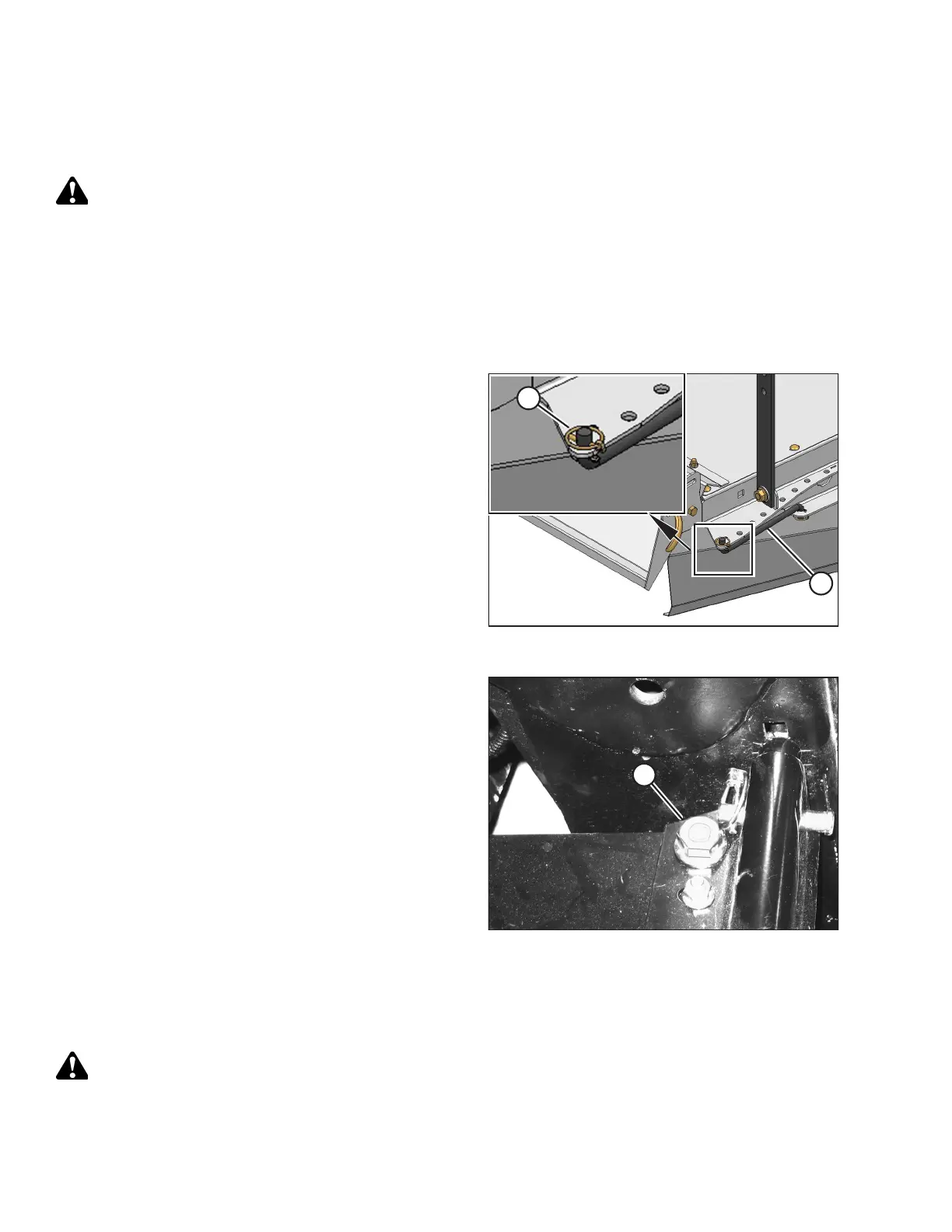

Figure 3.158: Forming Shield Side Deflector
2. Set the forming shield side deflectors to the desired width
by repositioning the adjuster bars as follows:
a. Remove lynch pin (A).
b. Move adjuster bar (B) to another hole.
c. Reinstall lynch pin (A).
1005885
A
Figure 3.159: Forming Shield Adjustment Nut
3. If the forming shield attachment is too tight or too loose,
tighten or loosen nut (A) as required.
Positioning Rear Deflector (Fluffer Shield)
The rear deflector slows the crop exiting the conditioner rolls, directs the flow downward, and fluffs the material.
WARNING
To prevent accidental movement of windrower, return ground speed lever (GSL) to Park, center steering wheel to lock,
shut off engine, and remove key.
OPERATION
