MacDon A40D - Adjusting Vertical Position

262334 81 Revision A
1005614
A
B

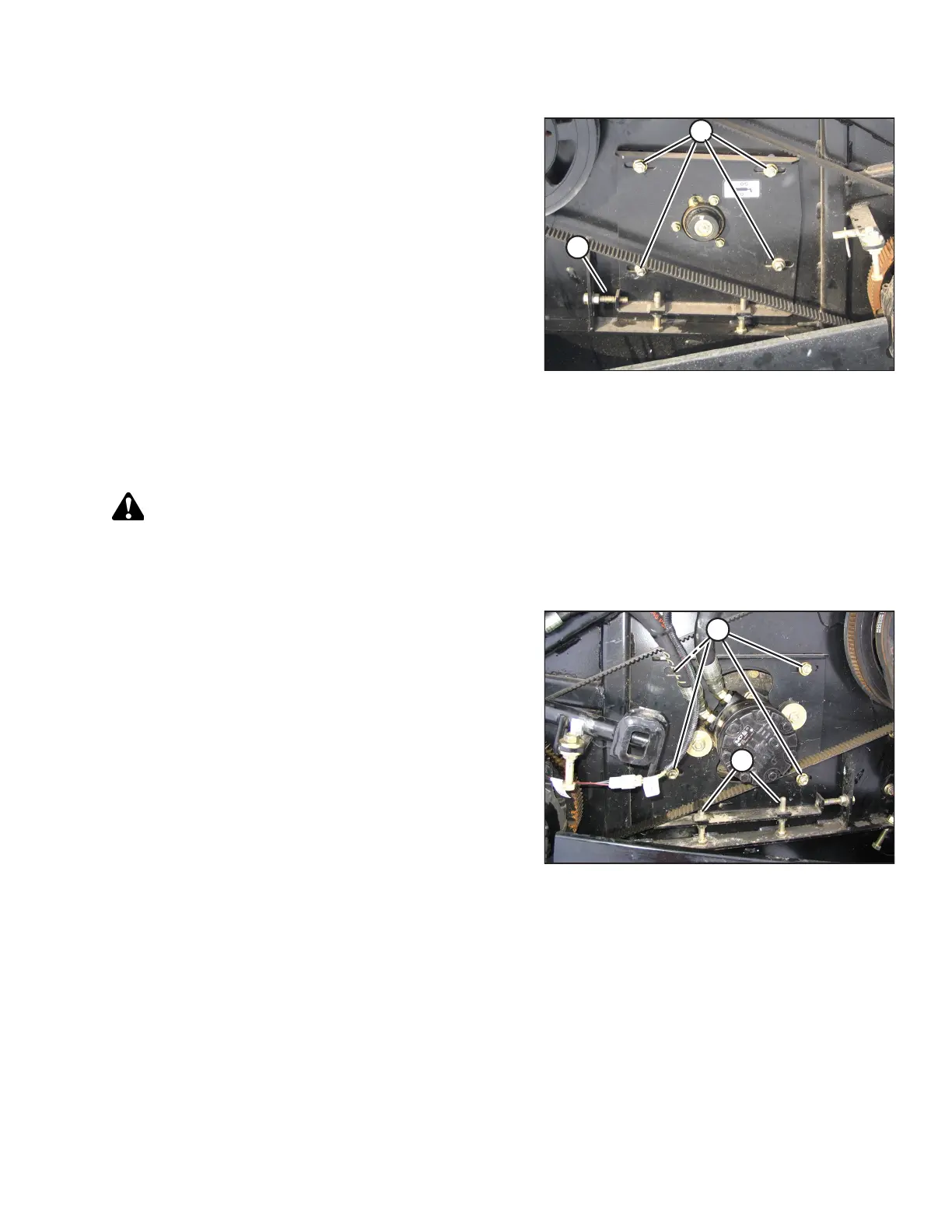

Figure 3.111: A40D Right Side
7. Open the right endshield.
8. Loosen four nuts (A).
9. Loosen the jam nut on adjuster bolt (B), and turn bolt (B) to
adjust the auger fore-aft position.
10. Tighten the jam nut.
11. Tighten nuts (A).
12. Close the endshields before engaging the header.
Adjusting Vertical Position
Follow this procedure to adjust the auger header’s vertical position.
WARNING
To prevent accidental movement of windrower, return ground speed lever (GSL) to Park, center steering wheel to lock,
shut off engine, and remove key.
1. Shut down the engine, and remove the key from the ignition.
1005617
A
B
Figure 3.112: A40D Left Side
2. Open the left endshield.
3. Loosen four nuts (A).
4. Loosen the jam nuts on adjuster bolts (B), and turn bolts (B)
to adjust the auger vertical position.
5. Tighten the jam nuts.
6. Tighten nuts (A).
OPERATION
