MacDon A40D - Adjusting Header Angle

262334 88 Revision A
1005667
A

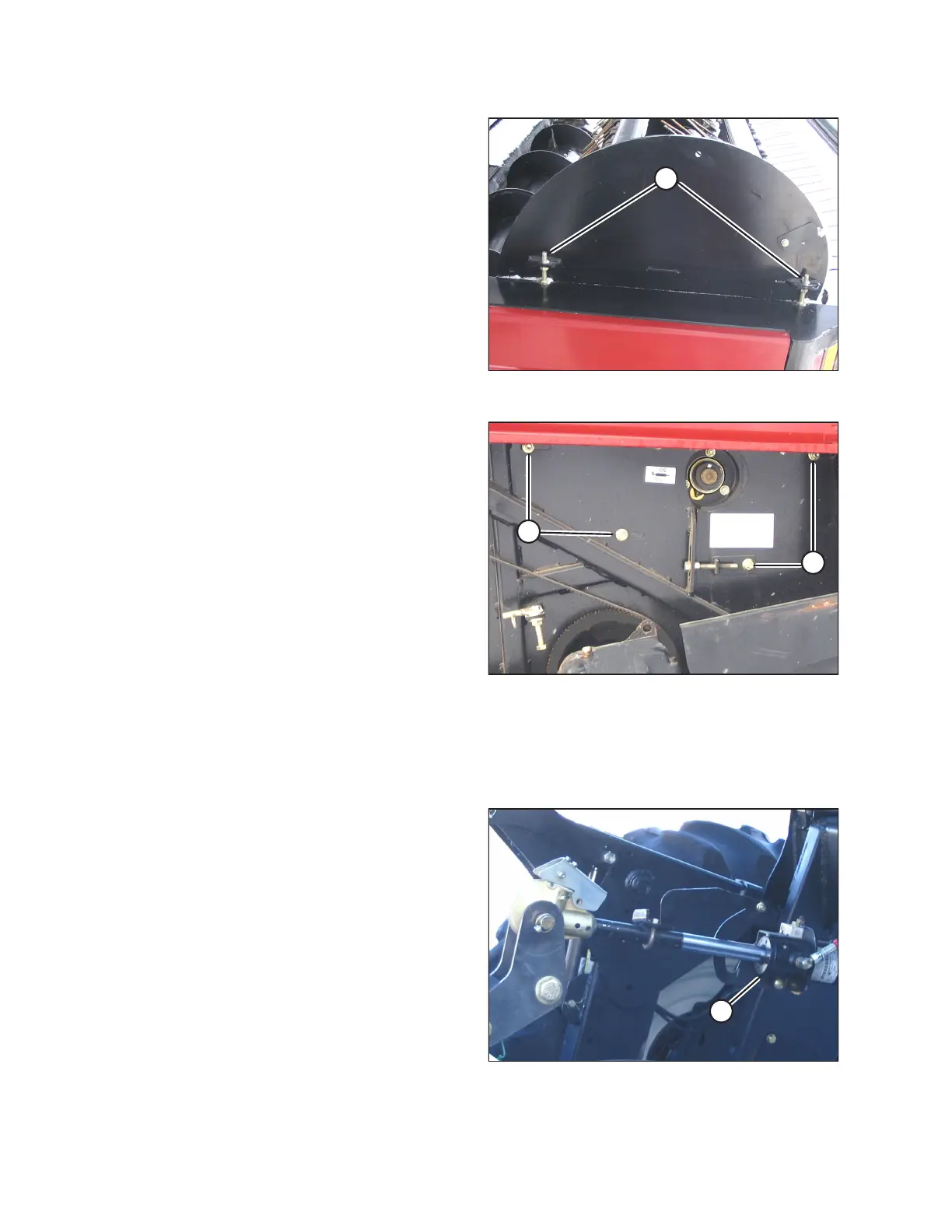

Figure 3.125: Auger Header Right Side
4. Loosen the jam nuts on bolts (A), and turn the bolts to
rotate the cam to the desired position. Viewed from the
right side, rotate the cam clockwise to obtain more
aggressive tine action.
NOTE:
The factory setting at forward adjuster bolt should be
12 mm (15/32 in.) lower than at rear adjuster bolt. If tine
aggressiveness has changed, then the adjuster bolt offset
may not equal factory settings. Always measure the
adjuster bolt offset and maintain throughout the vertical
adjustment.
1005668
A
A
Figure 3.126: Auger Header Right Side
5. Tighten nuts (A), and the jam nuts on the bolts.
6. Ensure that the chain and/or the belt are NOT
overtightened. Adjust them to the recommended tension if
required.
7. Ensure that there is no contact between the reel tines and
the header pan. For instructions, refer to Checking Reel Tine
to Header Pan Clearance, page 86.
3.8.7 Adjusting Header Angle
The header angle can be hydraulically adjusted from the cab without shutting down the windrower.
1005631
A
Figure 3.127: Header Angle Hydraulic Cylinder
1. Adjust the header angle from the cab using hydraulic
cylinder (A).
NOTE:
Some M100, M105, M150, and M155 models are equipped
with a mechanical link. For instructions on adjusting header
angle, refer to your windrower operator’s manual.
OPERATION
