3.13 Tall Crop Dividers
The tall crop dividers attach to the ends of the header for clean crop dividing, and reel entry in tall crops. They can be
easily adjusted to suit the crop, or removed when not required.
3.13.1 Adjusting Tall Crop Dividers
The tall crop divider can be adjusted by aligning it with the alternate hole location.
1005771
A
B
C
D

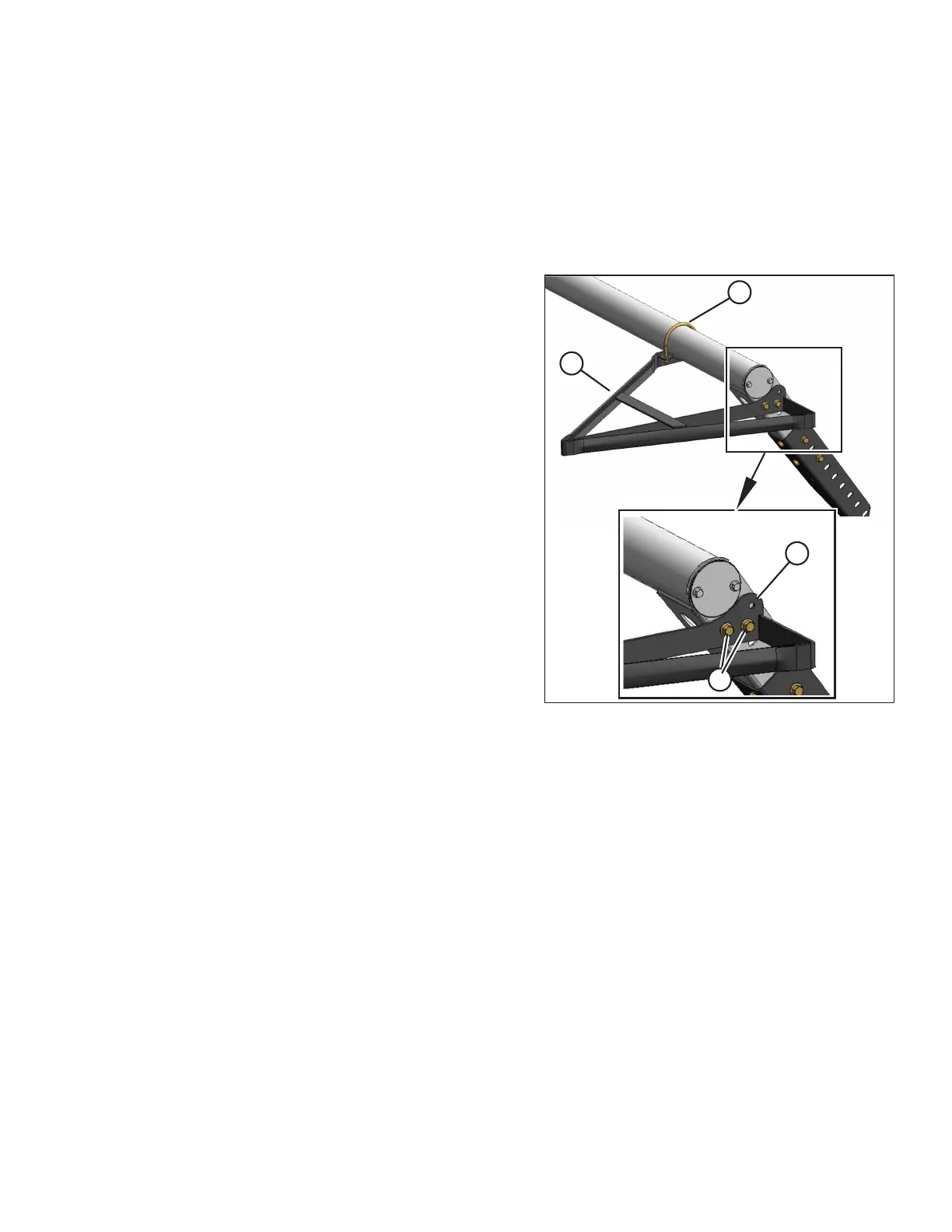

Figure 3.173: Tall Crop Divider
1. Loosen U-bolt (A).
2. Remove bolts (B), and reposition divider (C) to align with
alternate hole location (D).
3. Reinstall bolts (B), and tighten them.
4. Tighten U-bolt (A).
