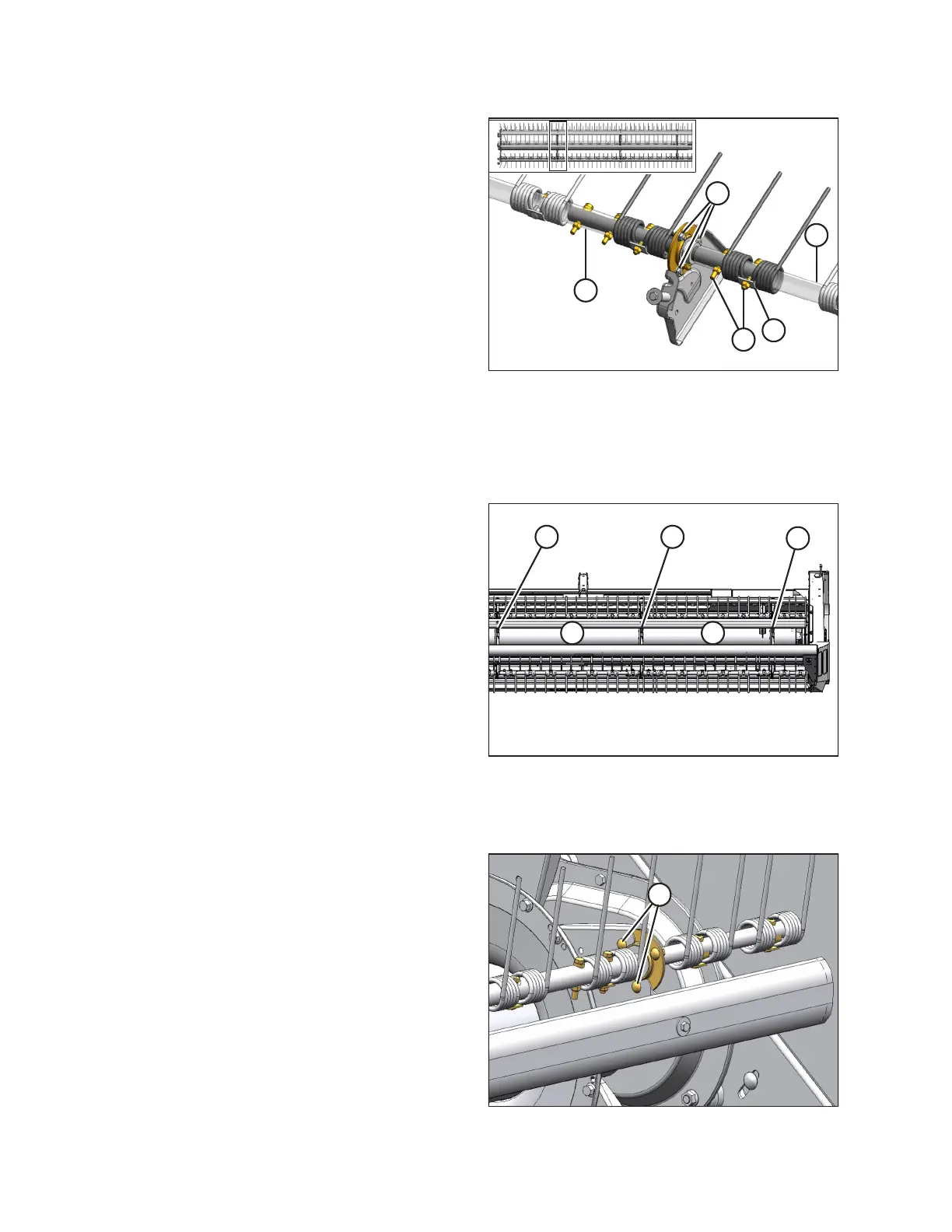

Figure 4.108: Tine Bar Type B
22. Slip the new tine onto center tine bar (E).
23. Assemble left tine bar (D) to center tine bar (E) and secure
it with shoulder bolt (B) and nut.
24. Secure the tine onto center tine bar (E) with shoulder
bolt (B), keeper (C), and nut.
25. Install the tine bar onto the reel disc with hardware (A).
Tighten the bolts to 31– 36 Nm (23–26 lbf·ft).
4.10.3 Replacing Tine and Bearing: Center Section X
Follow the provided procedure to properly replace the tines and the bearings at center section X.
1005423
A B
C
X Y
Figure 4.109: Center Section X
A - Disc #2 B - Disc #3
C - Disc #4 X - Section X
Y - Section Y
The location of center section X (X) is shown at the illustration
at right.
1005424
A
Figure 4.110: Disc #4
1. Remove flangette mounting bolts (A) at reel discs #3
and #4.
