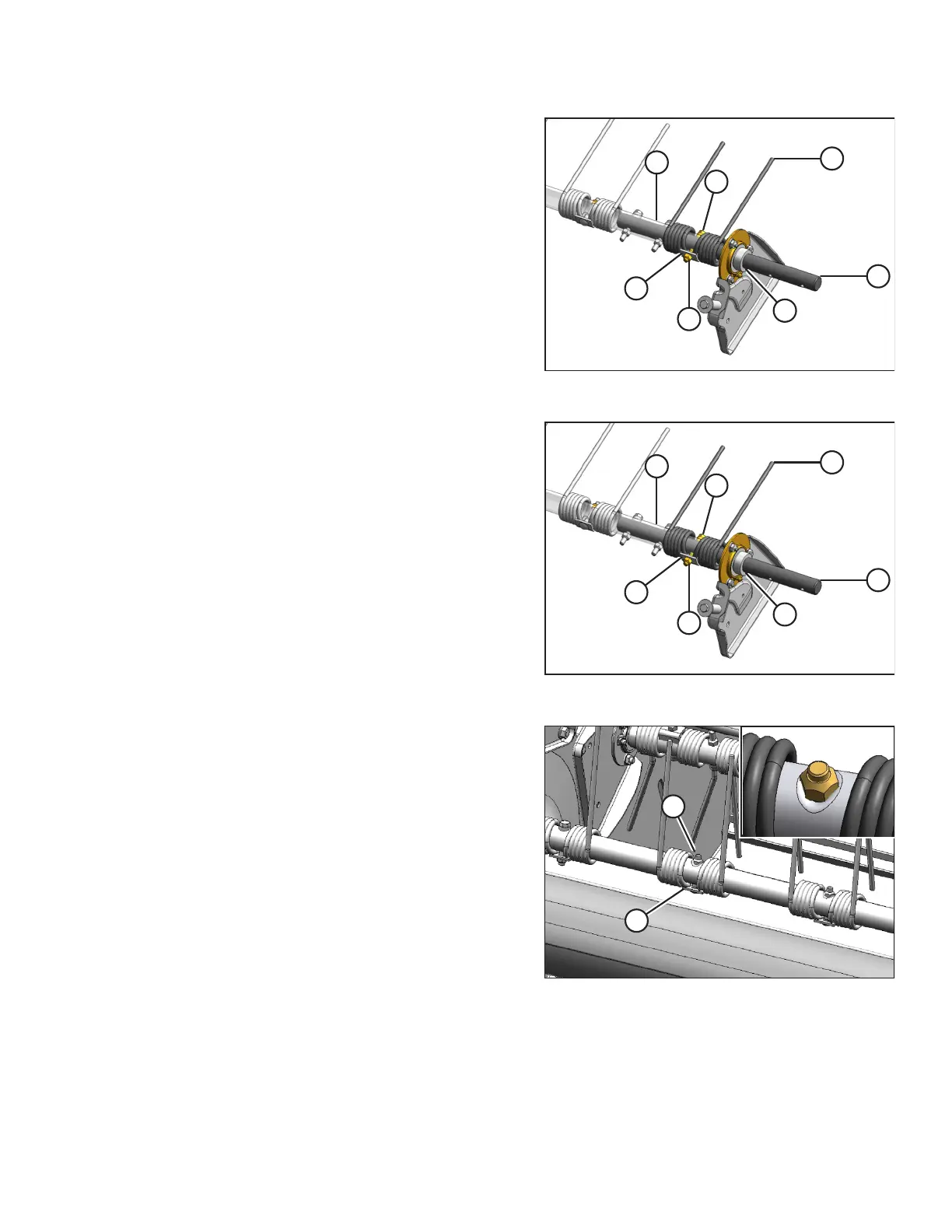

Figure 4.105: Tine Bar Type B
17. Remove bearing (A) from tine bar connecting shaft (B).
Refer to 4.6.3 Installing Sealed Bearings, page 141.
18. Remove nut (C), shoulder bolt (D), and keeper (E) from left
tine bar (F) and remove tine (G).
Figure 4.106: Tine Bar Type B
19. Install new tine (G) onto left tine bar (F) with shoulder
bolt (D), keeper (E), and nut (C).
20. Assemble new bearing (A) with flangettes onto connecting
shaft (B). Refer to 4.6.3 Installing Sealed Bearings, page
141.
Figure 4.107: Tine Installation
21. Replace the tines as follows:
a. Remove bolt (A) and keeper (B) on the tine to be
replaced.
b. Remove the bolts and the keepers on the tines as
required to facilitate the replacement of the damaged
or worn tine.
c. Slide the tines off the tine bar.
d. Install the replacement tine on the tine bar and secure
it with bolt (A) and keeper (B). Install the nut with the
flat side against the tine bar.
e. Slide the remaining tines onto the tine bar and attach
them to tine bar. Do NOT install the bolts in the end
tines at this time.
