MacDon A40D - Page 200

262334 182 Revision A
1012038
A
B
E
E
F
D
C
G

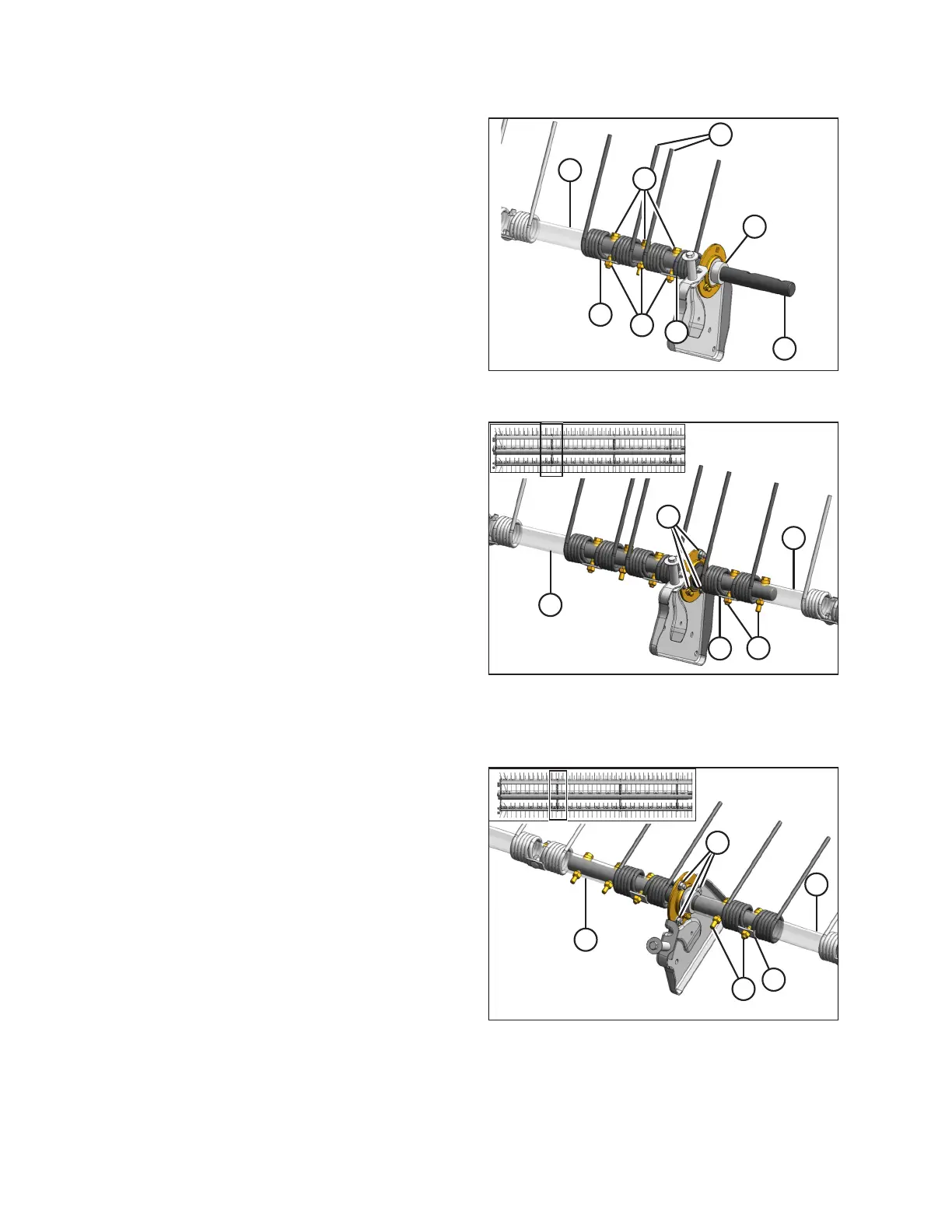

Figure 4.102: Tine Bar Type A
8. Install end tines (G) onto left tine bar (F) with shoulder
bolts (D), keepers (E), and nuts (C).
9. Assemble new bearing (A) with flangettes onto connecting
shaft (B). Refer to 4.6.3 Installing Sealed Bearings, page
141.
1012035
C
D
E
A
B
Figure 4.103: Tine Bar Type A
10. Slip the new tine onto center tine bar (E).
11. Assemble left tine bar (D) to center tine bar (E) and secure
it with shoulder bolts (B), keeper (C), and nuts.
12. Install the tine bar onto reel disc with hardware (A). Tighten
the bolts to 31–36 Nm (23–26 lbf·ft).
Type B tine bars
1012037
C
D
E
A
B
Figure 4.104: Tine Bar Type B
13. Remove flangette mounting bolts (A) at reel disc #2.
14. Remove shoulder bolts (B) and keeper (C) from tine bar.
15. Separate left tine bar (D) with bearing from center tine
bar (E).
16. Remove the tine from center tine bar (E).
MAINTENANCE AND SERVICING
