MacDon A40D - Page 199

262334 181 Revision A
Type A tine bars
1012035
C
D
E
A
B

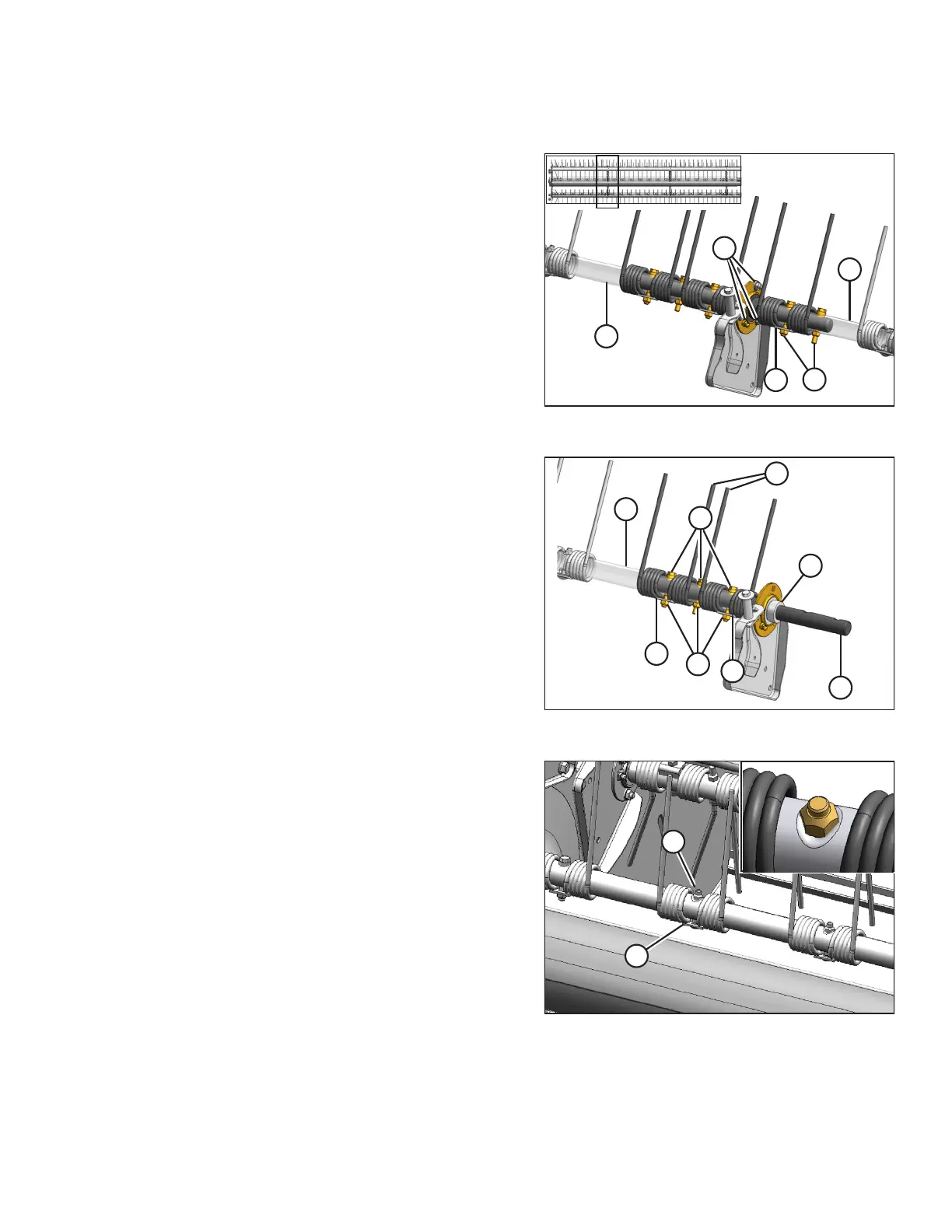

Figure 4.99: Tine Bar Type A
1. Remove flangette mounting bolts (A) at reel disc #2.
2. Remove shoulder bolts (B) and keeper (C) from the tine bar.
3. Separate left tine bar (D) with bearing from center tine
bar (E).
4. Remove the tine from center tine bar (E).
1012038
A
B
E
E
F
D
C
G
Figure 4.100: Tine Bar Type A
5. Remove bearing (A) from tine bar connecting shaft (B).
Refer to 4.6.3 Installing Sealed Bearings, page 141.
6. Remove nuts (C), shoulder bolts (D), keepers (E) from left
tine bar (F) and remove tines (G).
1005911
A
B
Figure 4.101: Tine Installation
7. Replace the tines as follows:
a. Remove bolt (A) and keeper (B) on the tine to be
replaced.
b. Remove the bolts and the keepers on the tines as
required to facilitate the replacement of the damaged
or worn tine.
c. Slide the tines off the tine bar.
d. Install the replacement tine on the tine bar and secure
it with bolt (A) and keeper (B). Install the nut with the
flat side against the tine bar.
e. Slide the remaining tines onto the tine bar and attach
them to the tine bar. Do NOT install the bolts in the
end tines at this time.
MAINTENANCE AND SERVICING
