MacDon A40D - Removing Header Drive Motor

262334 205 Revision A
1005183
A
B
C

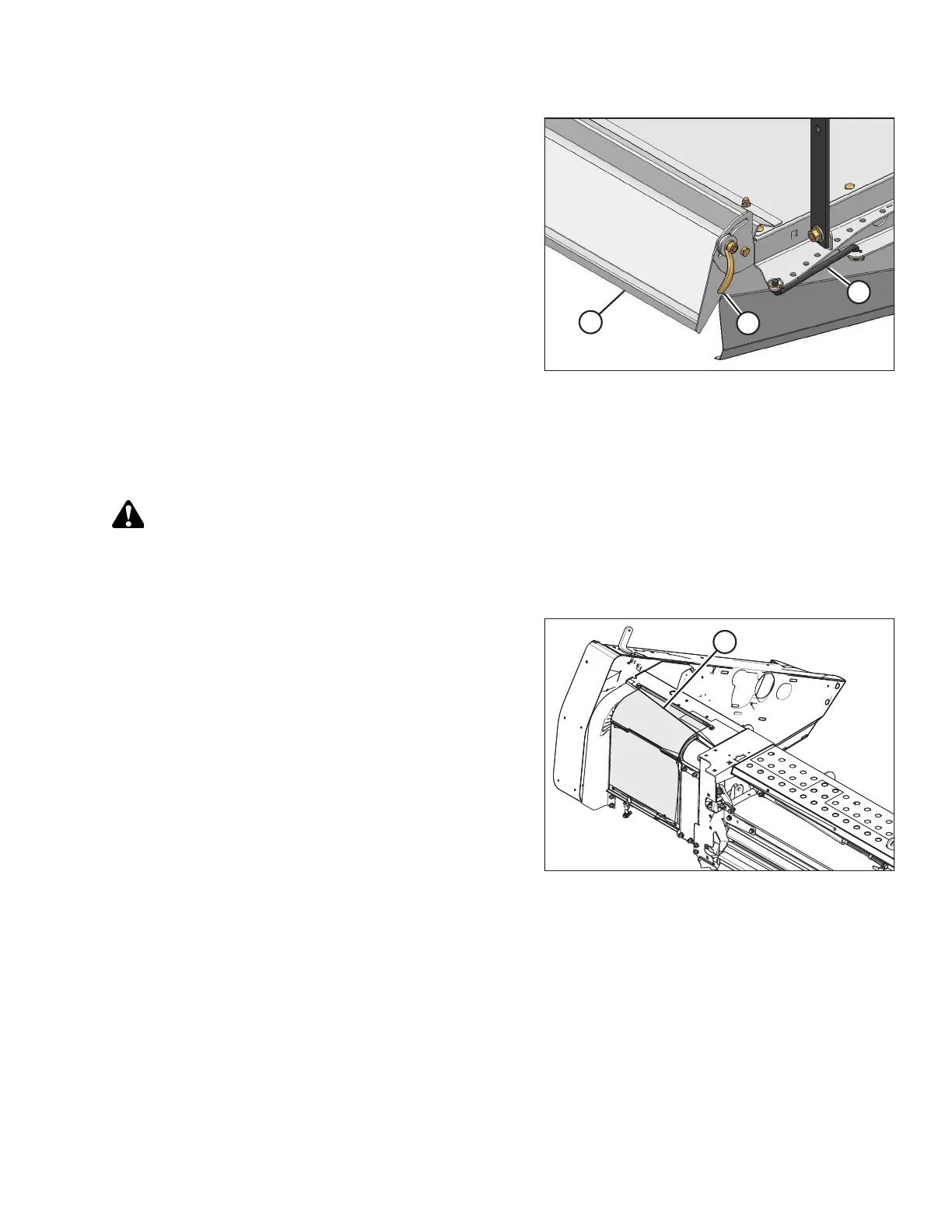

Figure 4.150: Side Deflectors and Fluffer Shield
7. Set the forming shield side deflectors to the desired width
by positioning adjuster bars (A). Use the same hole location
on both sides.
• Position the deflectors at the narrowest setting for a
narrow windrow (silage for example).
• Position the deflectors at the widest setting for a wide
windrow.
Refer to 3.8.15 Positioning Forming Shields, page 103.
8. Adjust fluffer shield (C) to the middle position. Loosen
handles (B) if required. For instructions, refer to Positioning
Rear Deflector (Fluffer Shield), page 104.
4.14.6 Removing Header Drive Motor
This procedure applies to A40D and A40DX Auger Headers (excluding Grass Seed A40D and Grass Seed A40DX).
DANGER
To avoid bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
1013745
A
Figure 4.151: Driveshield
2. Open driveshield (A). For instruction, refer to 4.2 Opening/
Closing Driveshield, page 126.
IMPORTANT:
Mark the hoses and make a diagram of the hose routing.
This will be useful during reassembly.
3. Disconnect the hoses at the couplers on the motor.
MAINTENANCE AND SERVICING
