3.2 Detaching A40DX Auger Header from M2 Series Windrower
Detaching the A40DX electrical and hydraulic connections from the windrower is a simple procedure because of the
multicoupler.
Refer to your windrower operator’s manual for procedures to mechanically detach the auger header from the M2 Series
Windrower.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key before leaving the operator’s seat, and always engage the safety props before going under the
machine for any reason.
1. Shut down the engine, and remove the key from the ignition.
1015479
A
B

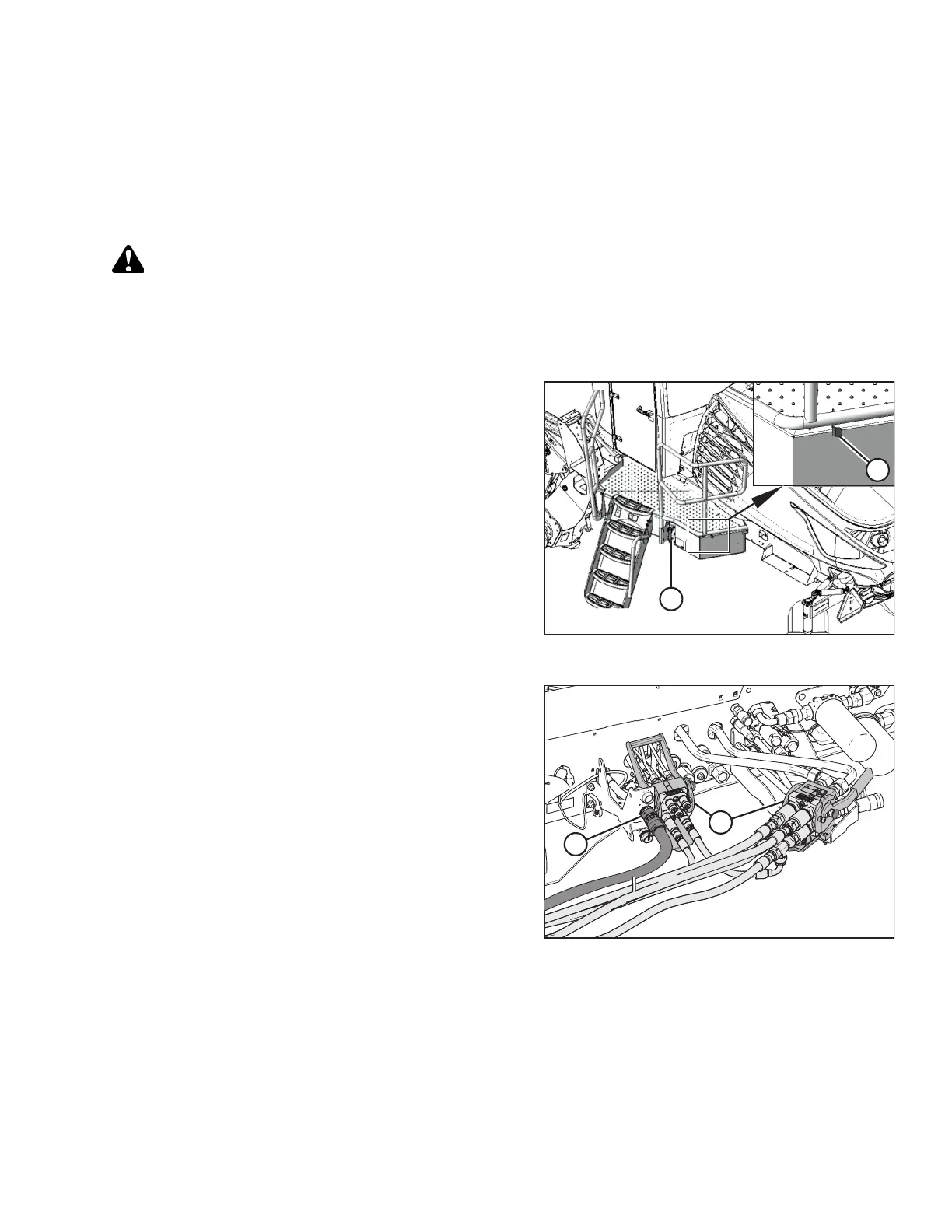

Figure 3.9: Left Platform
2. Approach platform (A) on the left side of the windrower.
Ensure that the cab door is closed.
3. Push latch (B) and pull platform (A) toward the walking
beam until it stops and the latch engages.
ϭϬϰϮϯϲϬ
A
B
Figure 3.10: Header Drive Hydraulics
4. Disconnect header drive hydraulics (A) and electrical
harness (B) from the windrower.
