MacDon A40D - Removing Tall Crop Dividers

262334 120 Revision A
3.13.2 Removing Tall Crop Dividers
Follow these steps to remove the tall crop dividers.
1005772
A
B

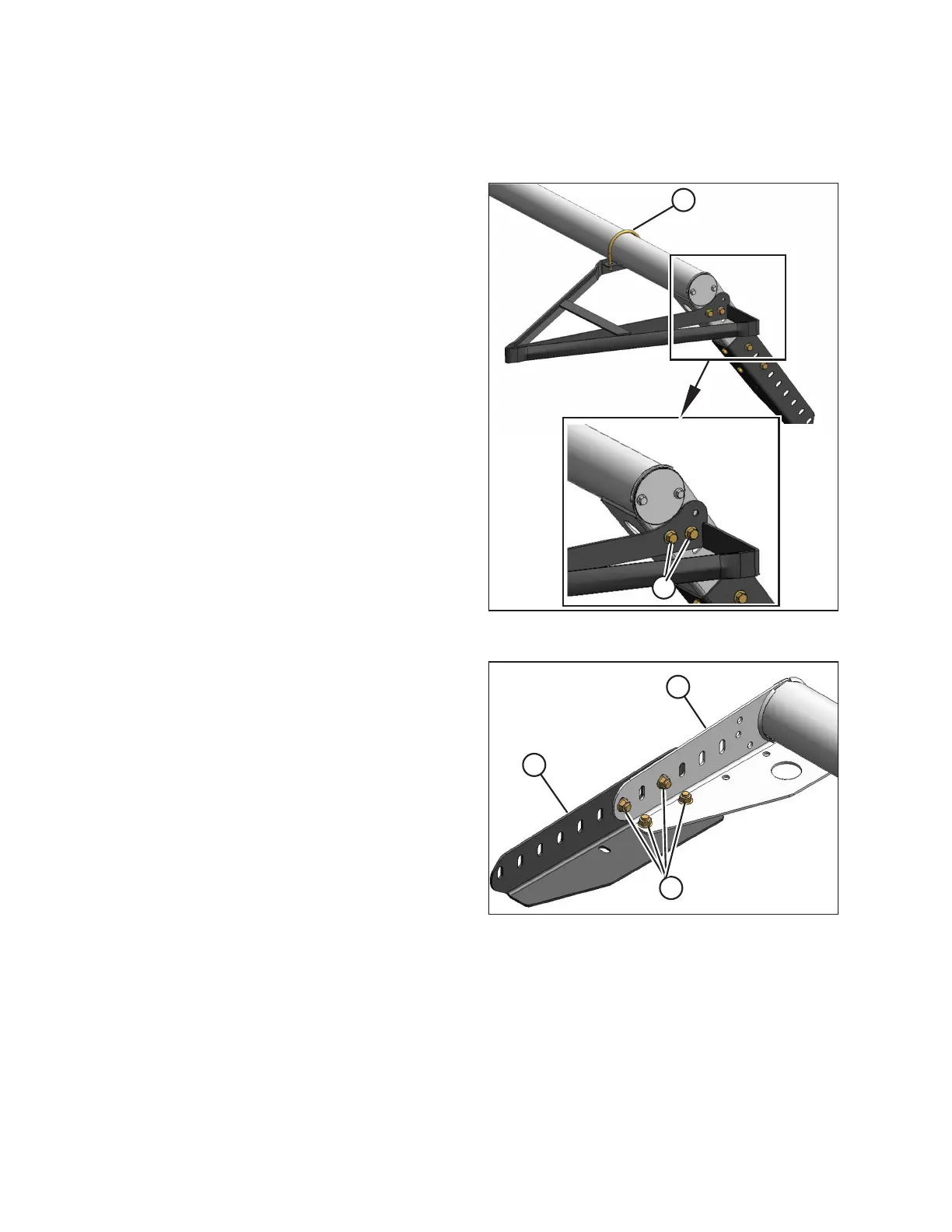

Figure 3.174: Tall Crop Divider
1. Remove U-bolt (A) and bolts (B), and remove the divider.
Repeat for the other divider.
2. Remove the bolts attaching the lean bar to the header.
1005769
A
B
C
Figure 3.175: Lean Bar
3. Remove bolts (A) attaching extensions (B) to lean bar (C),
and remove the extensions.
