MacDon A40D - Chapter 3: Operation; Attaching A40 DX Auger Header to M2 Series Windrower

262334 29 Revision A
Chapter 3: Operation
This chapter will describe the operating procedures for the A40D and A40DX Windrower Auger Header.
3.1 Attaching A40DX Auger Header to M2 Series Windrower
The header’s hydraulic and electrical multicoupler will need to be connected to the windrower before operation.
Refer to your windrower operator’s manual for procedures to mechanically attach an A40DX Auger Header to an M2 Series
Windrower and for modifications to the windrower hydraulic connections (if required).
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
IMPORTANT:
To prevent contamination of the hydraulic system, use a clean rag to remove dirt and moisture from all (fixed and
movable) hydraulic couplers.
1. Shut down the engine, and remove the key from the ignition.
1015479
A
B

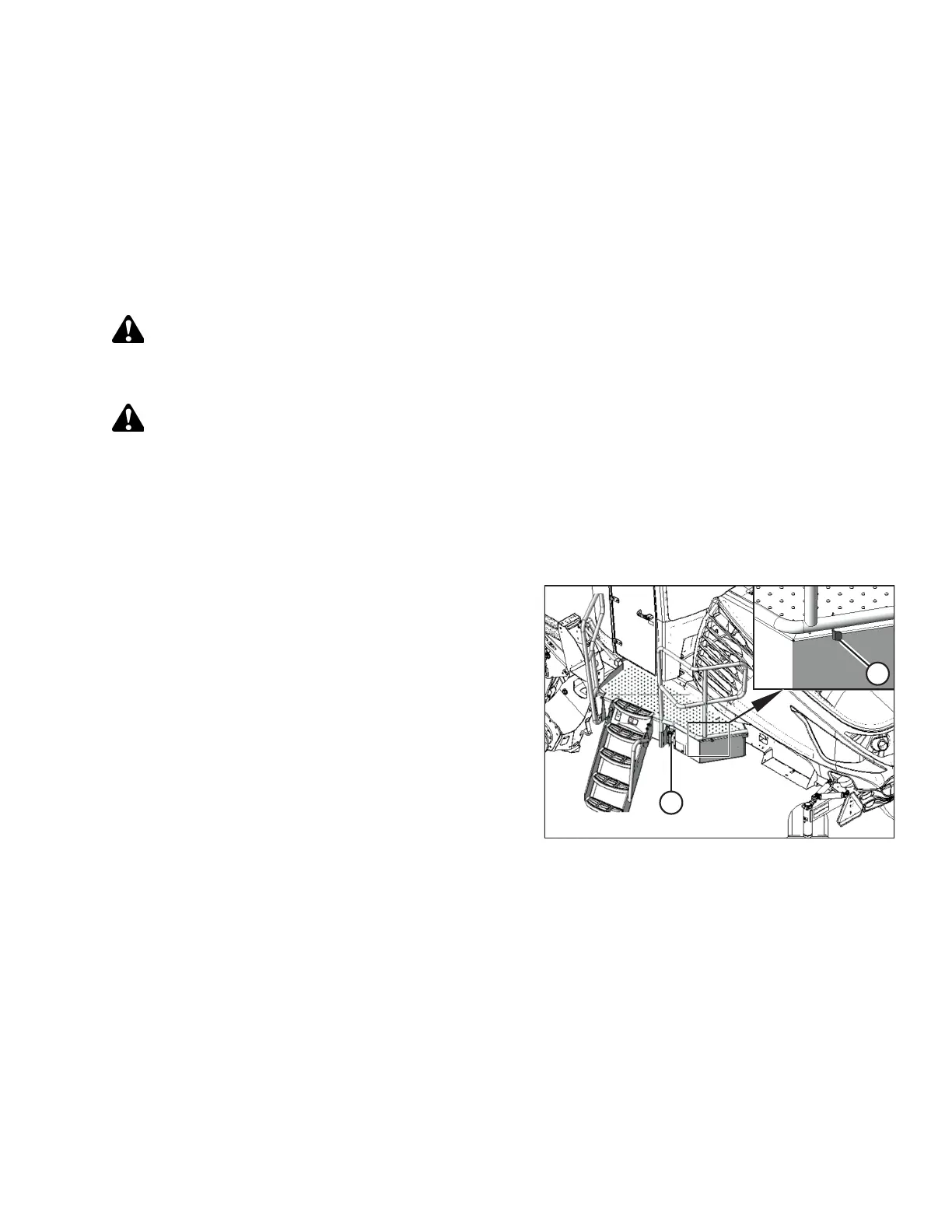

Figure 3.1: Left Platform
2. Approach platform (A) on the left side of the windrower.
Ensure that the cab door is closed.
3. Push latch (B) and pull platform (A) toward the walking
beam until it stops and the latch engages.
