262334 114 Revision A

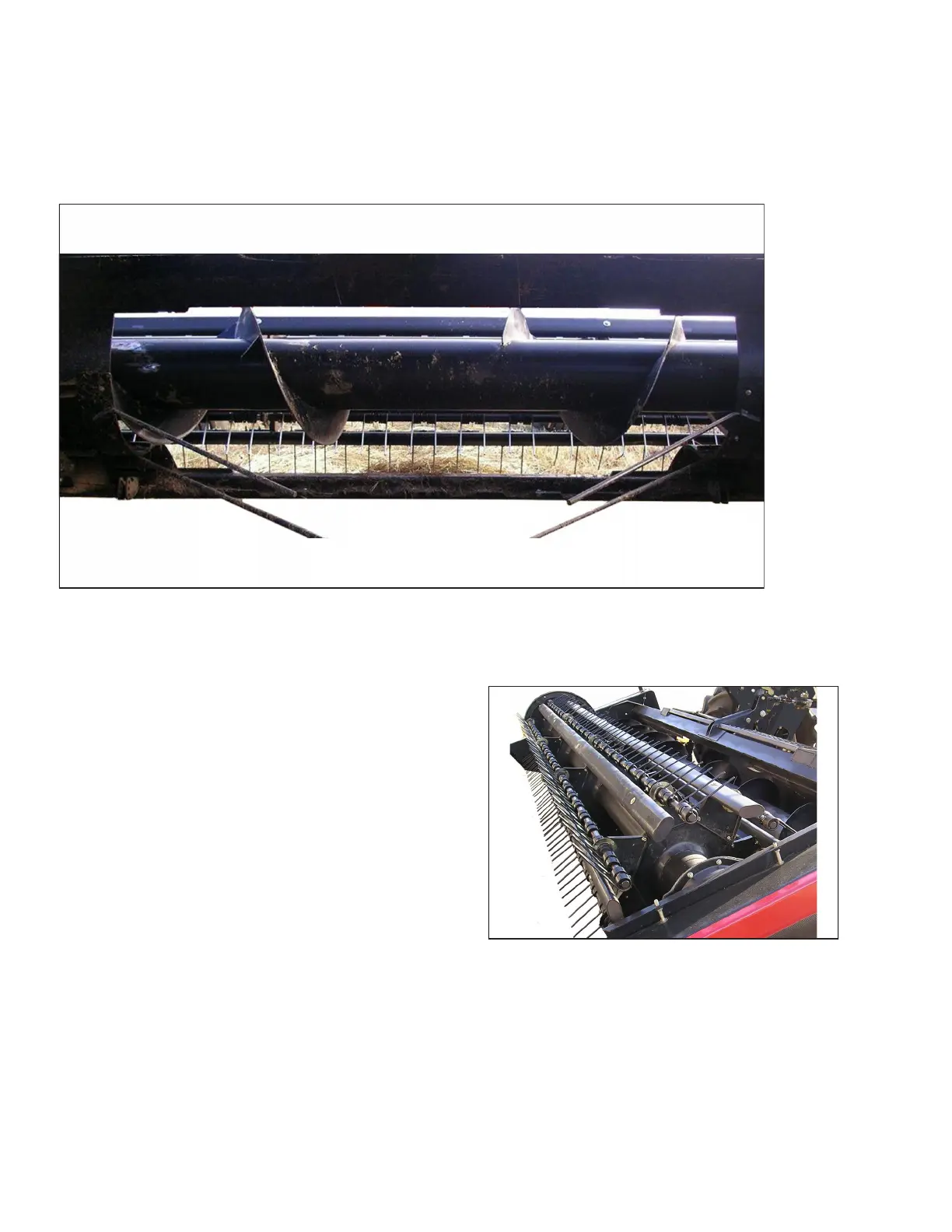

3.11.2 Special Auger Design for Grass Seed Special
The center beaters and the beater supports have been removed to reduce auger wrapping.
Figure 3.164: Grass Seed Auger
3.11.3 Seven-Bat Reel
A seventh bat is added to the reel body, for smoother reel action and better crop feed into the header.
Figure 3.165: Grass Seed Reel
OPERATION
