262334 100 Revision A
3. Lower the header fully with the lift cylinders fully retracted.
4. Set left and right float fine adjustments to mid-range position (5.0 on the cab display module). For instructions, refer to
your windrower operator’s manual.
5. Shut down the engine, and remove the key from the ignition.
6. Check the float by grasping the lean bar and lifting. The lifting force should be 335–380 N (75–85 lbf) and should be
approximately the same at both ends.

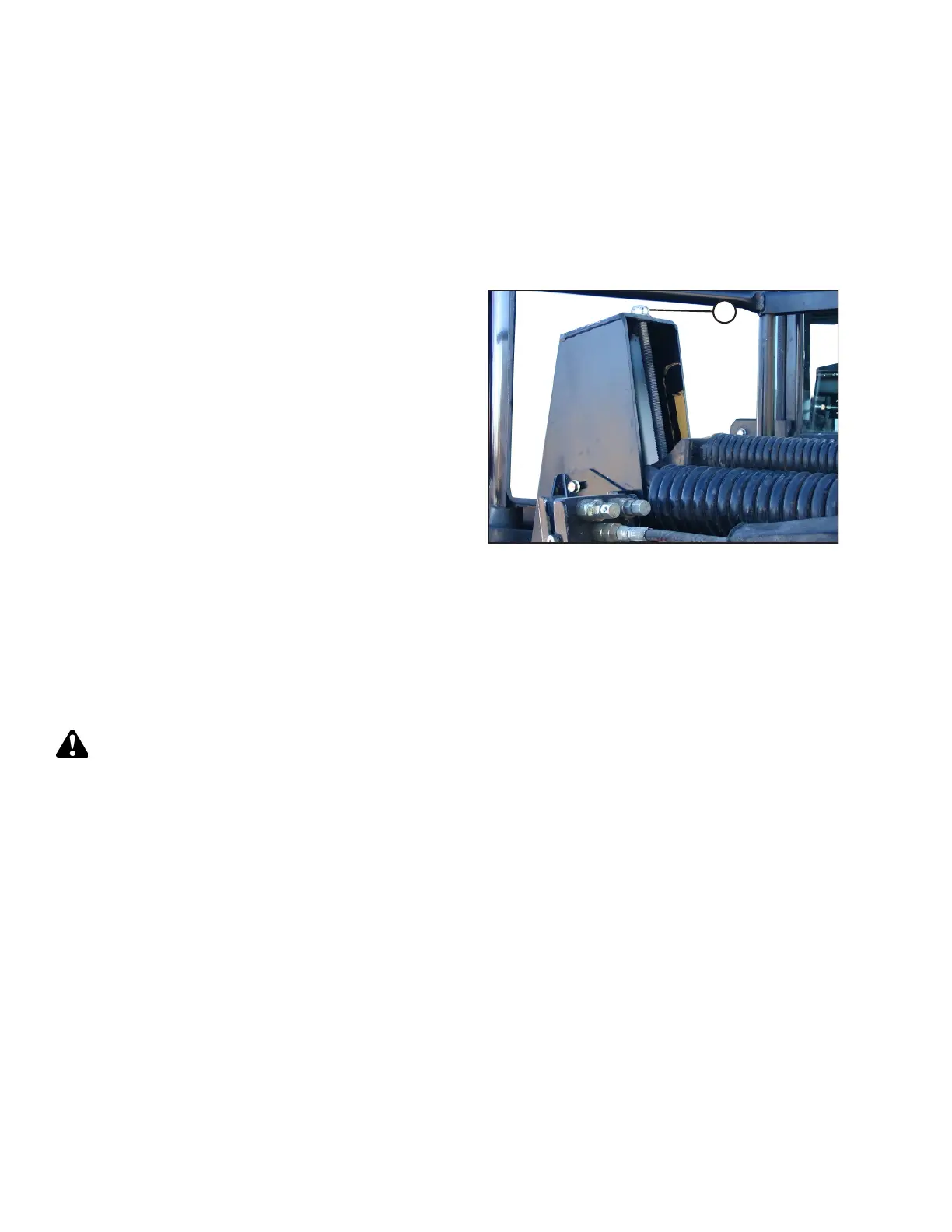

Figure 3.152: Drawbolt
7. If necessary, perform the following steps to adjust the float:
a. Raise the header fully, shut down the engine, and
remove the key from the ignition.
b. Turn drawbolt (A) clockwise to increase the float
(makes the header lighter) or counterclockwise to
decrease the float (makes the header heavier).
NOTE:
The illustration shows the top of the windrower wheel
leg member.
c. Recheck the float.
3.8.12 Setting Feed Pan and Rock Drop Tine Position
The rear of the feed pan is adjustable up and down to raise or lower the feed pan and rock drop tines.
• Lowering the feed-pan helps prevent plugging in heavy crop.
• Raising the feed-pan helps to form an even windrow in light crop.
DANGER
To avoid bodily injury or death from fall of raised machine, always lock-out lift cylinders before going under header for
any reason.
1. Raise the header fully, and engage the safety props.
2. Shut down the engine, and remove the key from the ignition.
OPERATION
