262334 136 Revision A
Lubrication Points: Auger Header
There are several points on the auger header which will require lubrication.
NOTE:
High Temperature Extreme Pressure (EP2) Performance With 1% Max Molybdenum Disulphide (NLGI Grade 2) Lithium
Base. To prevent binding and/or excessive wear caused by knife pressing on guards, do NOT over-grease the lubrication
points. If more than 6 to 8 pumps of grease gun are required to fill the cavity, replace the seal in the knifehead.

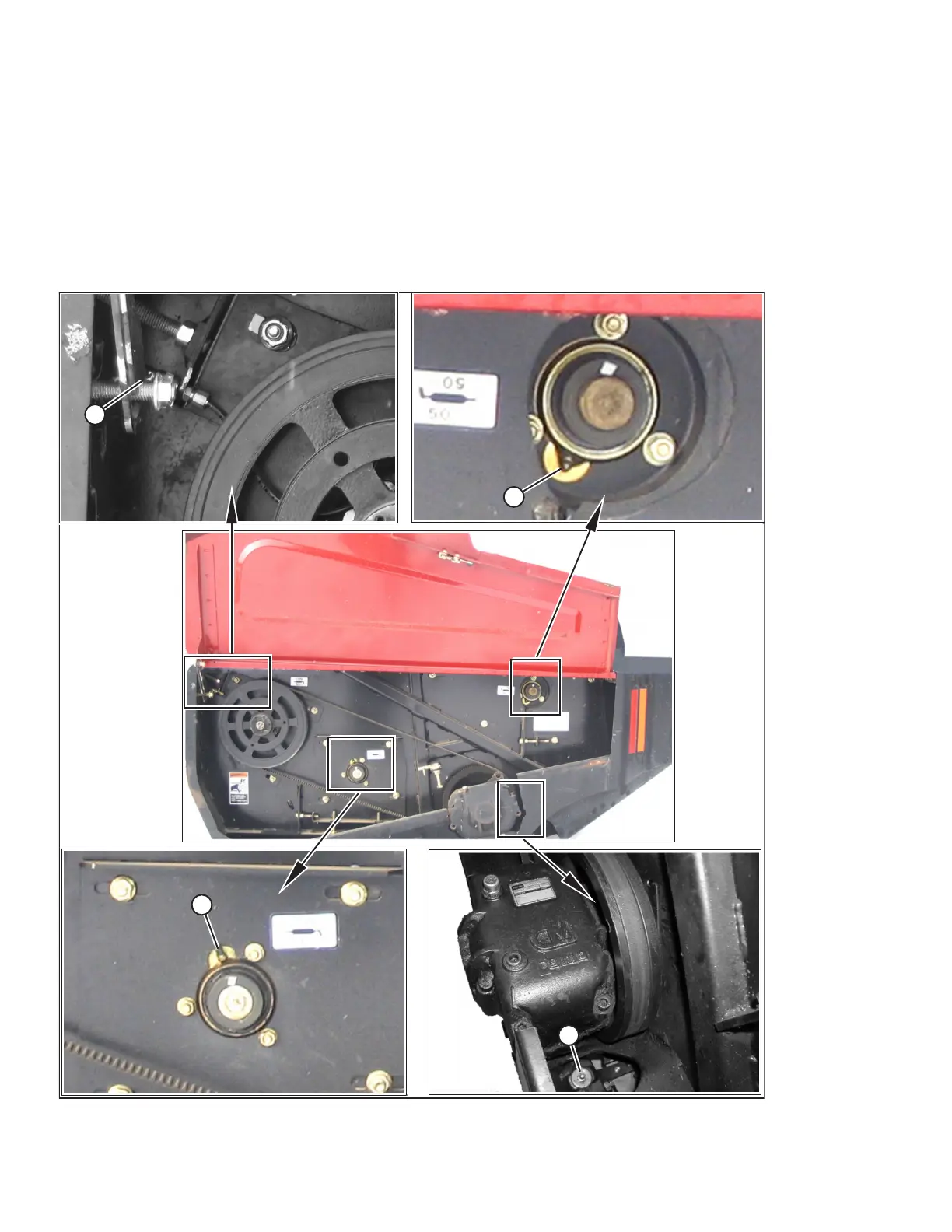

Figure 4.9: A40D, A40DX Header Right Side
A - Knife Drive Bearing (1 Place) (50 Hours) B - Reel Shaft Bearing (1 Place) (50 Hours)
C - Auger Shaft Bearing (1 Place) (50 Hours) D - Knifehead Bearing (1 Place) (25 Hours)
MAINTENANCE AND SERVICING
To Next Page
