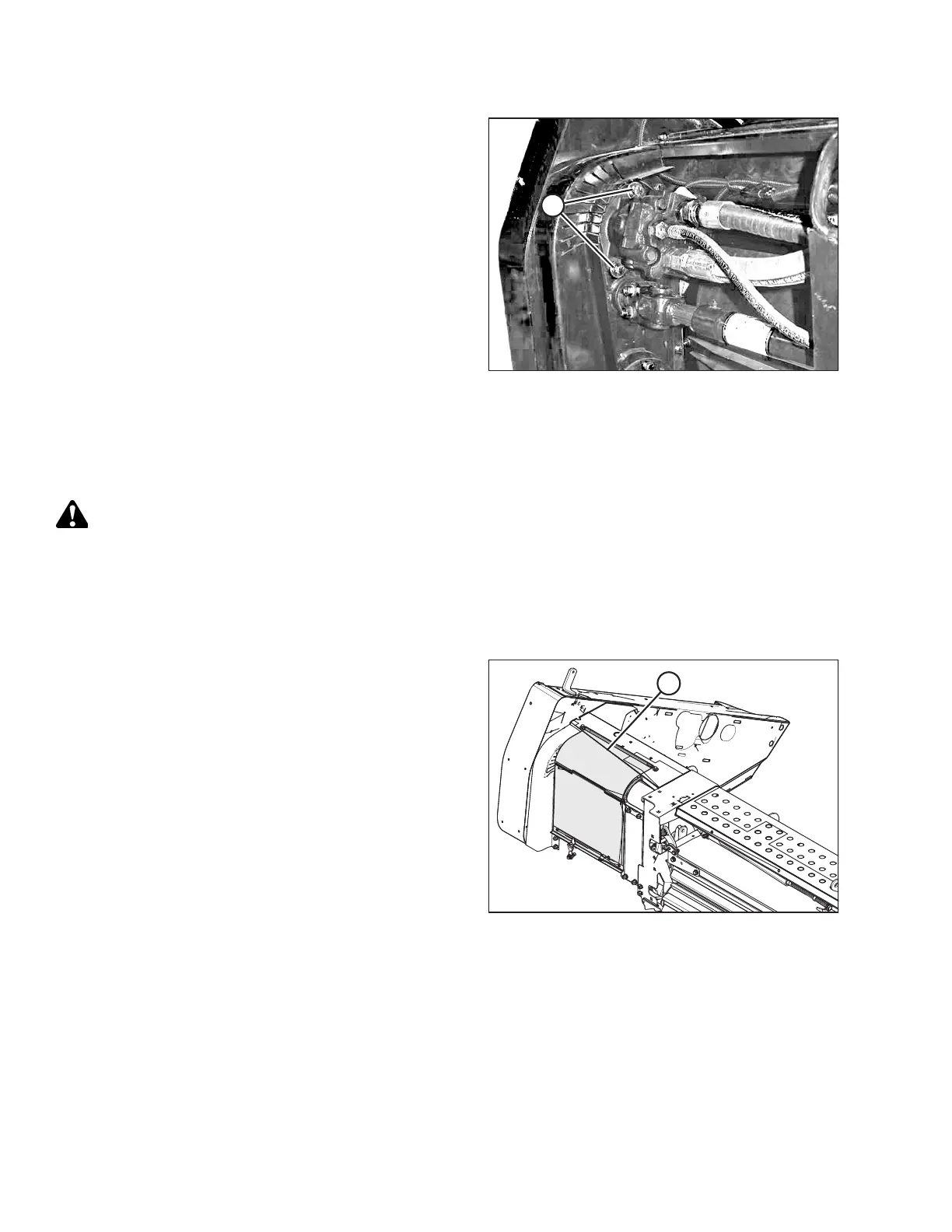

Figure 4.152: Header Drive Motor
4. Remove two bolts (A) securing the motor to the gearbox,
and remove the motor.
4.14.7 Installing Header Drive Motor
This procedure applies to A40D and A40DX Auger Headers (excluding Grass Seed A40D and Grass Seed A40DX).
DANGER
To avoid bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Install the hydraulic motor onto the gearbox as follows:
1. Shut down the engine, and remove the key from the ignition.
1013745
A
Figure 4.153: Driveshield
2. Open driveshield (A). For instruction, refer to 4.2 Opening/
Closing Driveshield, page 126.
