MacDon A40D - Attaching A40 D Auger Header to an M205 Self-Propelled Windrower

262334 59 Revision A
3.5.4 Attaching A40D Auger Header to an M205 Self-Propelled Windrower
The header’s hydraulic multicoupler must be connected to the windrower before operation.
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1005655

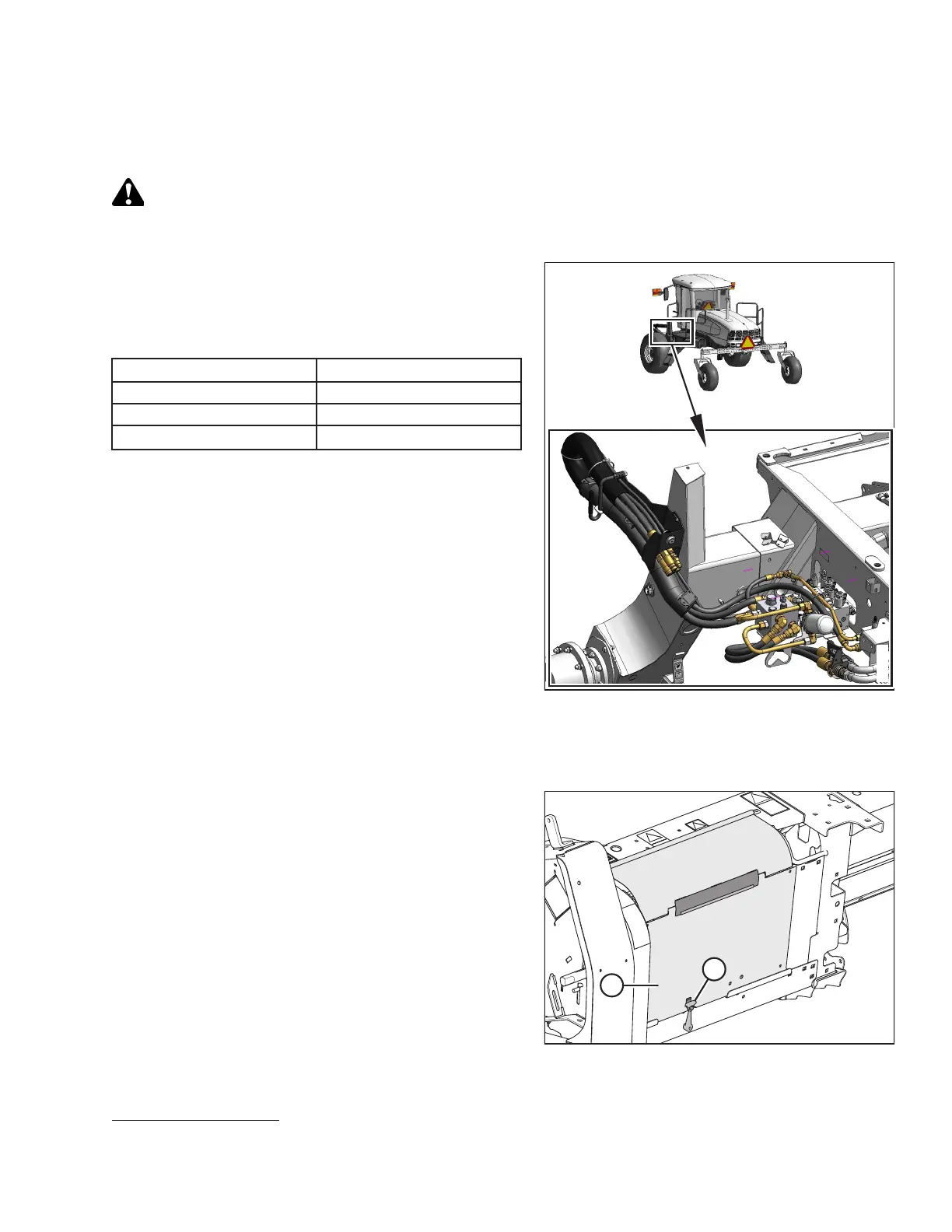

Figure 3.69: Auger Drive Basic Kit and Completion Kit
Installed
The M205 Self-Propelled Windrower must be equipped with an
auger drive basic kit and a completion kit as shown at right. If
necessary, order and install the following kits shown in the table
below. Installation instructions are supplied with the kits.
Kit Description
MacDon Part Number
Base kit
B5491
Reverser kit
1
B5492
Coupler
B5497
1. Shut down the engine, and remove the key from the ignition.
1023840
A
B
Figure 3.70: Driveshield – Headers Sold in North
America
2. Headers sold in North America: Disengage rubber latch (A)
and open driveshield (B).
OPERATION
1. Reverser kit is REQUIRED. Install prior to hook-up.
