MacDon A40D - Page 76

262334 58 Revision A
1005272
A
B

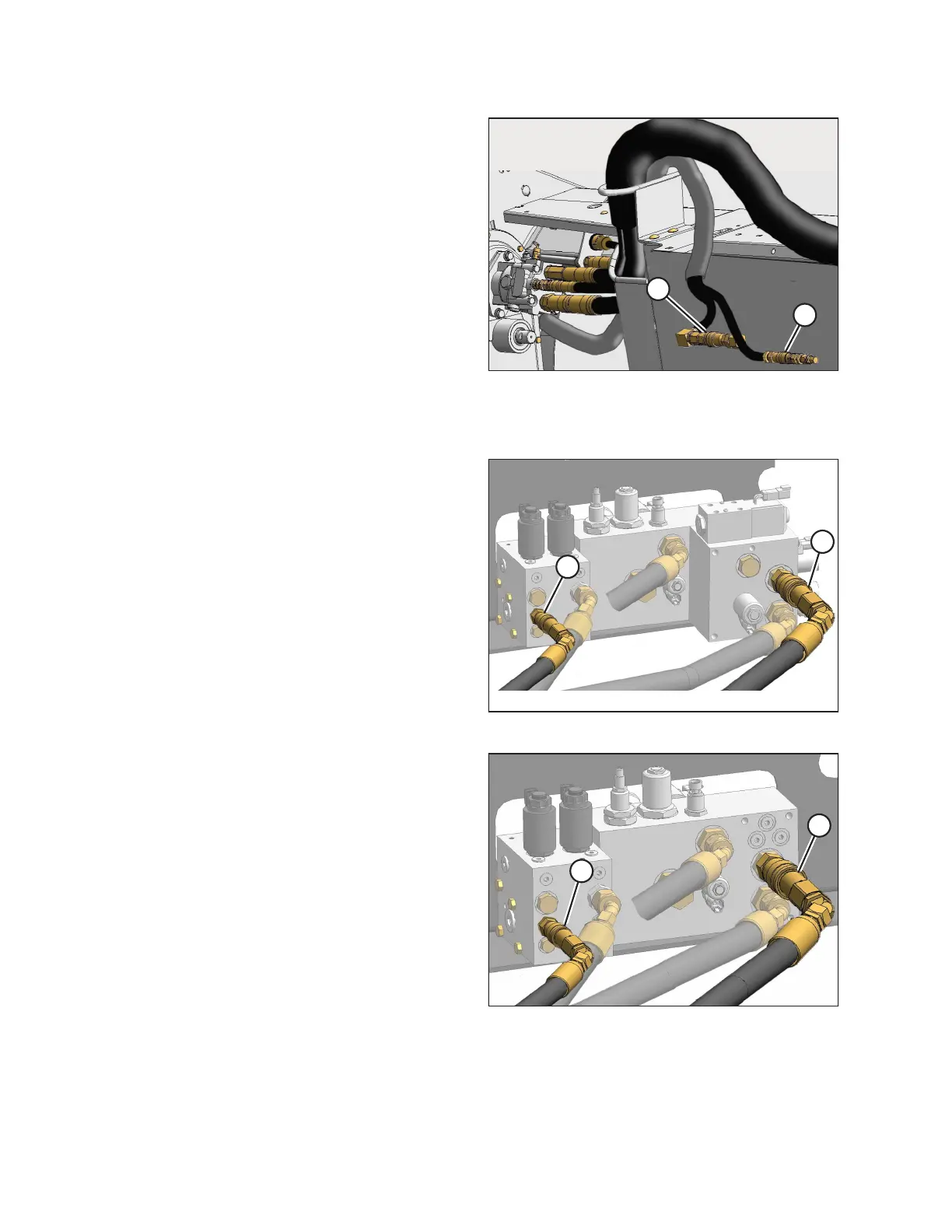

Figure 3.66: Auger Pressure and Auger/Reel Return
Hose Couplers – 4.3 m and 4.9 m (14 ft. and 16 ft.)
Header Shown (5.5 m [18 ft.] Header Similar)
16. Locate auger pressure (A) and auger/reel return (B) hoses.
1005276
A
B
Figure 3.67: M200 with Reverser Valve
1005277
A
B
Figure 3.68: M200 without Reverser Valve
17. Push auger pressure (A) and auger/reel return (B) hose
couplers onto the mating receptacles on the valve block
until the collar on the receptacle snaps into the lock
position.
18. If valve blocks are NOT configured as shown above, install
the required fittings as described in the unloading and
assembly instructions supplied with your A40D Auger
Header.
19. Proceed to 3.5.5 Configuring Reverser Valve Jumper Hose for A40D Auger Header, page 64.
OPERATION
