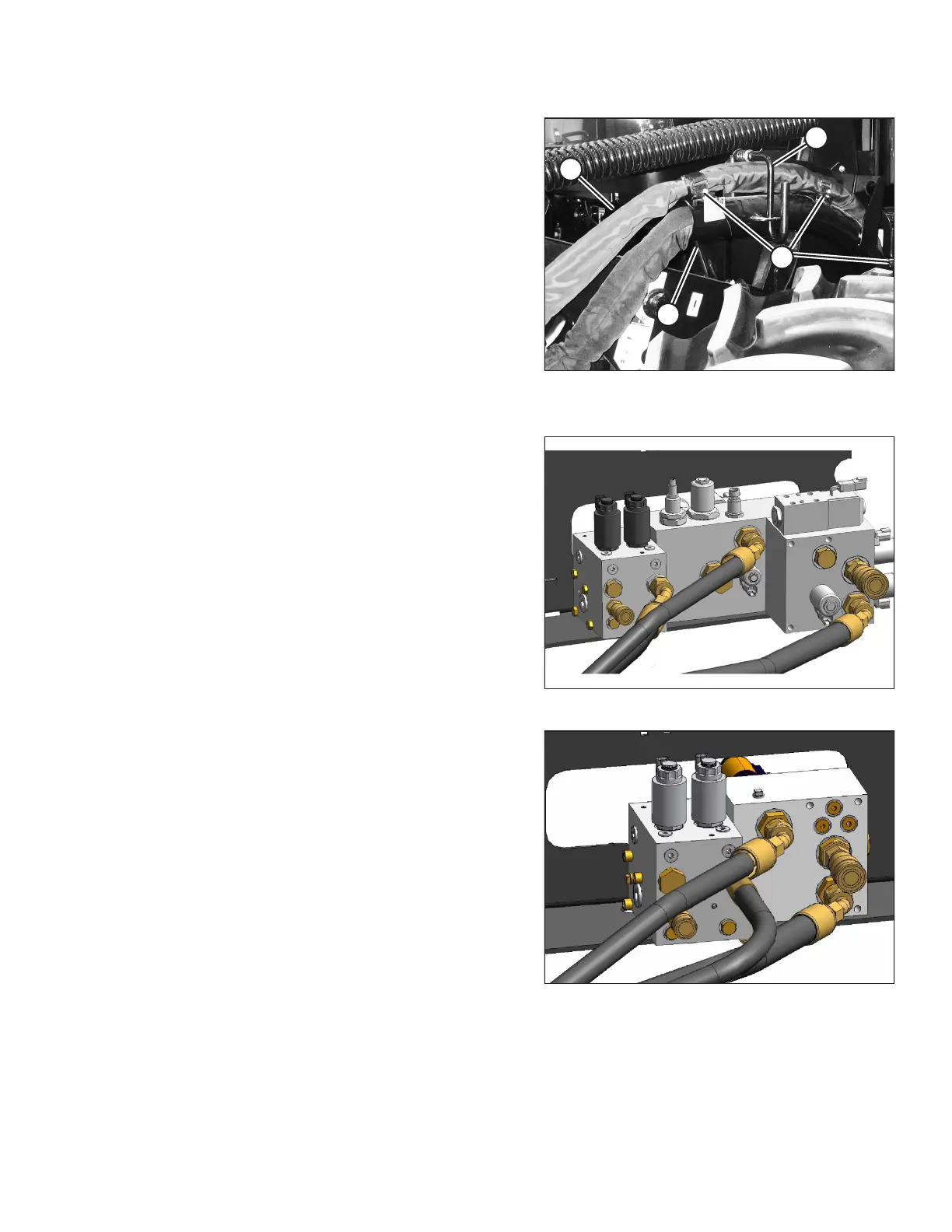

Figure 3.63: Auger Return and Reel Pressure
Hose Bundle
13. Route the auger return and reel pressure hose bundle (A)
from the header to the windrower, and position the bundle
above existing hose support (C) as shown.
14. Secure the bundle with three straps (D), and lower
lever (B).
Figure 3.64: M200 with Reverser Valve
Figure 3.65: M200 without Reverser Valve
15. If valve blocks are NOT configured as shown at right, install
the required fittings as described in the unloading and
assembly instructions supplied with your A40D Auger
Header.
