262334 84 Revision A

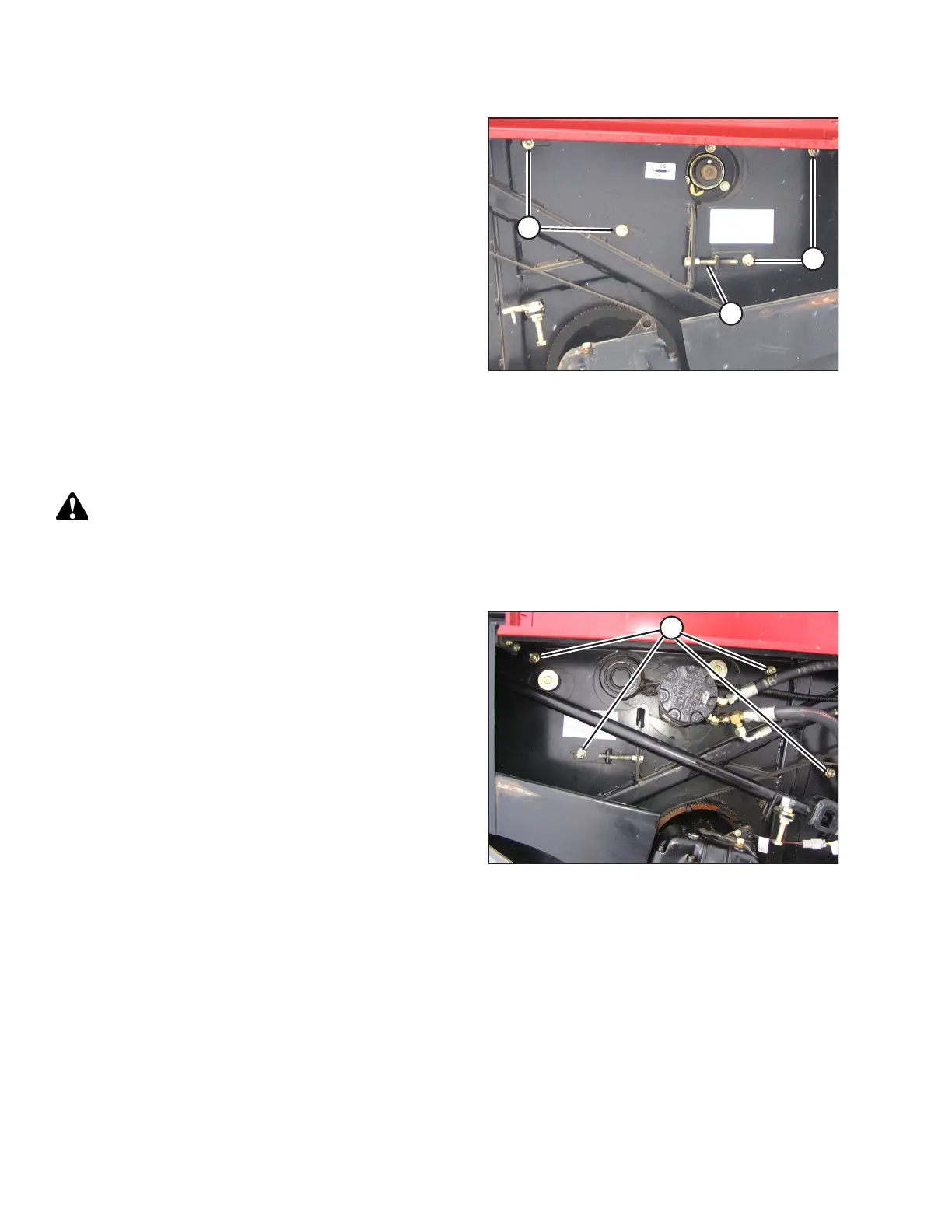

Figure 3.116: Auger Header Right Side
7. Open the right endshield.
8. Loosen four nuts (A).
9. Loosen the jam nut on adjuster bolt (B), and turn bolt (B) to
adjust the reel fore-aft position.
10. Tighten the jam nut.
11. Tighten nuts (A).
12. Close the driveshields before engaging the header.
Adjusting Reel Vertical Position
Follow this procedure to adjust the reel vertical position.
WARNING
To prevent accidental movement of windrower, return ground speed lever (GSL) to Park, center steering wheel to lock,
shut off engine, and remove key.
1. Shut down the engine, and remove the key from the ignition.
Figure 3.117: Auger Header Left Side
2. Open the left endshield.
3. Loosen four nuts (A).
OPERATION
