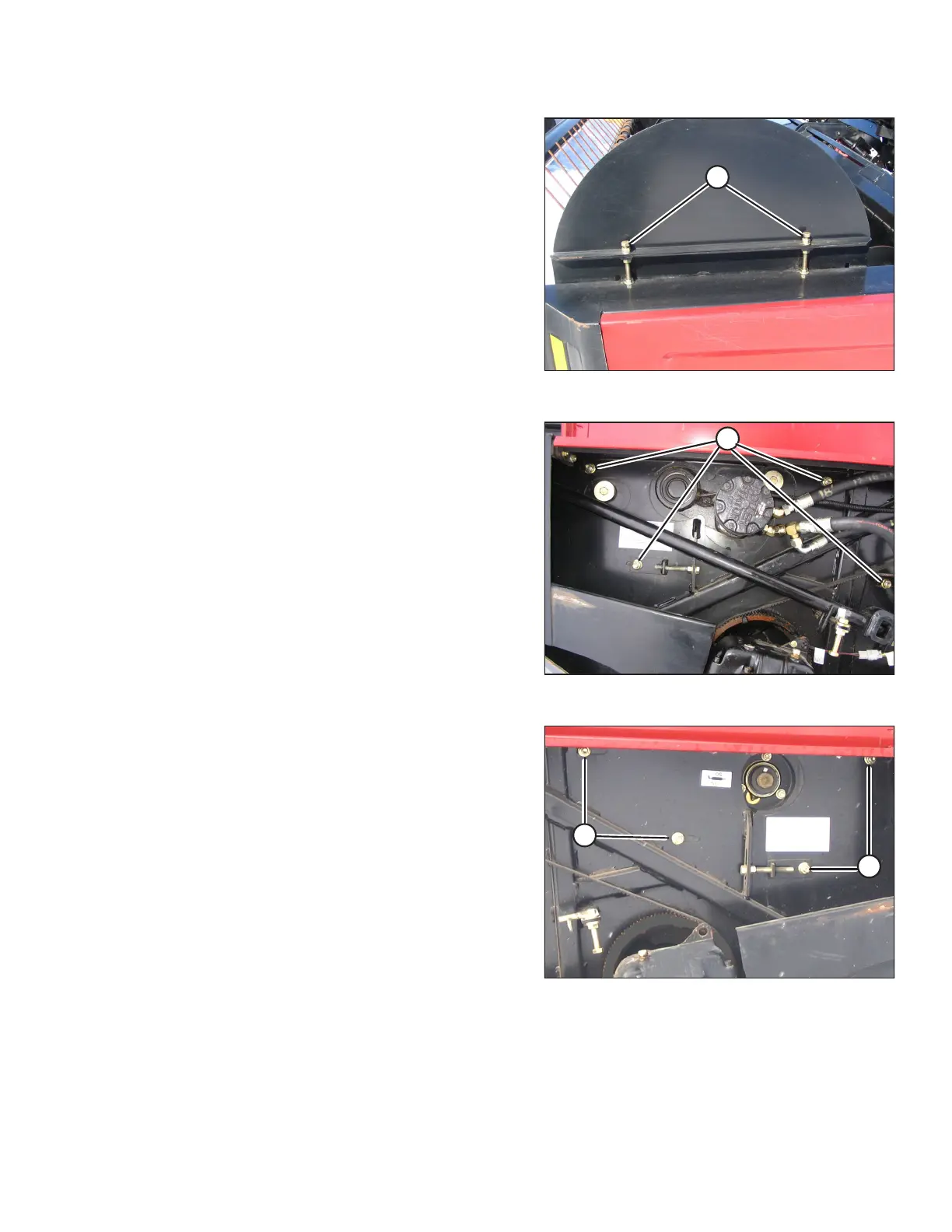

Figure 3.118: Auger Header Left Side
4. Loosen the jam nuts on adjuster bolts (A), and turn bolts (A)
to raise or lower the reel.
5. Tighten jam nuts (A).
1027417
A
Figure 3.119: Auger Header Left Side
6. Tighten nuts (A).
1005668
A
A
Figure 3.120: Auger Header Right Side
7. Open the right endshield.
8. Loosen four nuts (A).
