MacDon A40D - Metric Bolt Specifications - Cast Aluminum

262334 236 Revision A
10013701001370
A

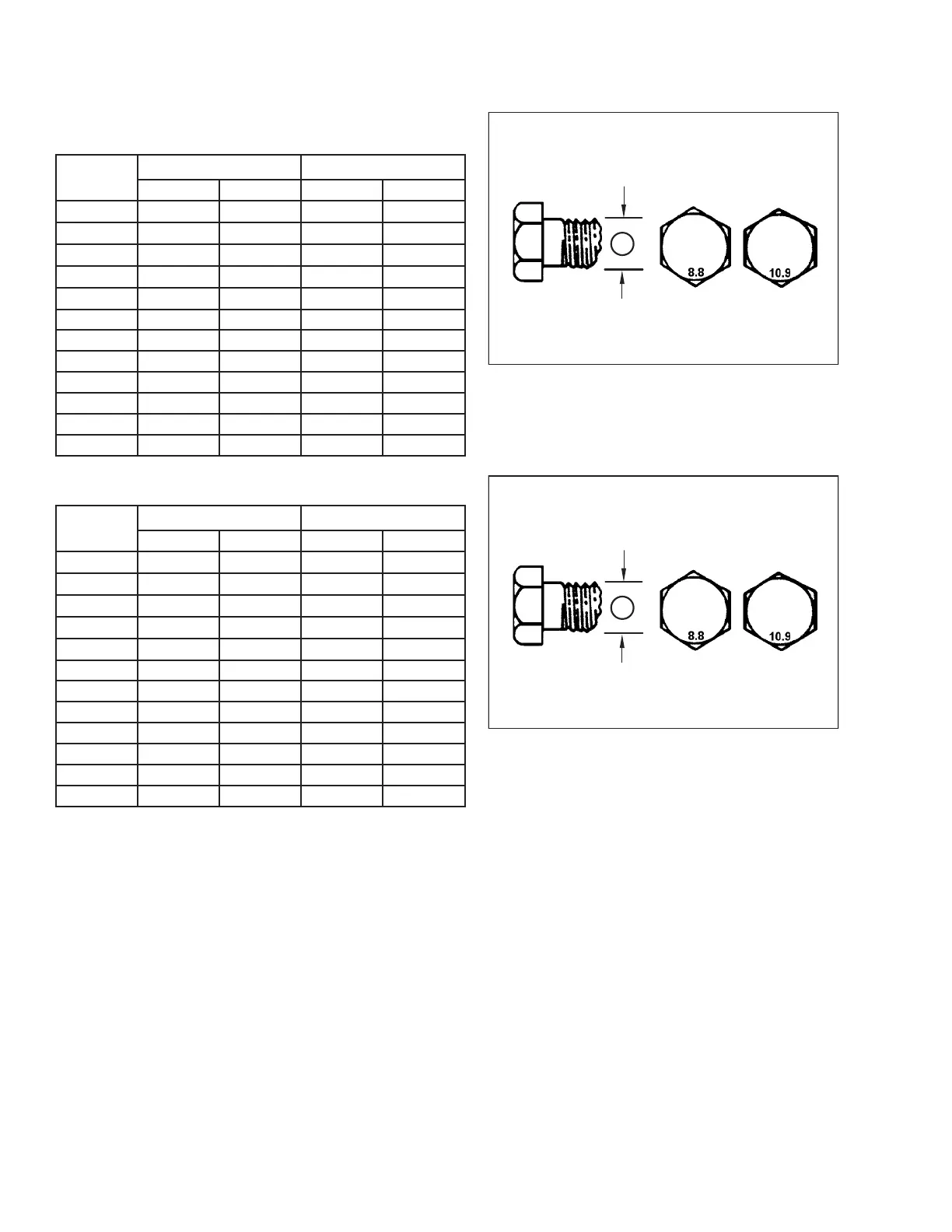

Figure 7.7: Bolt Grades
Table 7.7 Metric Class 10.9 Bolts and Class 10 Free
Spinning Nut
Nominal
Size (A)
Torque (Nm) Torque (lbf·ft) (*lbf·in)
Min.
Max.
Min.
Max.
3-0.5 1.8 2
*18 *19
3.5-0.6 2.8 3.1
*27 *30
4-0.7 4.2
4.6
*41 *45
5-0.8 8.4 9.3
*82 *91
6-1.0 14.3 15.8
*140 *154
8-1.25 38 42 28 31
10-1.5
75
83 56 62
12-1.75 132
145
97 108
14-2.0 210 232 156 172
16-2.0 326 360 242 267
20-2.5 637 704 472 521
24-3.0 1101 1217 815 901
10013701001370
A
Figure 7.8: Bolt Grades
Table 7.8 Metric Class 10.9 Bolts and Class 10 Distorted
Thread Nut
Nominal
Size (A)
Torque (Nm) Torque (lbf·ft) (*lbf·in)
Min.
Max.
Min.
Max.
3-0.5 1.3
1.5
*12 *13
3.5-0.6 2.1 2.3
*19 *21
4-0.7 3.1 3.4
*28 *31
5-0.8 6.3
7
*56 *62
6-1.0 10.7 11.8
*95 *105
8-1.25 26 29 19 21
10-1.5
51 57
38 42
12-1.75 90 99
66
73
14-2.0 143 158 106
117
16-2.0 222 246 165 182
20-2.5 434 480 322 356
24-3.0 750 829 556 614
Metric Bolt Specifications – Cast Aluminum
Specifications are provided for the appropriate final torque values for various sizes of metric bolts in cast aluminum.
NOTE:
The torque values provided in the following metric bolt torque tables apply to hardware installed dry; that is, hardware
with no grease, oil, or threadlocker on the threads or heads. Do NOT add grease, oil, or threadlocker to bolts or cap screws
unless you are directed to do so in this manual.
