MacDon A40D - Opening;Closing Driveshield

262334 126 Revision A
4.2 Opening/Closing Driveshield
This procedure is for opening and closing the driveshield over the conditioner drivelines.
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
Opening driveshield
1. Shut down the engine, and remove the key from the ignition.
1023840
A
B

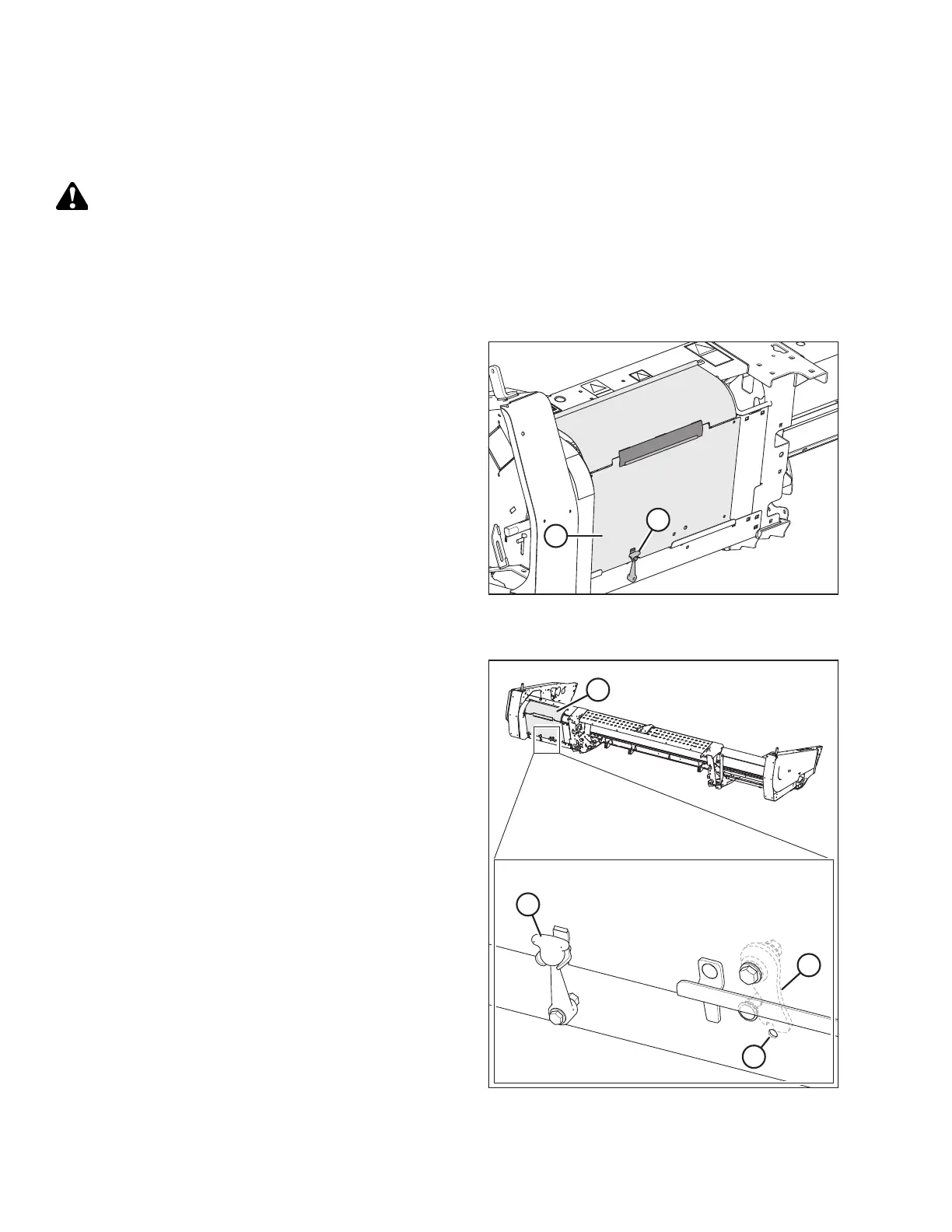

Figure 4.1: Driveshield – Headers Sold in North
America
2. Headers sold in North America: Disengage rubber latch (A)
and open driveshield (B).
1031267
A
B
C
D
Figure 4.2: Driveshield – Headers Sold outside North
America
3. Headers sold outside North America: Insert a tool into
hole (A) and pry to release latch (B). Disengage rubber
latch (C) and open driveshield (D).
MAINTENANCE AND SERVICING
