MacDon A40D - Disassembling Forming Shield

262334 199 Revision A
4.14.3 Disassembling Forming Shield
Follow this procedure to disassemble the forming shield.
1005798
A
B
C

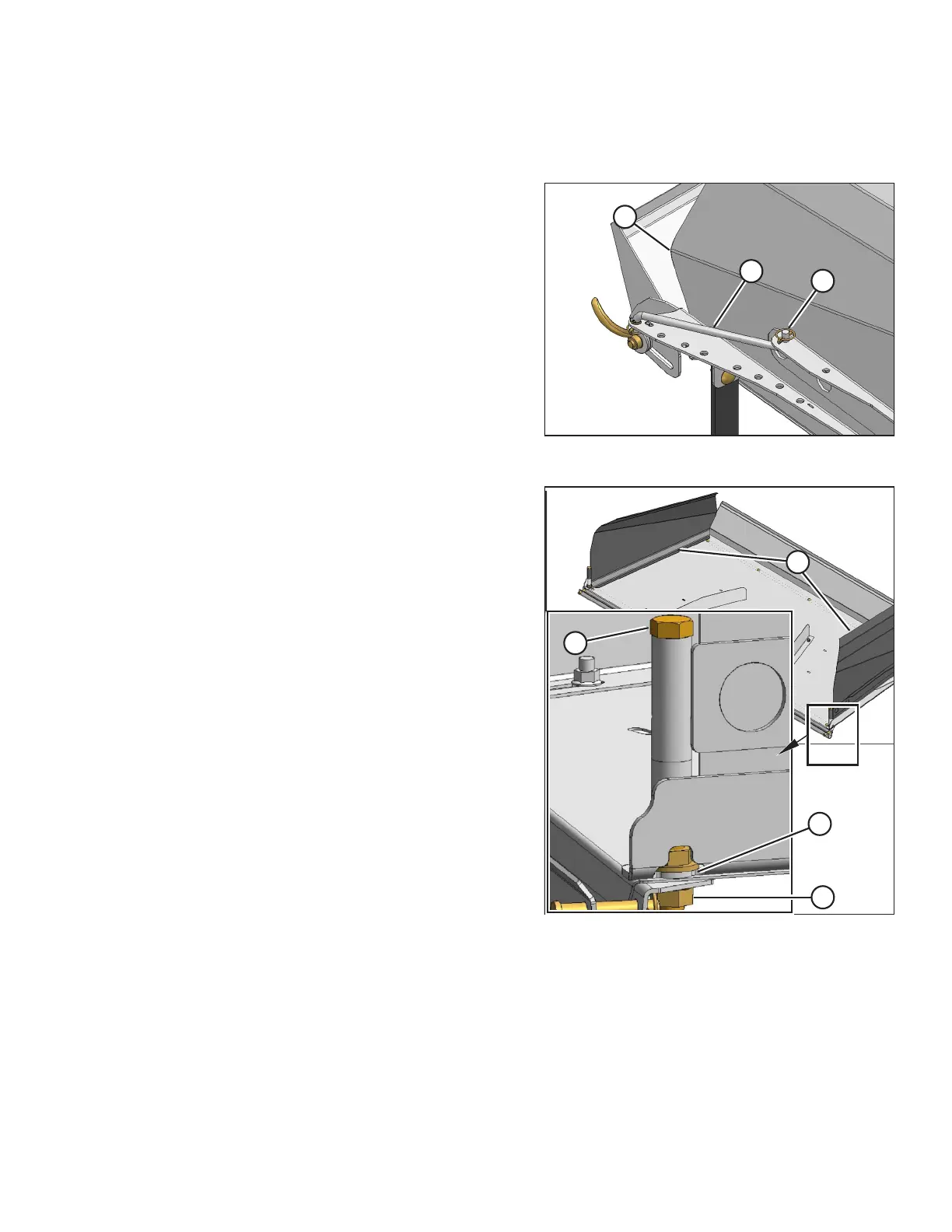

Figure 4.136: Forming Shield
1. Invert the forming shield onto top.
2. Remove lynch pin (A) from adjuster rods (B), and remove
the rods from side deflectors (C).
1005804
A
D
B
C
Figure 4.137: Forming Shield
3. Remove nut (A) from bolt (B), and lift deflector (C) and
washer (D) off the forming shield. Repeat this step for the
other deflector.
