MacDon A40D - Page 216

262334 198 Revision A
1002932
A
B

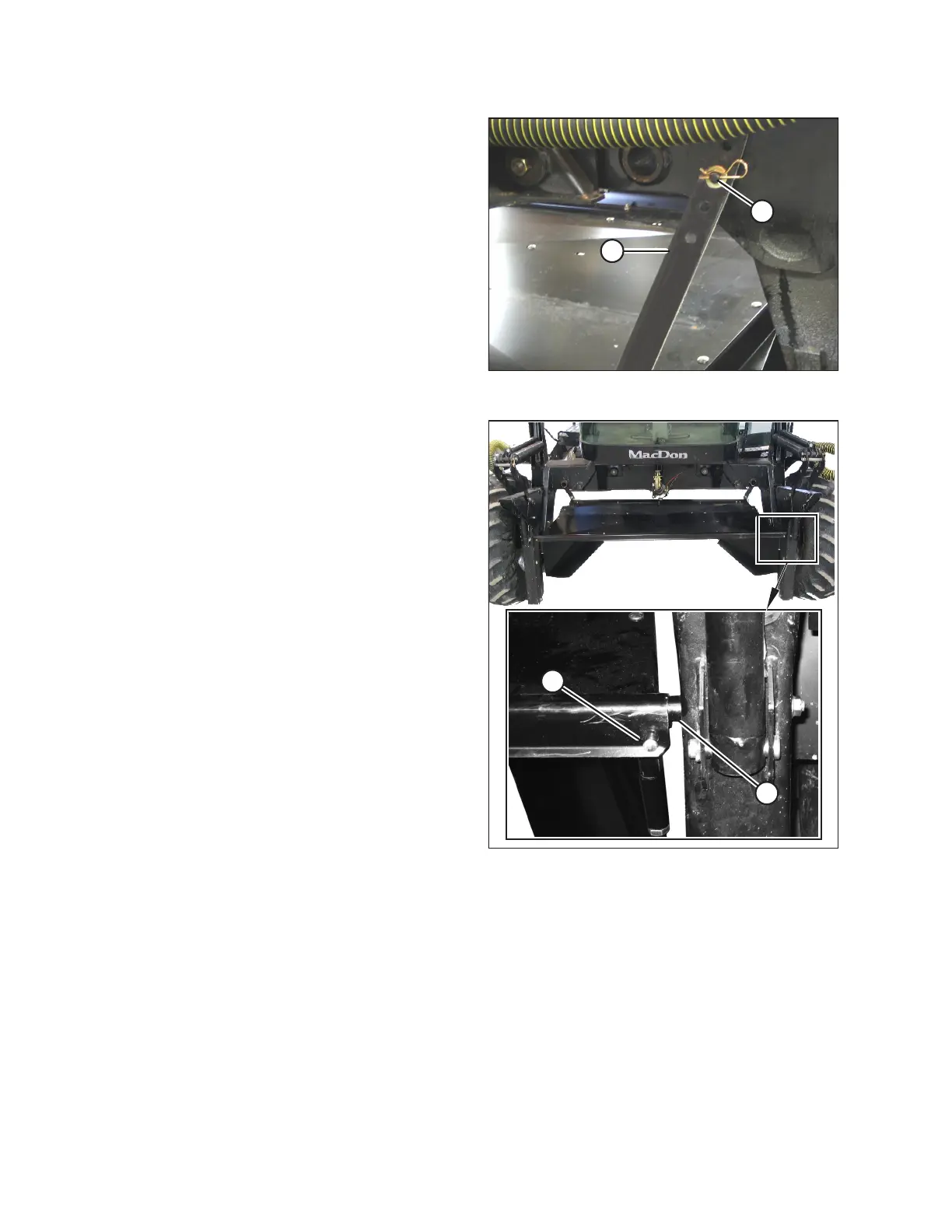

Figure 4.134: Forming Shield Straps
2. Remove hairpins (B), and the washers that secure straps (A)
to the frame.
3. Hold onto the forming shield, and slip the straps off the
pins. Lower the forming shield to the ground.
1005806
B
A
Figure 4.135: Forming Shield Attached to
Windrower Legs
4. Remove two clevis pins (B) from the forward end of the
forming shield.
5. Lift the forming shield off bolts (A) in the windrower legs,
and lower it to the ground. Replace the clevis pins in the
forming shield.
6. Slide the forming shield out from under the windrower, or
drive the windrower away from the forming shield.
MAINTENANCE AND SERVICING
