MacDon A40D - Adjusting Auger Fore-Aft Position

262334 80 Revision A
1005918
B
B
B
A

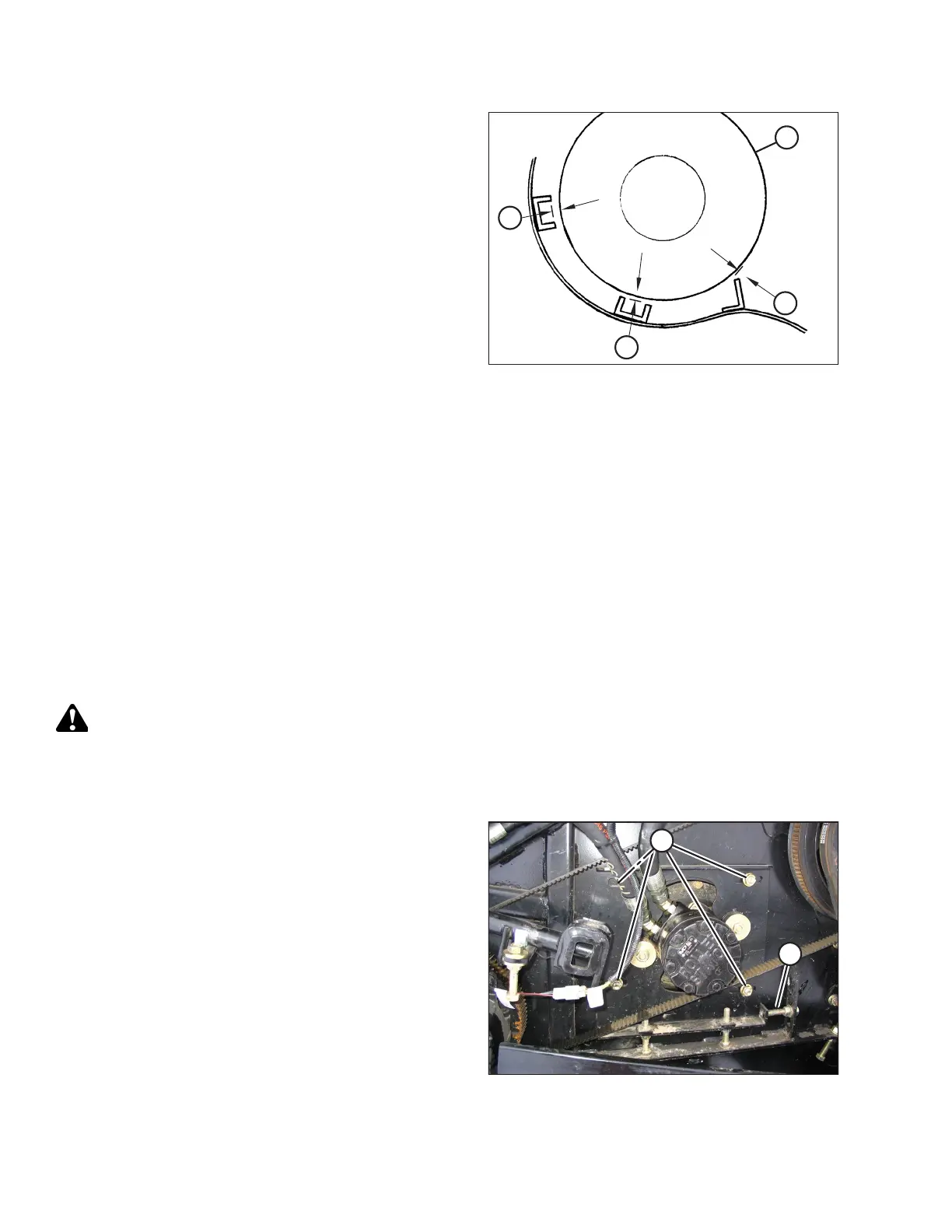

Figure 3.109: Clearance between Auger and Stripper
Bars on the Auger Pan
A - Auger
B - Clearance 1–4 mm (1/32–5/32 in.)
NOTE:
In heavier crops, it may be necessary to remove the front stripper bar for smoother crop flow across the auger. However,
the bottom and the rear stripper bars must remain in place. Refer to 4.13 Stripper Bar, page 192.
NOTE:
Auger to stripper bar adjustment is most accurately checked and set with the header in the working position.
The auger should clear the stripper bars on the auger pan by approximately 1–4 mm (1/32–5/32 in.). Shimming the stripper
bars may be required. For instructions, refer to 4.13 Stripper Bar, page 192.
Adjusting Auger Fore-Aft Position
Follow this procedure to adjust the auger fore-aft position.
WARNING
To prevent accidental movement of windrower, return ground speed lever (GSL) to Park, center steering wheel to lock,
shut off engine, and remove key.
1. Shut down the engine, and remove the key from the ignition.
1005616
A
B
Figure 3.110: A40D Left Side
2. Open the left endshield.
3. Loosen four nuts (A).
4. Loosen the jam nut on adjuster bolt (B), and turn bolt (B) to
adjust the auger fore-aft position.
5. Tighten the jam nut.
6. Tighten nuts (A).
