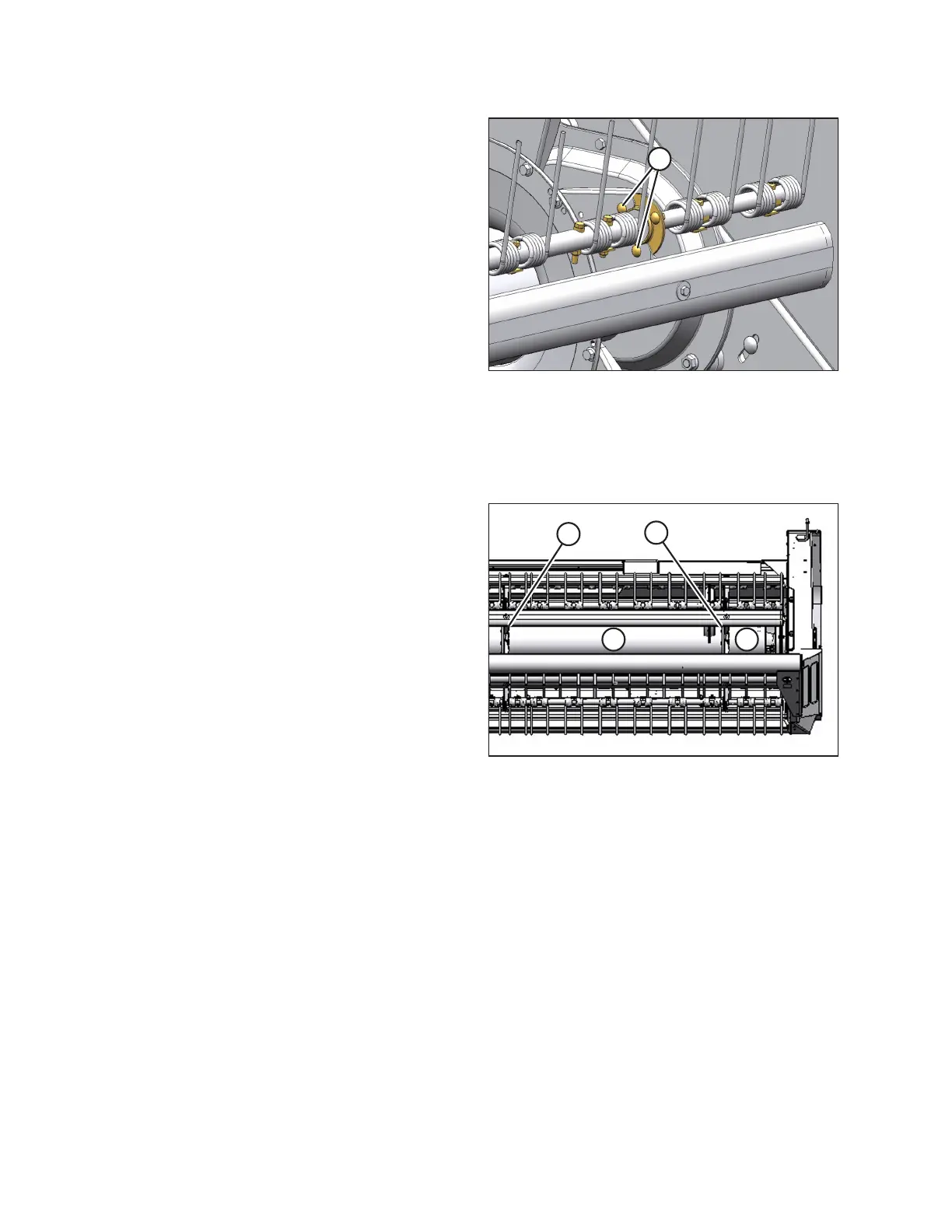

Figure 4.114: Disc #4
8. Attach the bearing flangettes to the reel arm at discs #3
and #4 with bolts (A). Tighten the bolts to 31–36 Nm
(23–26 lbf·ft).
4.10.4 Replacing Tine and Bearing: Opposite Cam – Section Y
Follow the provided procedure to properly replace the tines and the bearings on the opposite cam at section Y.
1005417
A
B
Y Z
Figure 4.115: Opposite Cam – Section Y
A - Disc #3 B - Disc #4
Y - Section Y Z - Section Z
The location of center section Y (Y) is shown on the illustration
at right.
